Circuit Resistance Charts

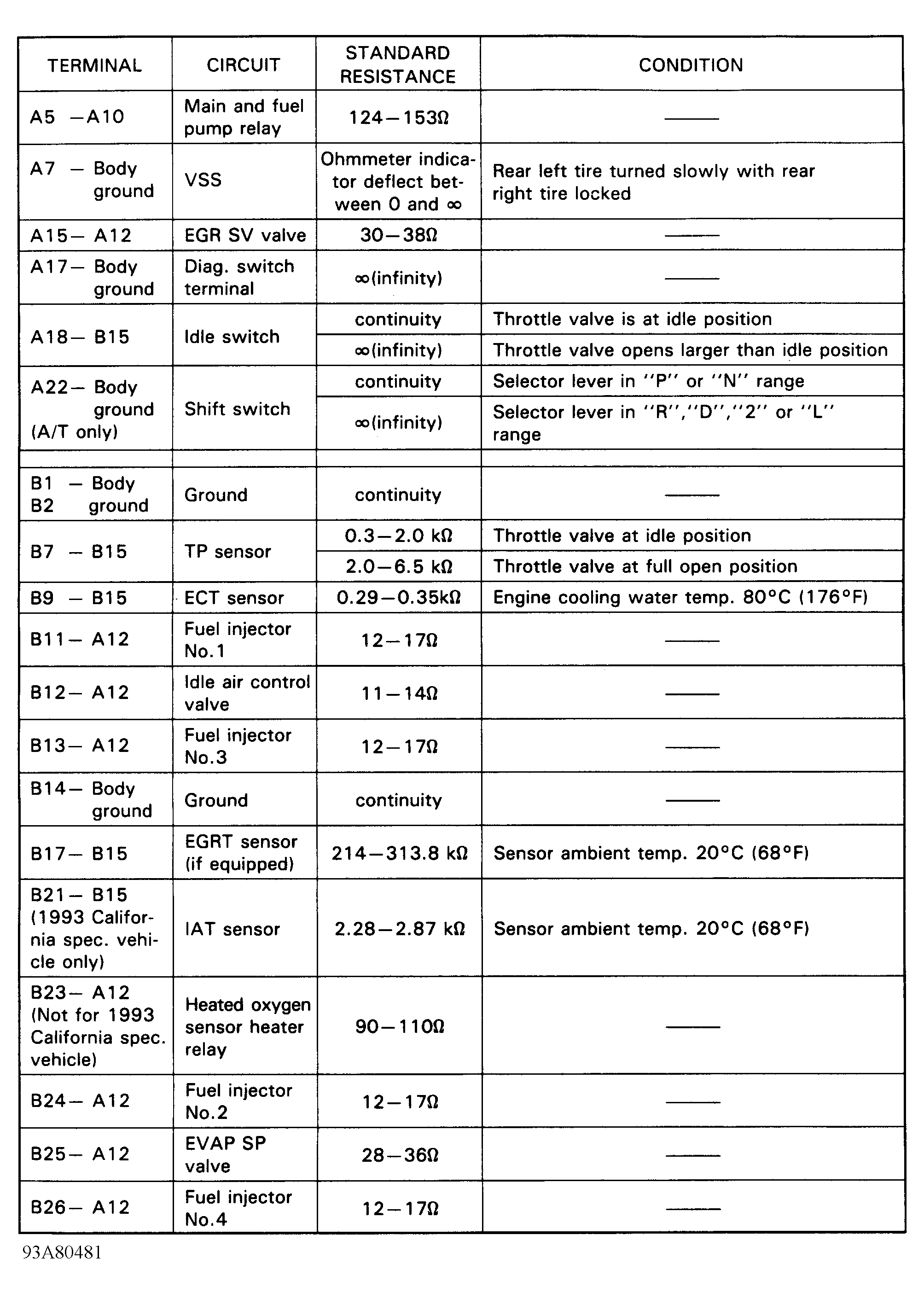

Fig 1: Identifying Circuit Resistance Chart (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Circuit Resistance Chart (Sidekick MPI)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Identifying Circuit Resistance Chart (Sidekick TBI)

Courtesy of SUZUKI OF AMERICA CORP.

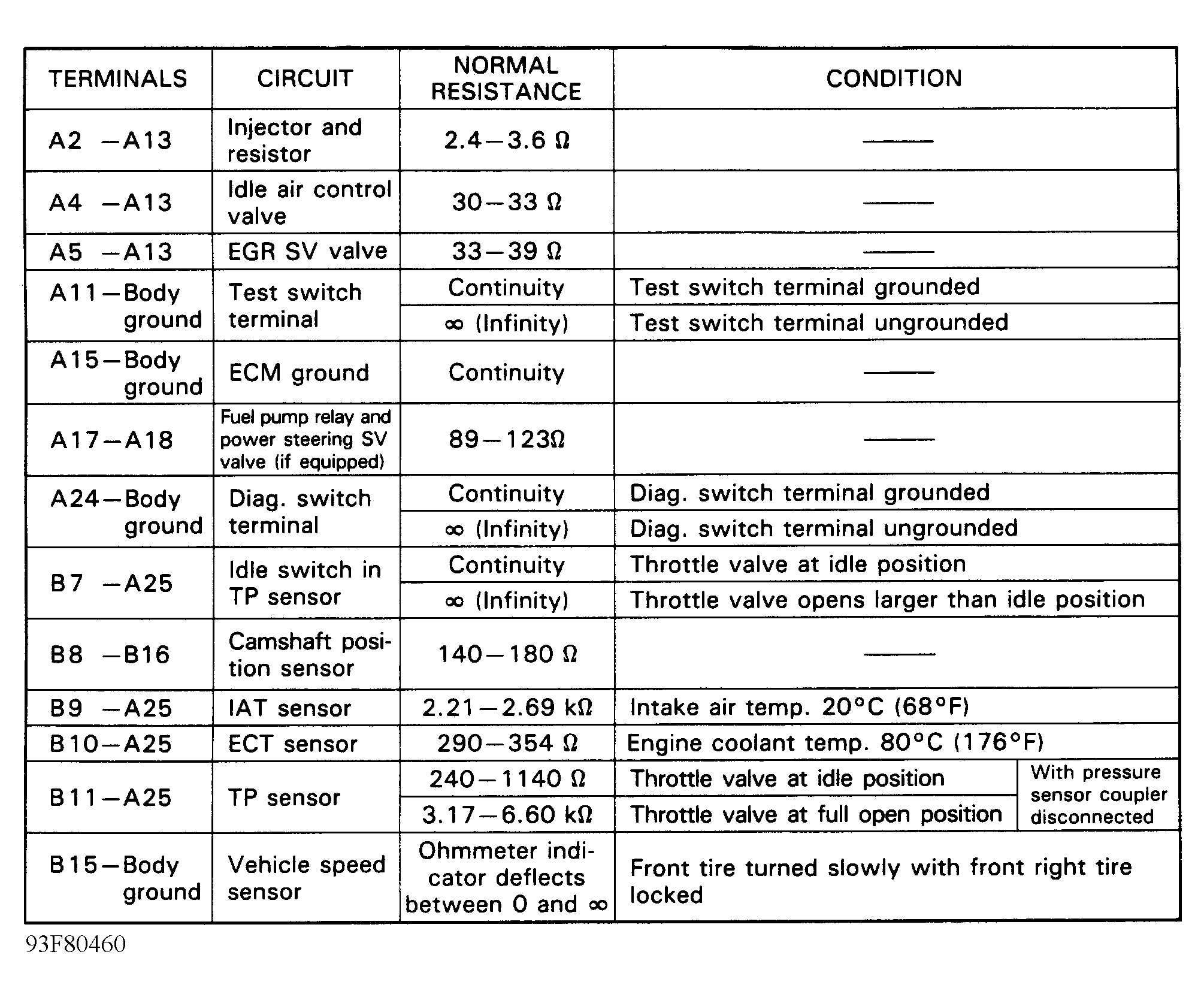

Fig 4: Identifying Circuit Resistance Chart (Swift DOHC)

Courtesy of SUZUKI OF AMERICA CORP.

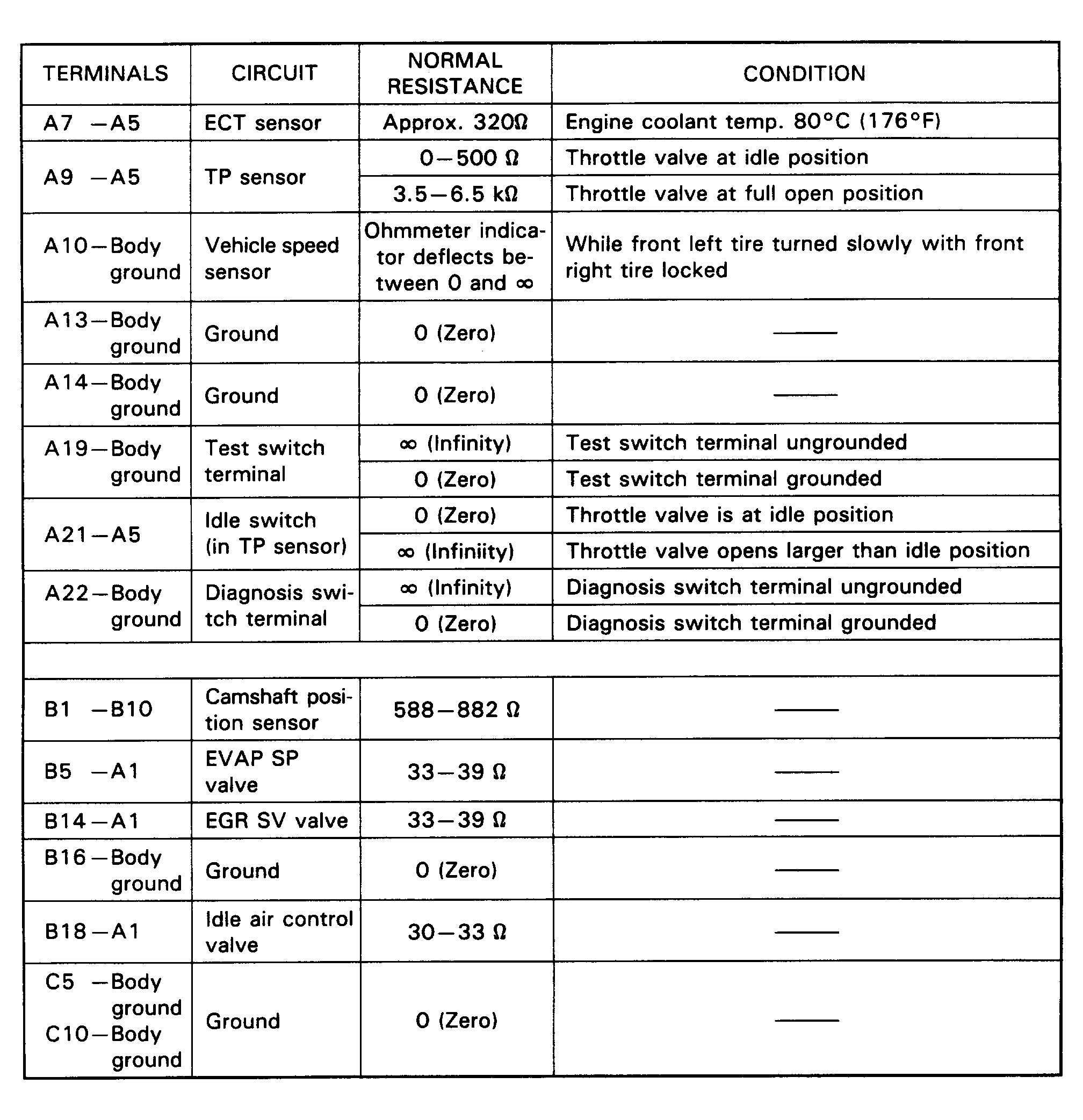

Fig 5: Identifying Circuit Resistance Chart (Swift SOHC)

Courtesy of SUZUKI OF AMERICA CORP.
