Code 13 - Oxygen Sensor Circuit

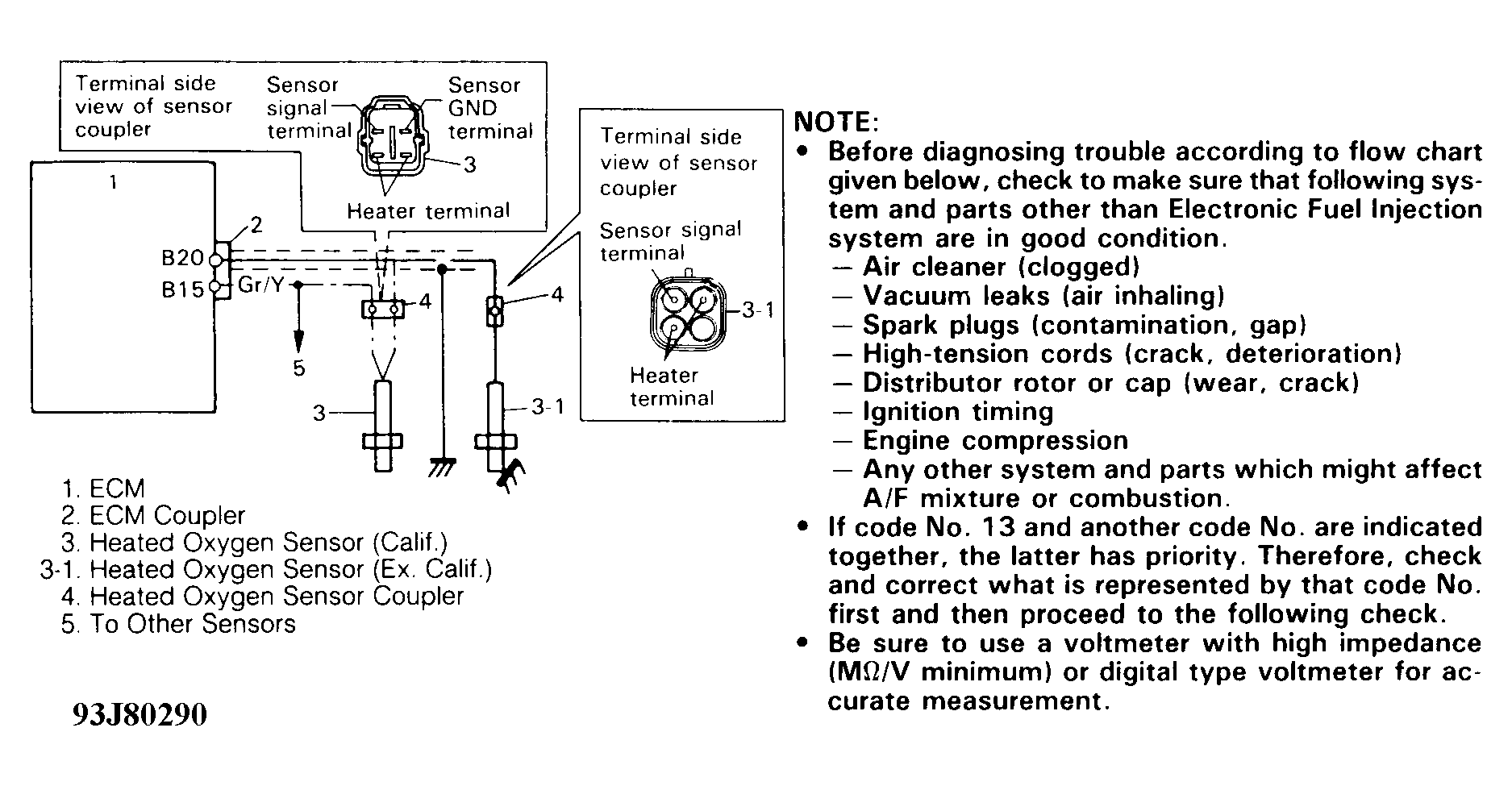

Fig 1: Code 13 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

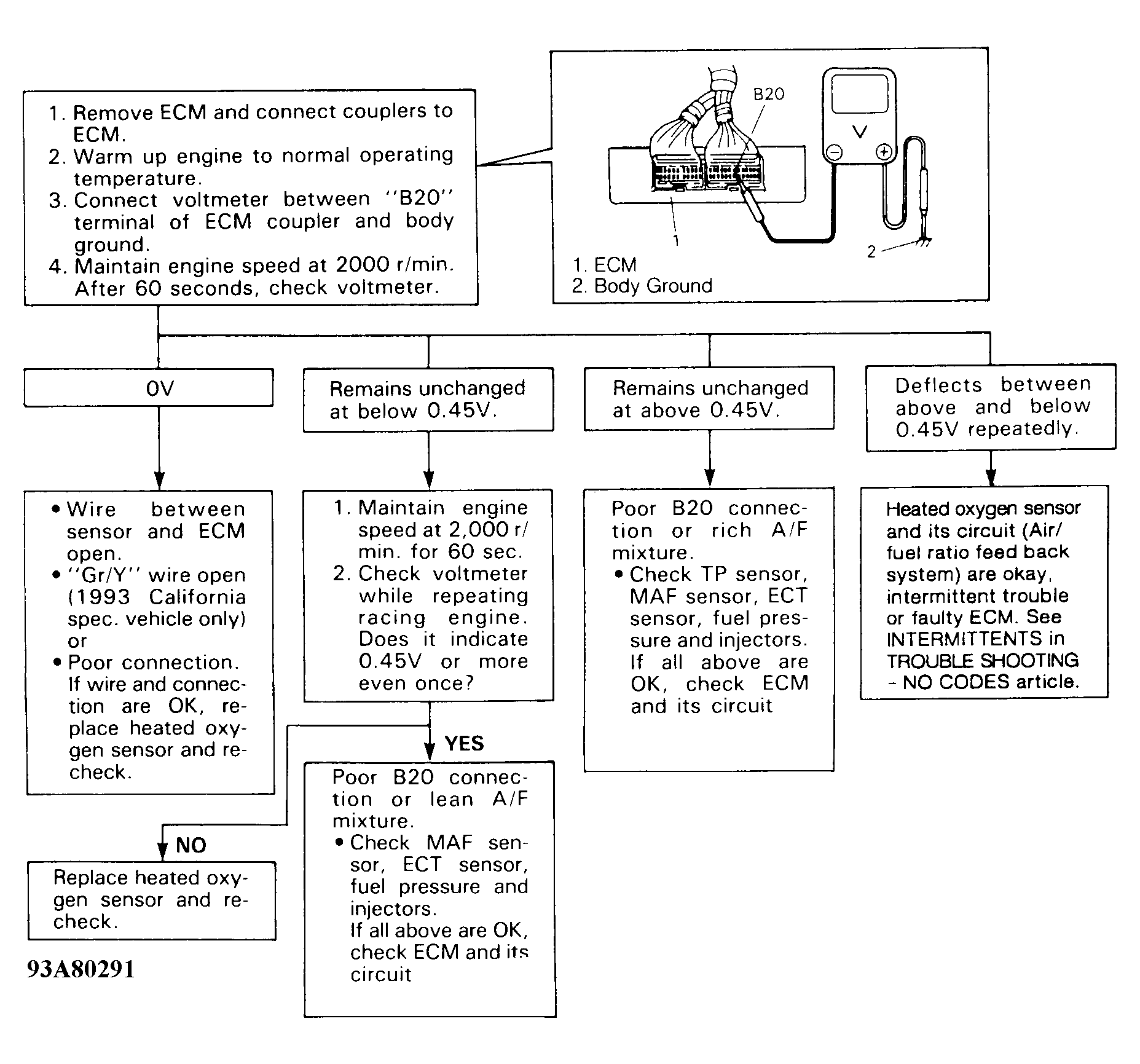

Fig 2: Code 13 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
