Code 14 - ECT Sensor, Low Temperature Indicated

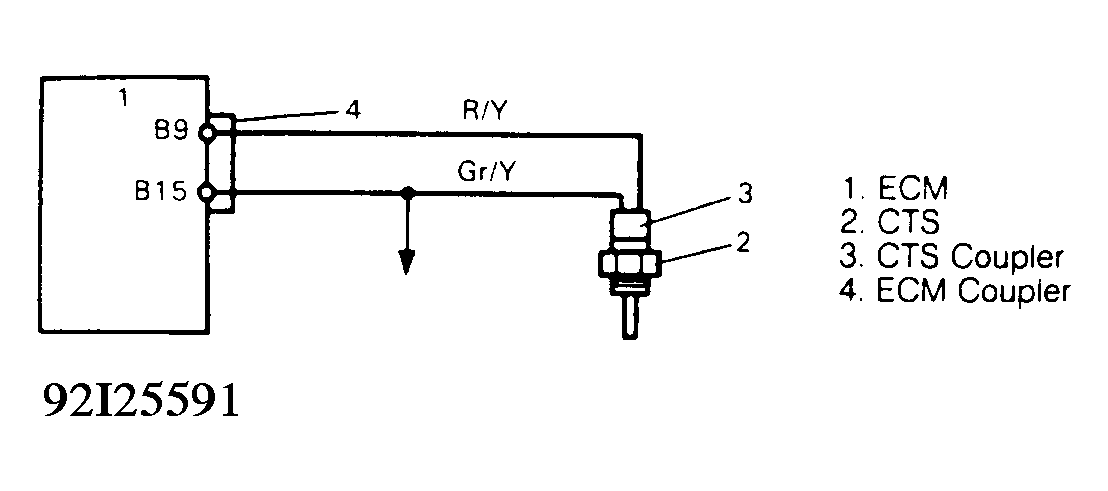

Fig 1: Code 14 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

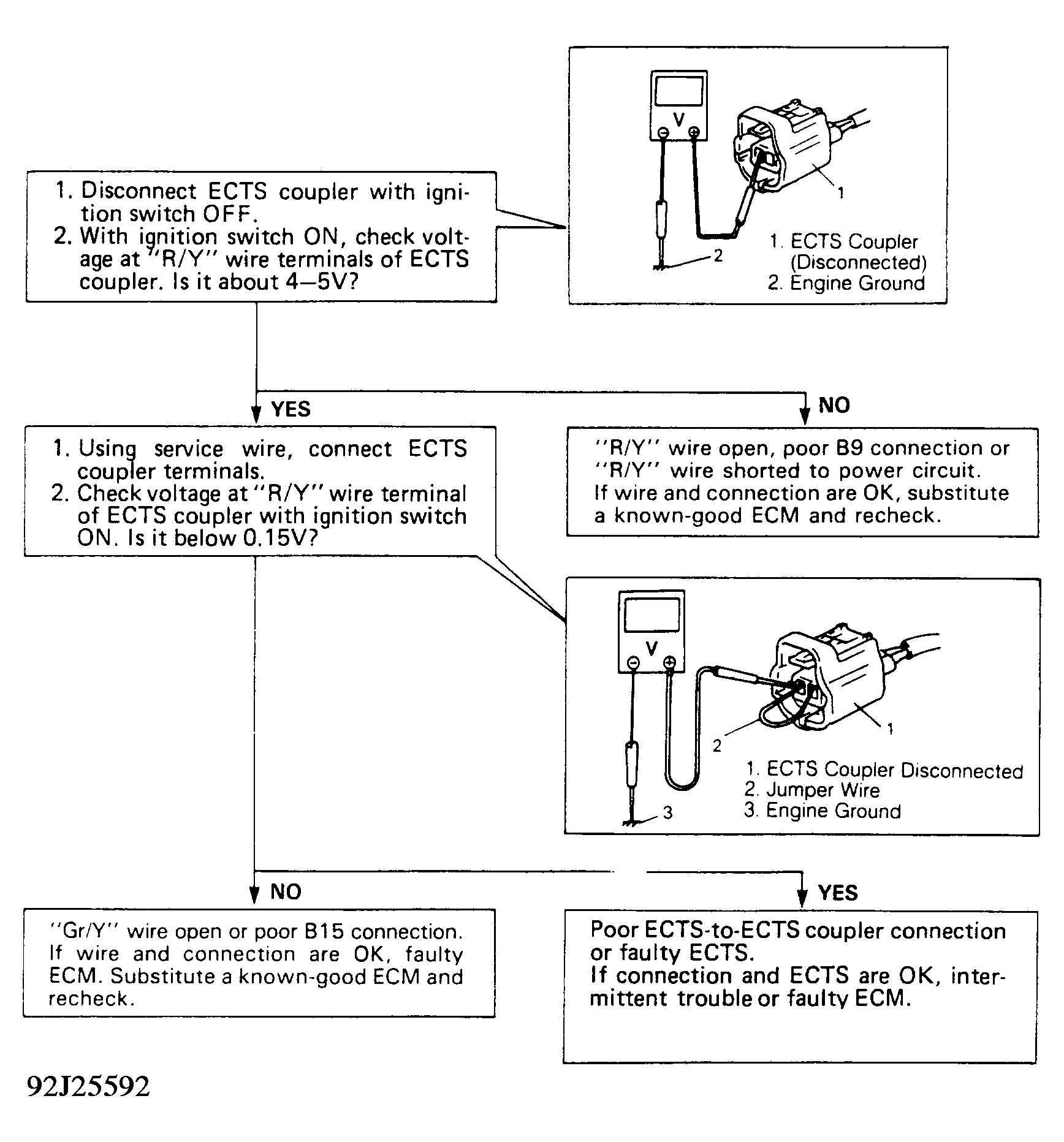

Fig 2: Code 14 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
