Code 15 - ECT Sensor, High Temperature Indicated

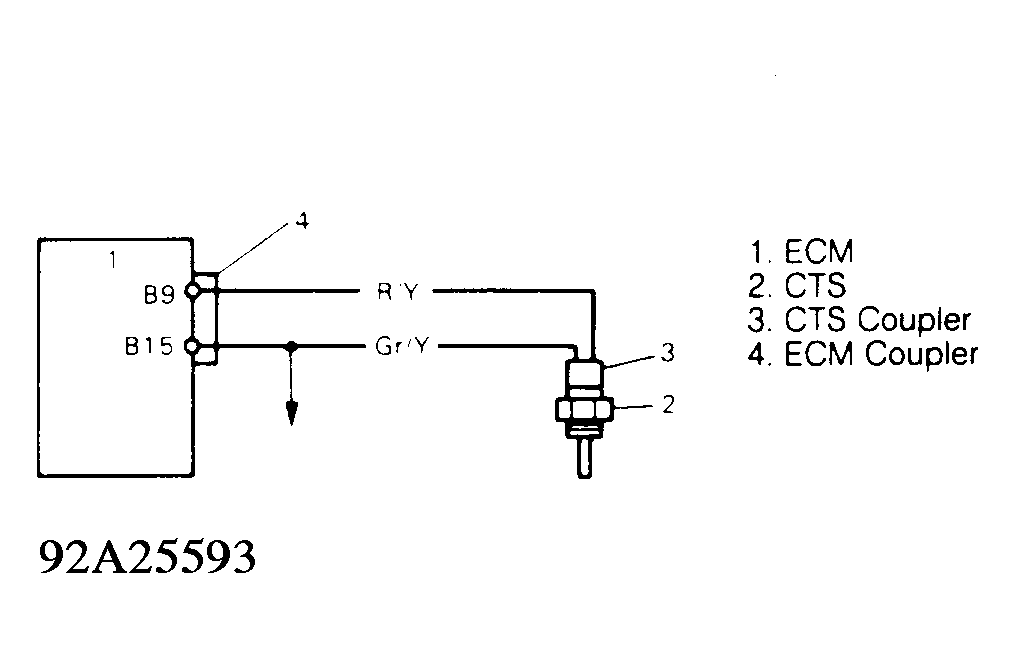

Fig 1: Code 15 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

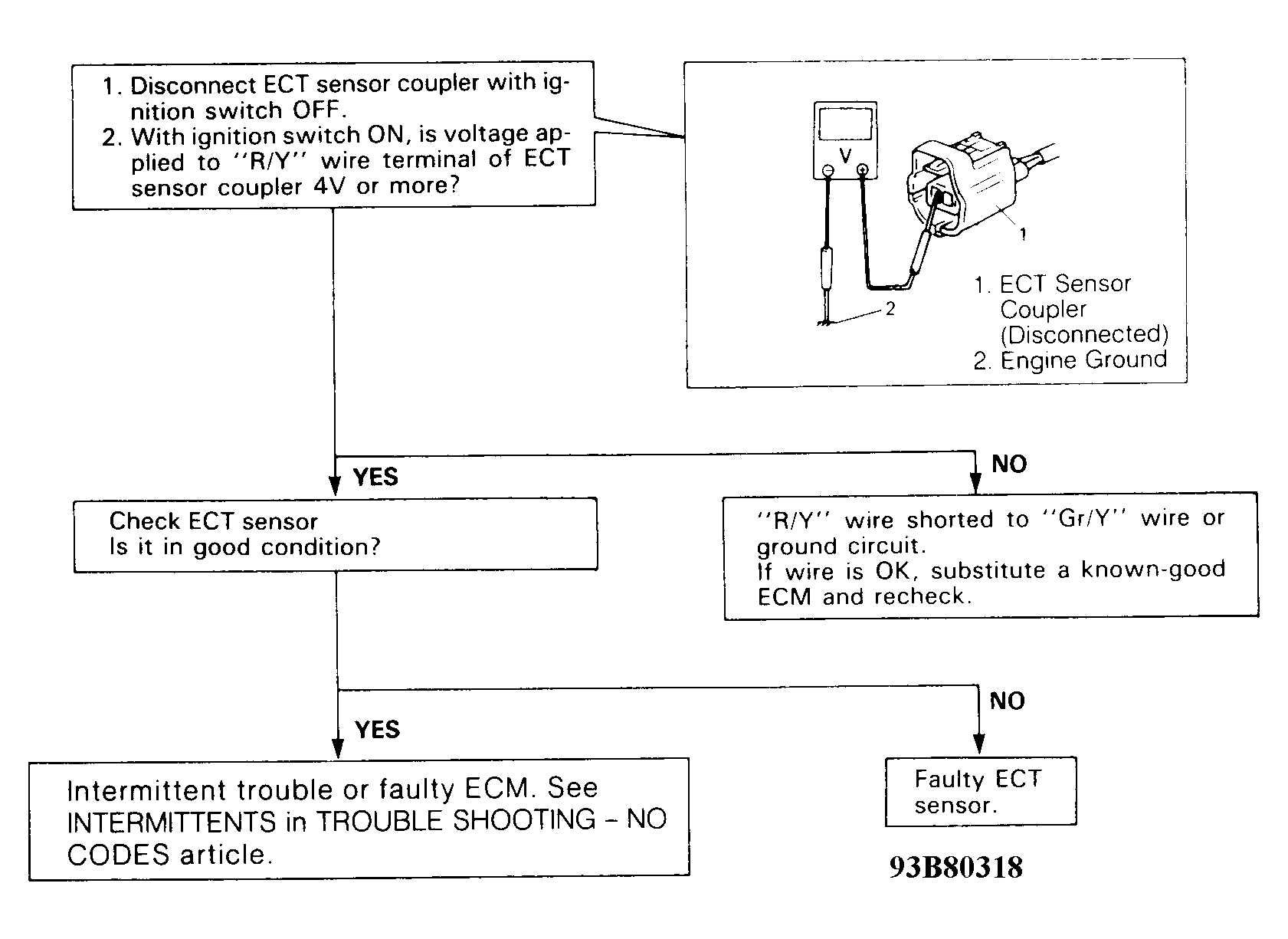

Fig 2: Code 15 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
