Code 24 - Vehicle Speed Sensor

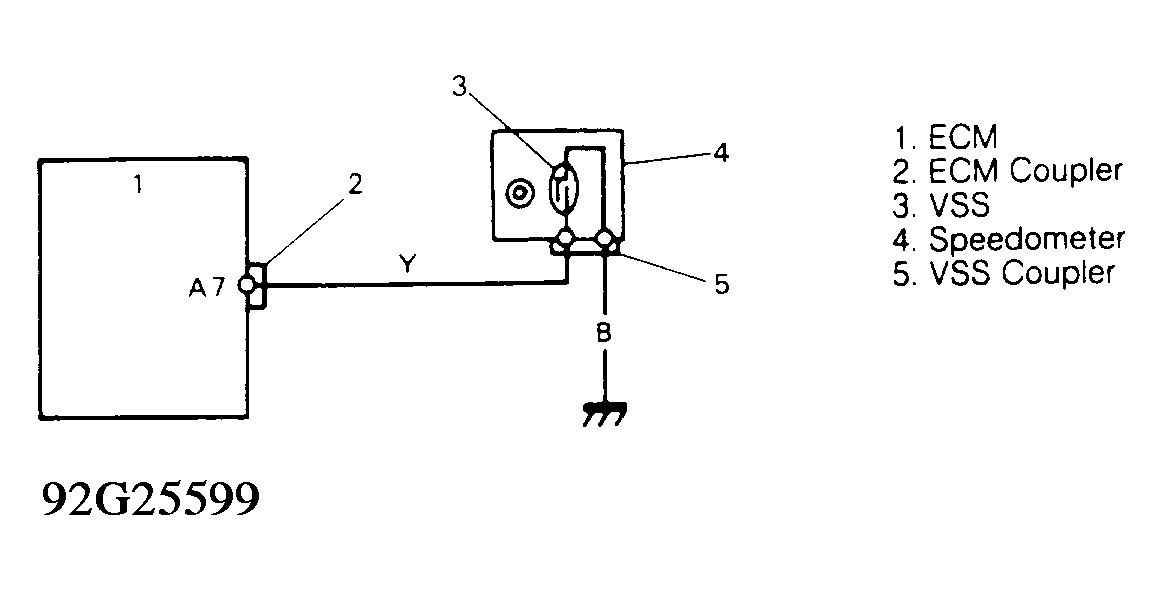

Fig 1: Code 24 - Schematic
G92G25599Courtesy of SUZUKI OF AMERICA CORP.

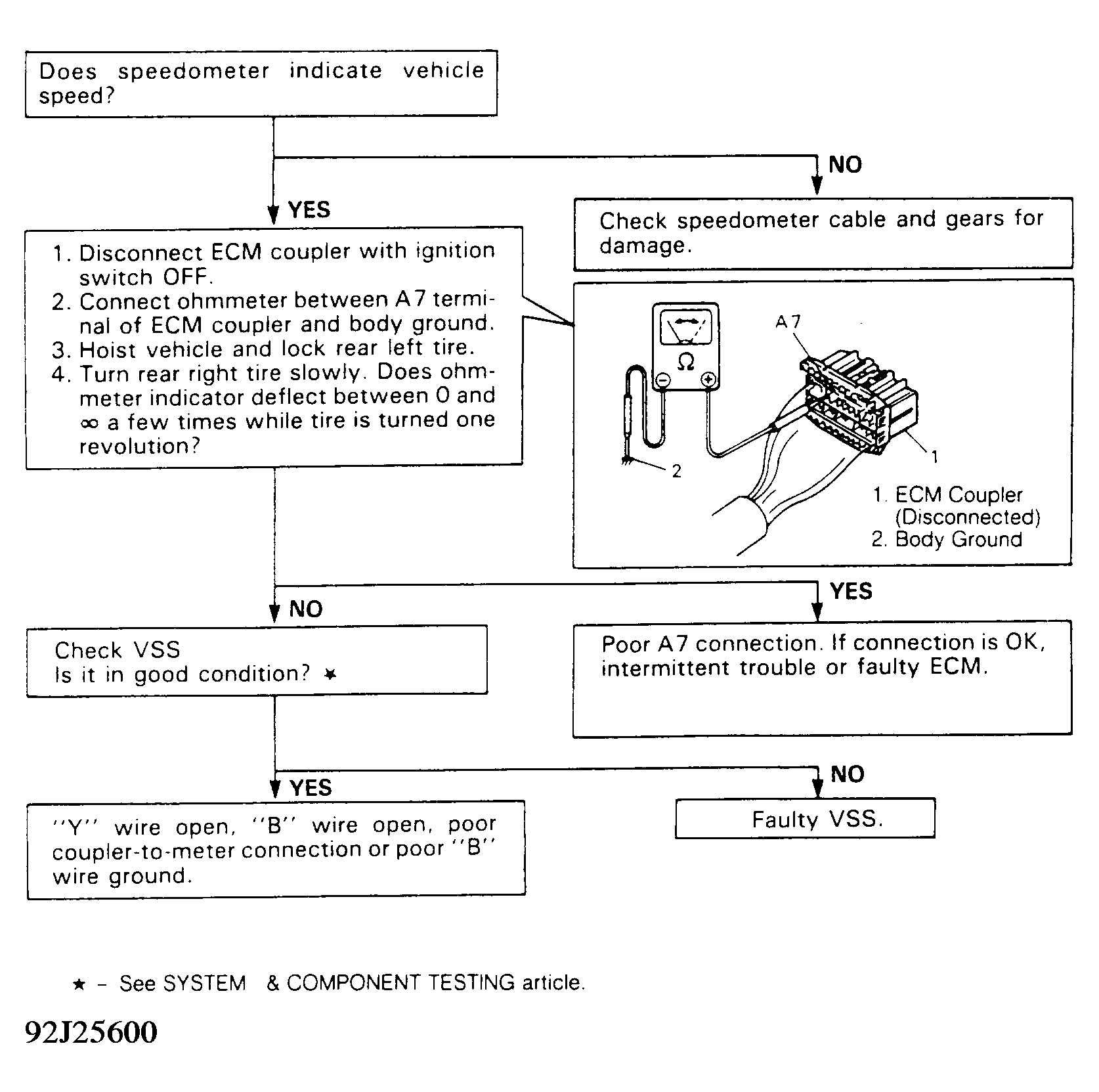

Fig 2: Code 24 - Diagnostic Flowchart
G92J25600Courtesy of SUZUKI OF AMERICA CORP.
