Code 41 - No Ignition Signal

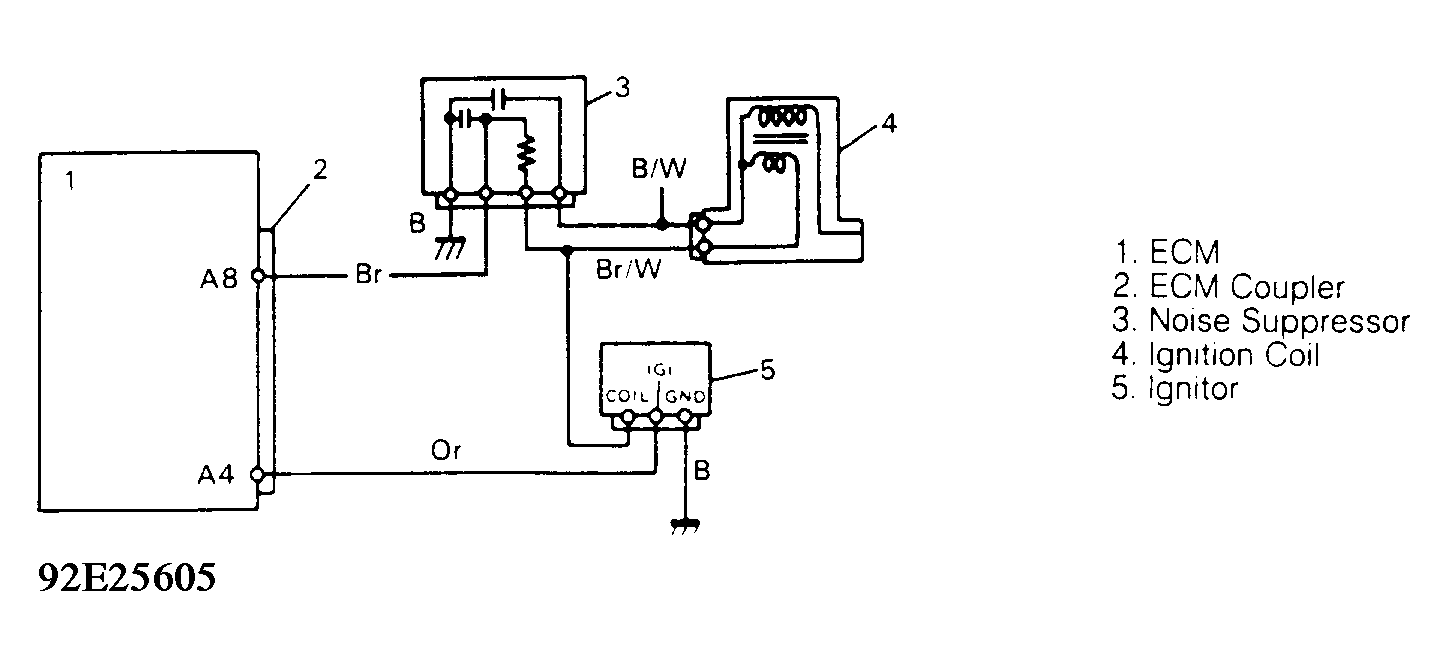

Fig 1: Code 41 - Schematic
G92E25605Courtesy of SUZUKI OF AMERICA CORP.

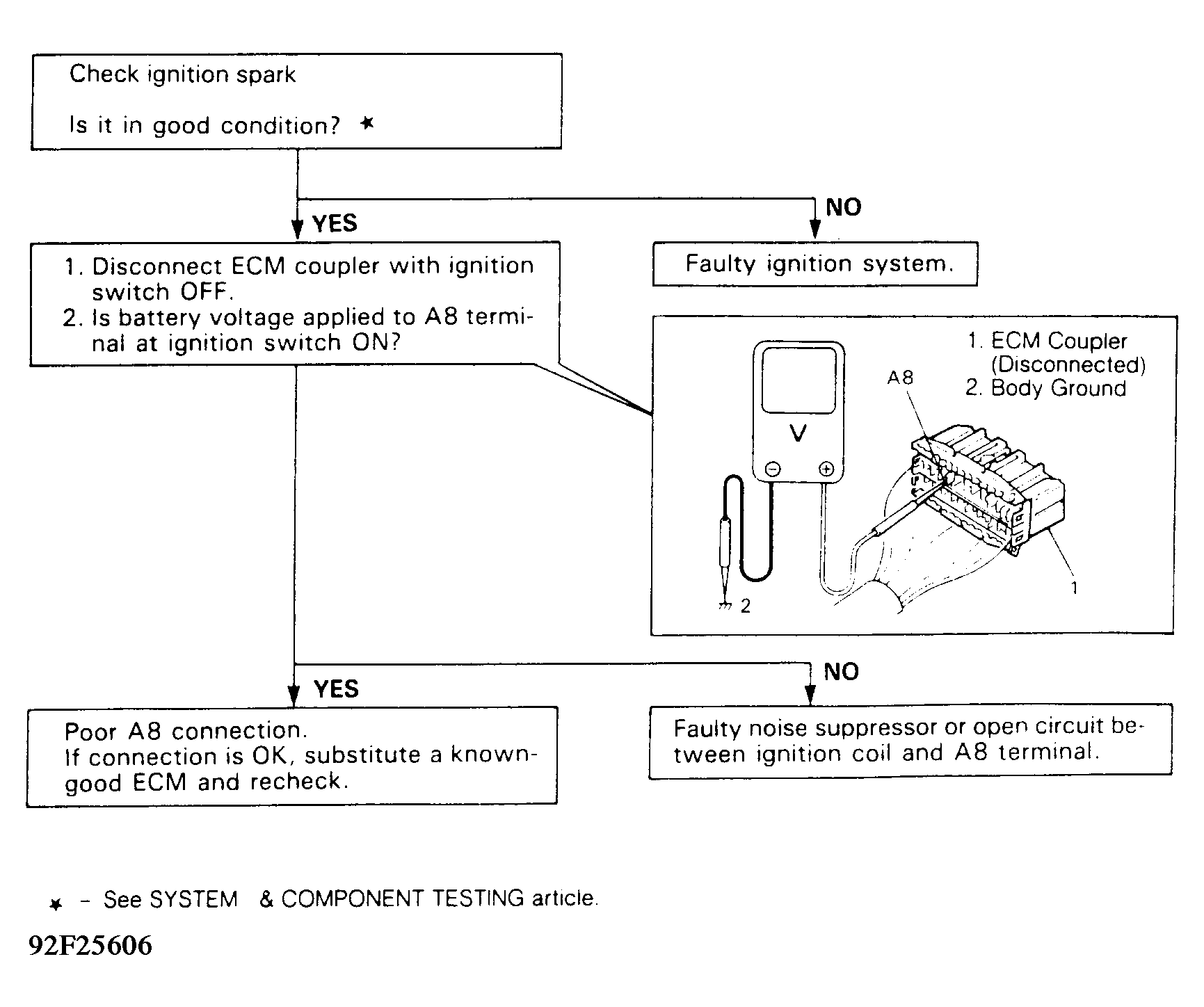

Fig 2: Code 42 - Diagnostic Flowchart
G92F25606Courtesy of SUZUKI OF AMERICA CORP.
