Code 42 - Crank Angle Sensor

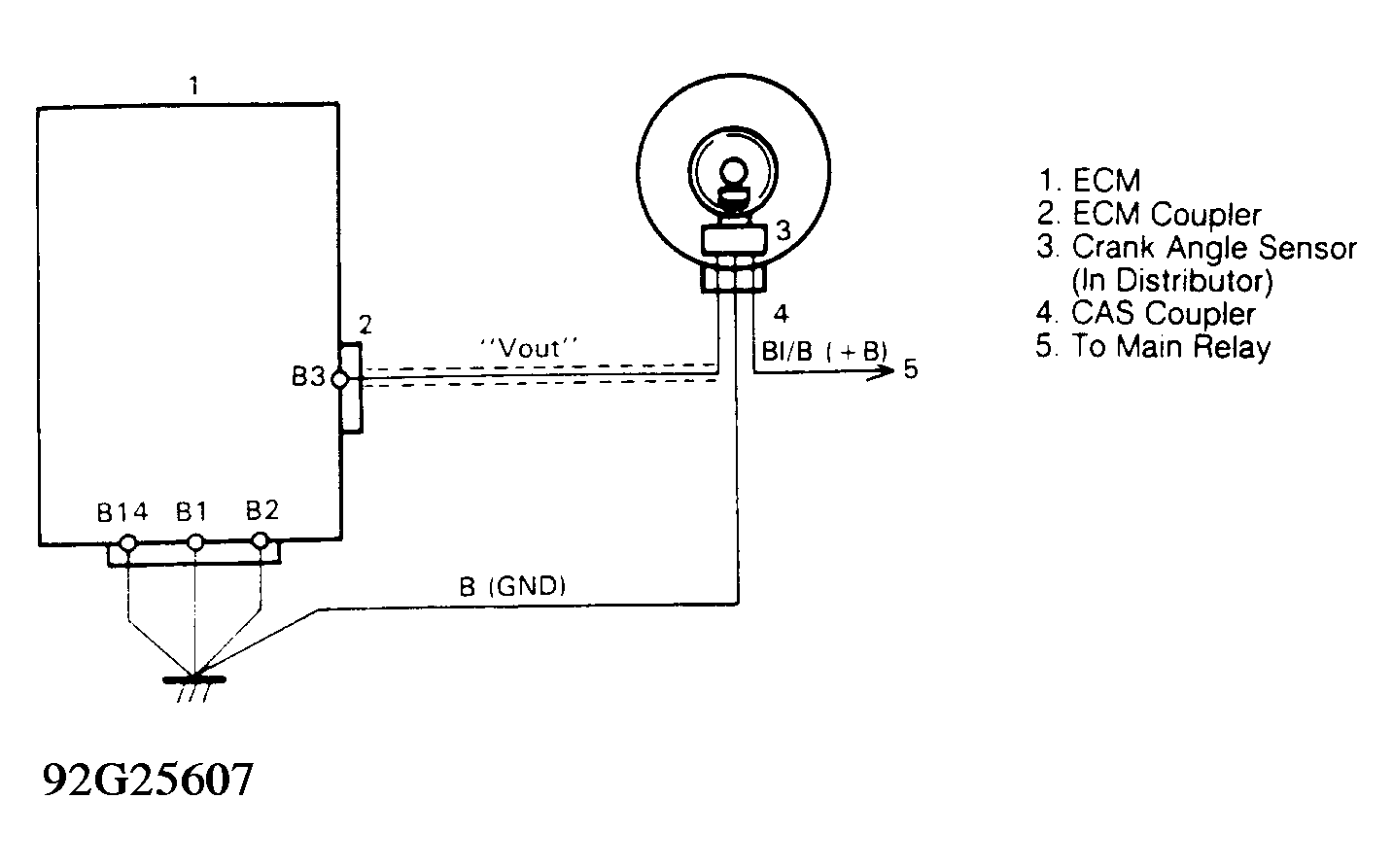

Fig 1: Code 43 - Schematic
G92G25607Courtesy of SUZUKI OF AMERICA CORP.

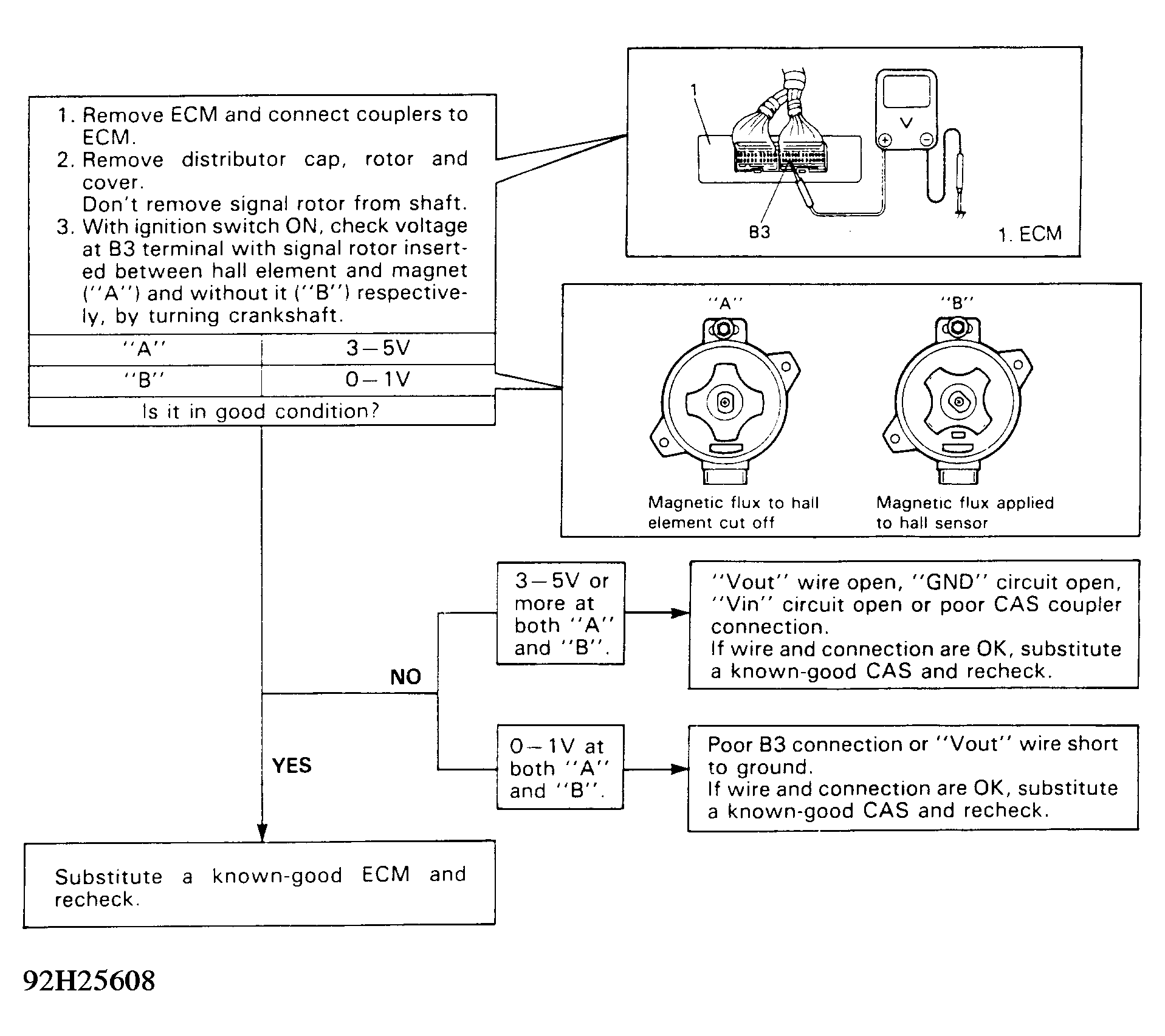

Fig 2: Code 43 - Diagnostic Flowchart
G92H25608Courtesy of SUZUKI OF AMERICA CORP.
