Code 44 - Idle Switch Circuit Open Or MISADJUSTED

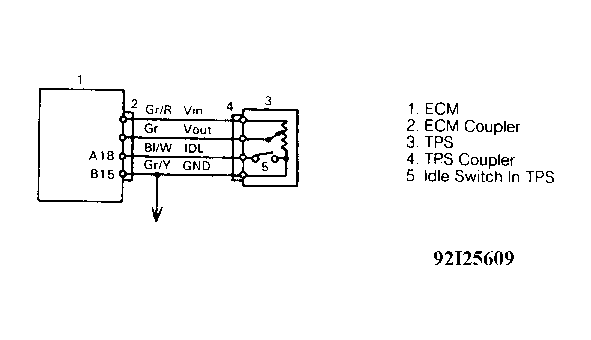

Fig 1: Code 44 - Schematic
Courtesy of SUZUKI OF AMERICA CORP.

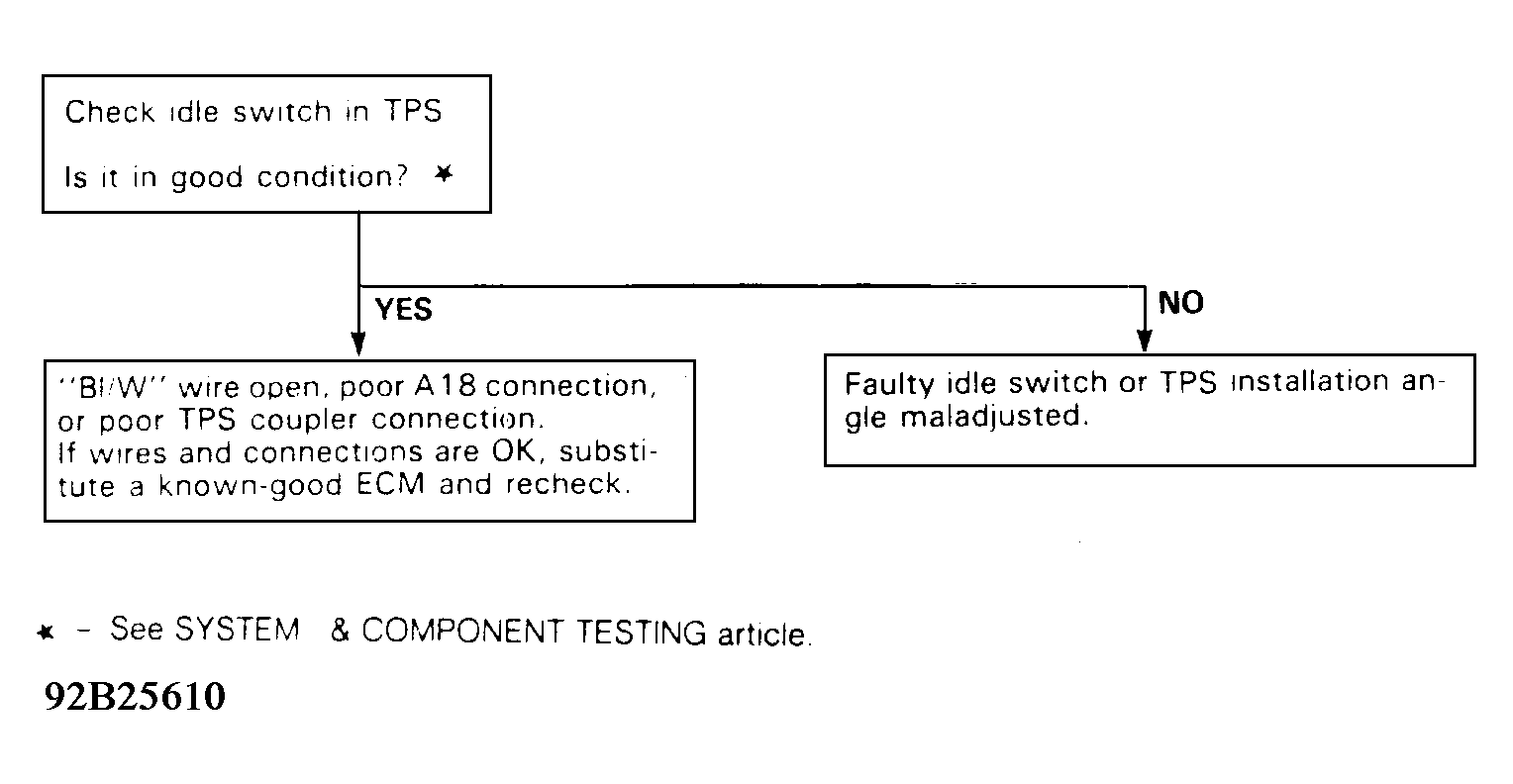

Fig 2: Code 44 - Diagnostic Flowchart
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
