Code 51 - EGR System Circuit Check - CALIFORNIA MPI

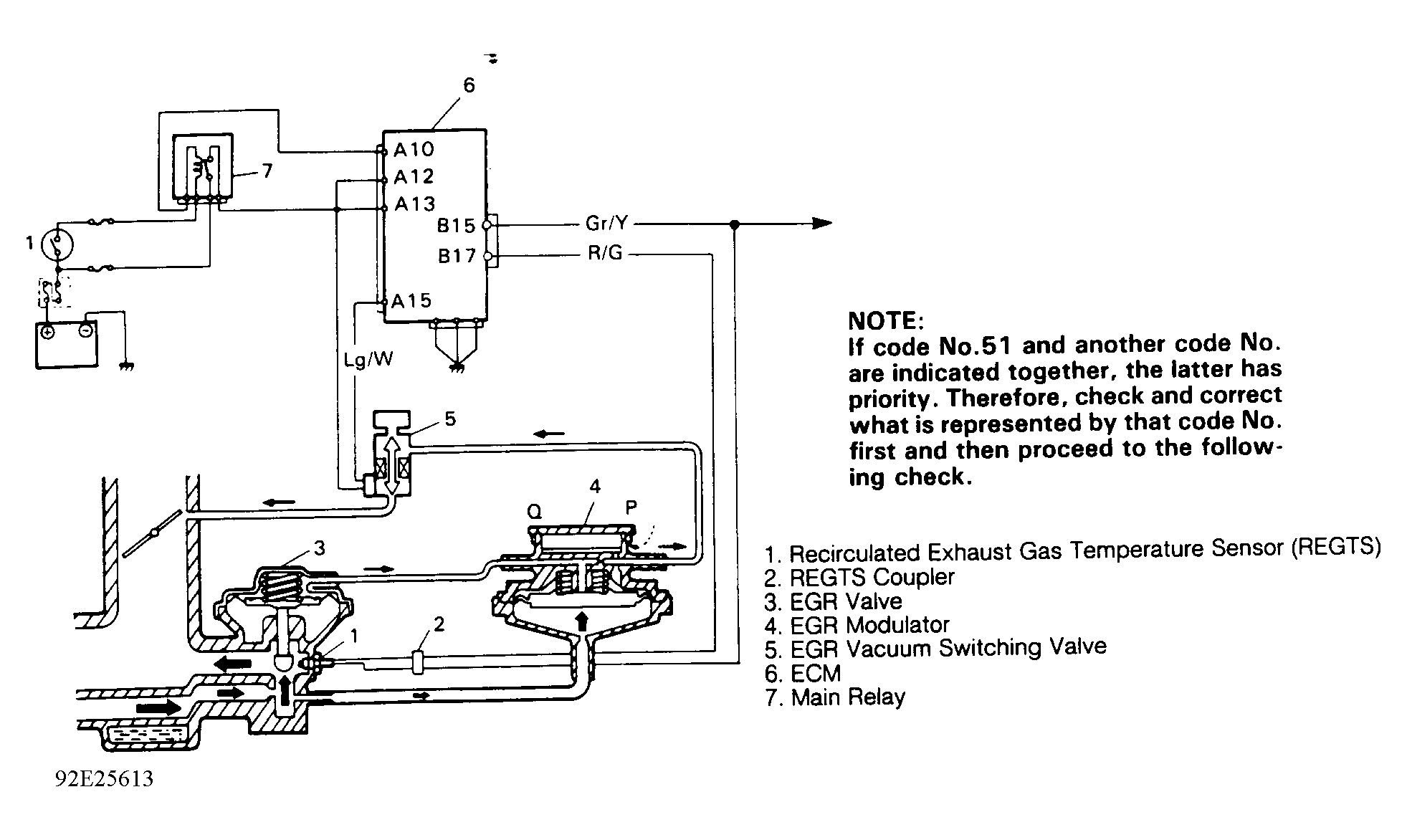

Fig 1: Code 51 - Schematic

Courtesy of SUZUKI OF AMERICA CORP.

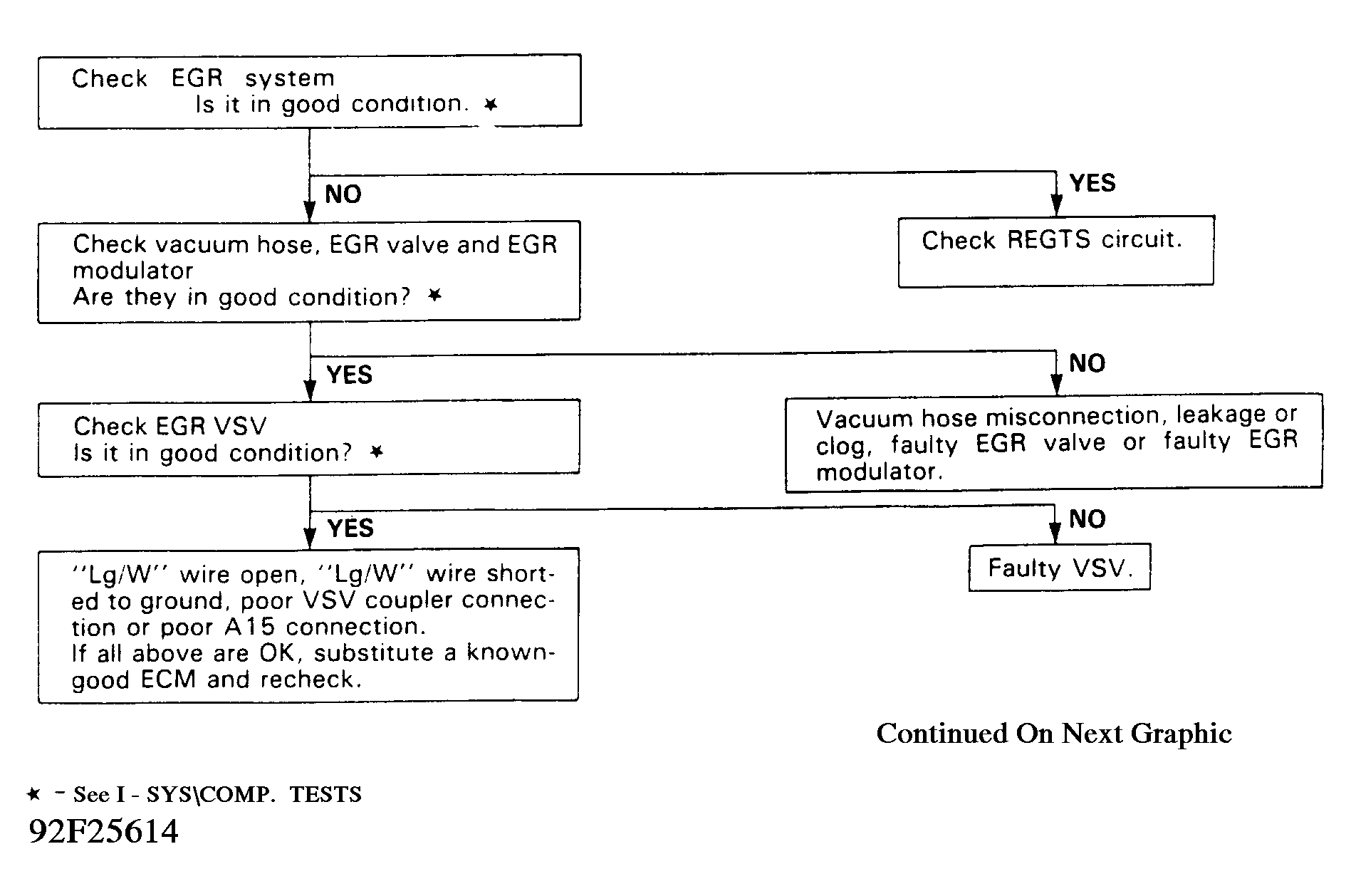

Fig 2: Code 51 - Diagnostic Flowchart (1 of 2)

Courtesy of SUZUKI OF AMERICA CORP.

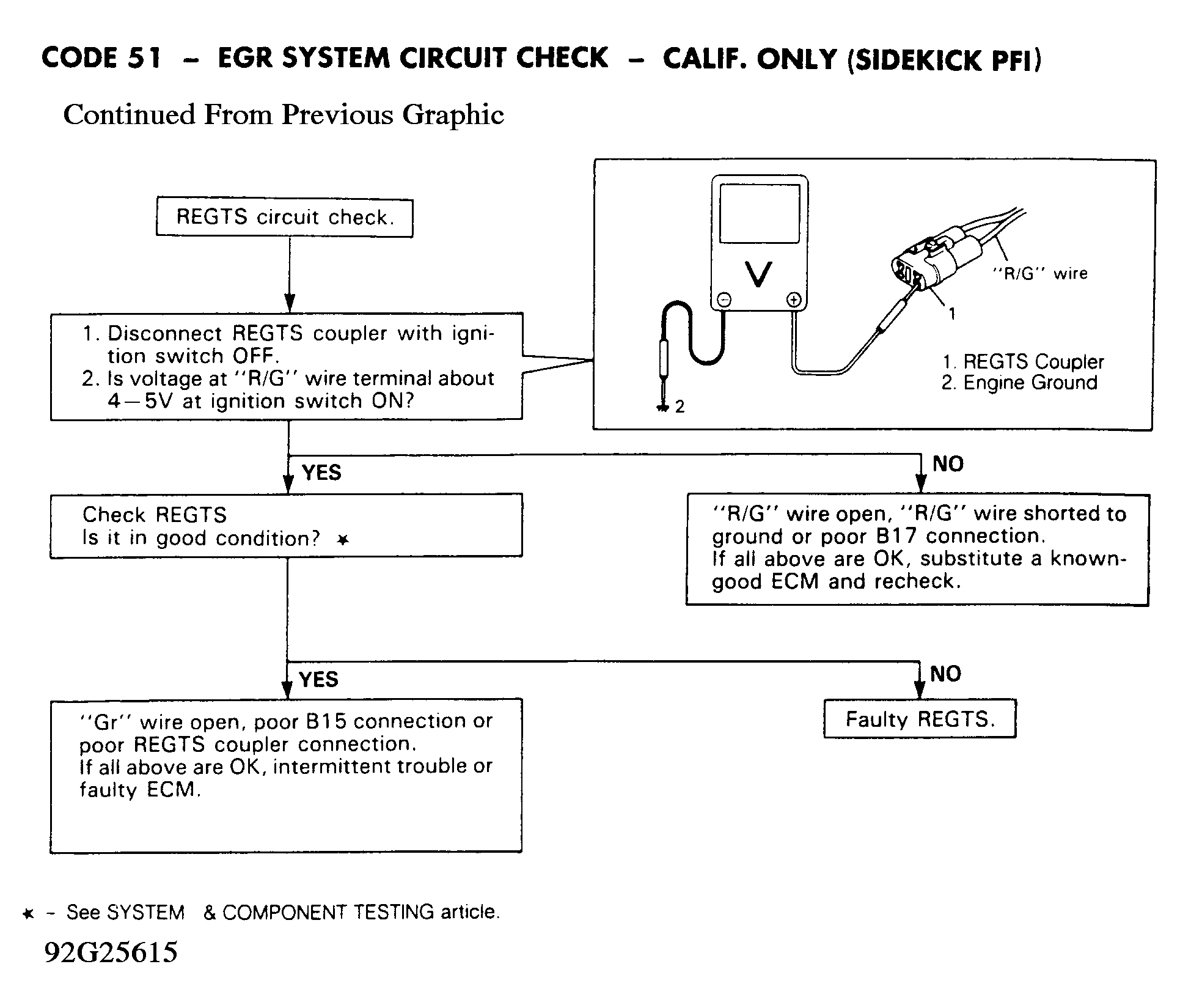

Fig 3: Code 51 - Diagnostic Flowchart (2 OF 2)

Courtesy of SUZUKI OF AMERICA CORP.
