Control Units

CONTROL UNITS LOCATION

Component Location
Daytime Running Light Control Module (Canada) Behind glove compartment.

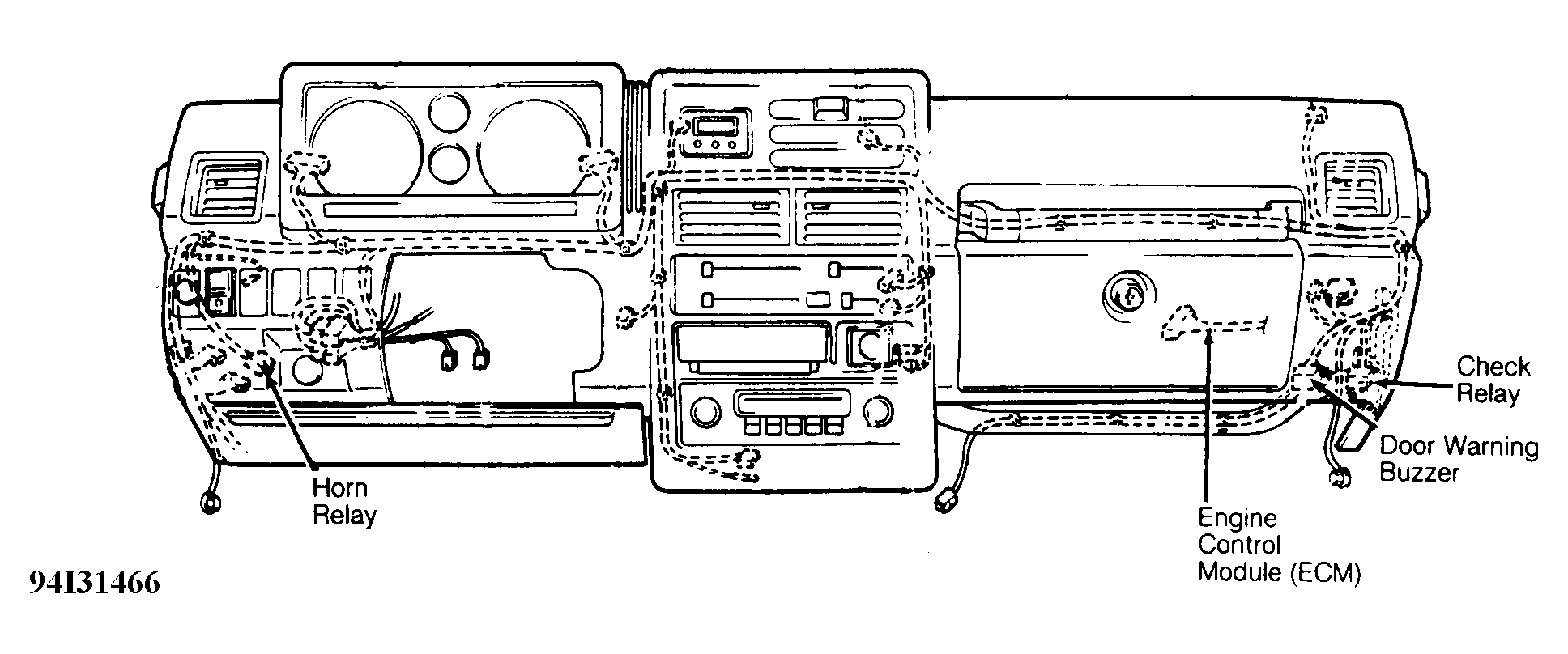

Engine Control Module (ECM) On right side of dash, behind glove box. See Figure & Figure .
