Open Circuit Test

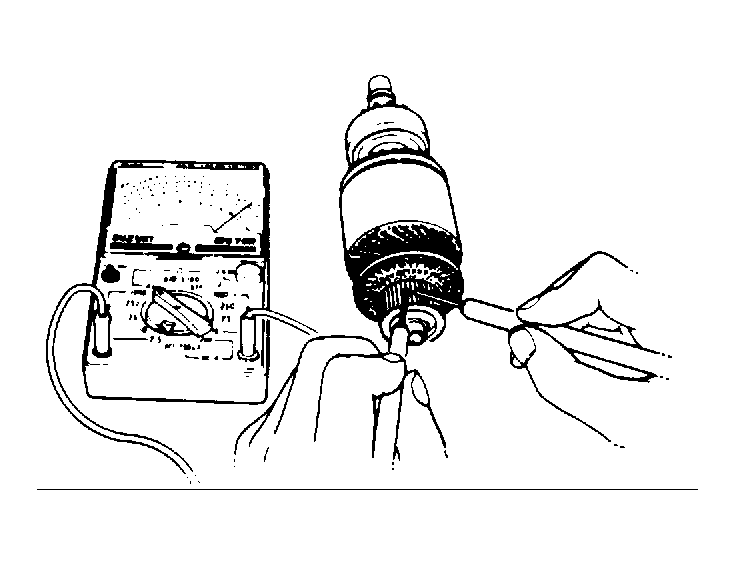

Check for continuity between individual segments of brush end of armature. See Figure . If there is continuity between all segments, armature is good. If there is no continuity, there is an open circuit. Replace armature.
