Field Coil

Using a volt/ohmmeter, check for continuity between brush and bare surface. See Fig 3 . If there is no continuity, field coil is good. If there is continuity, field coil is bad. Replace field coil.

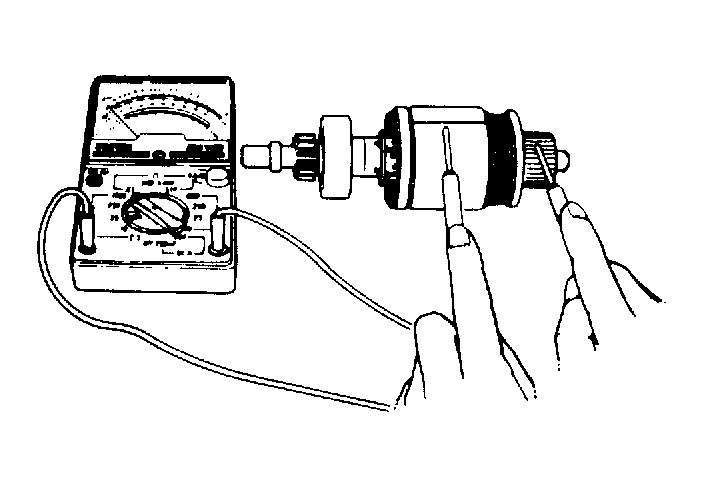

Fig 1: Testing Armature For Grounds

Courtesy of SUZUKI OF AMERICA, INC.

Fig 2: Testing Armature For Opens

Courtesy of SUZUKI OF AMERICA, INC.

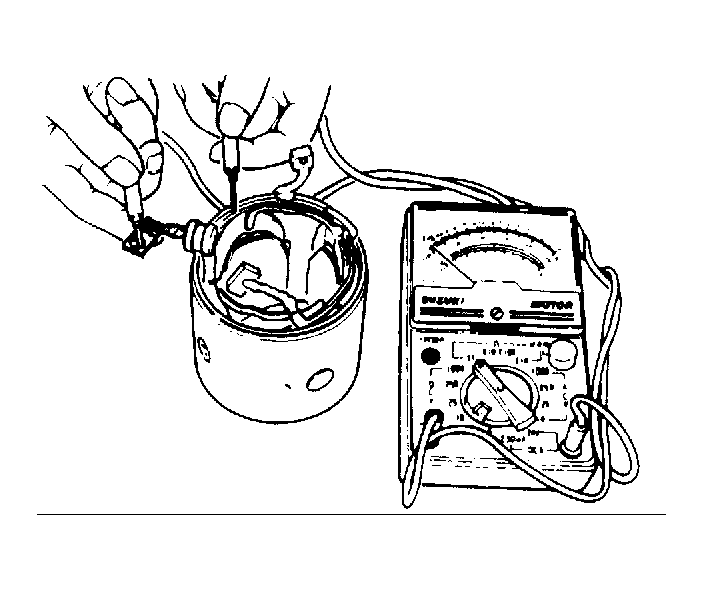

Fig 3: Testing Field Coil Continuity

Courtesy of SUZUKI OF AMERICA, INC.
