Code 14 - ECT Sensor, Low Temperature Indicated

Fig 1: Code 14, Schematic - ECT Sensor Indication Low
G91H18488

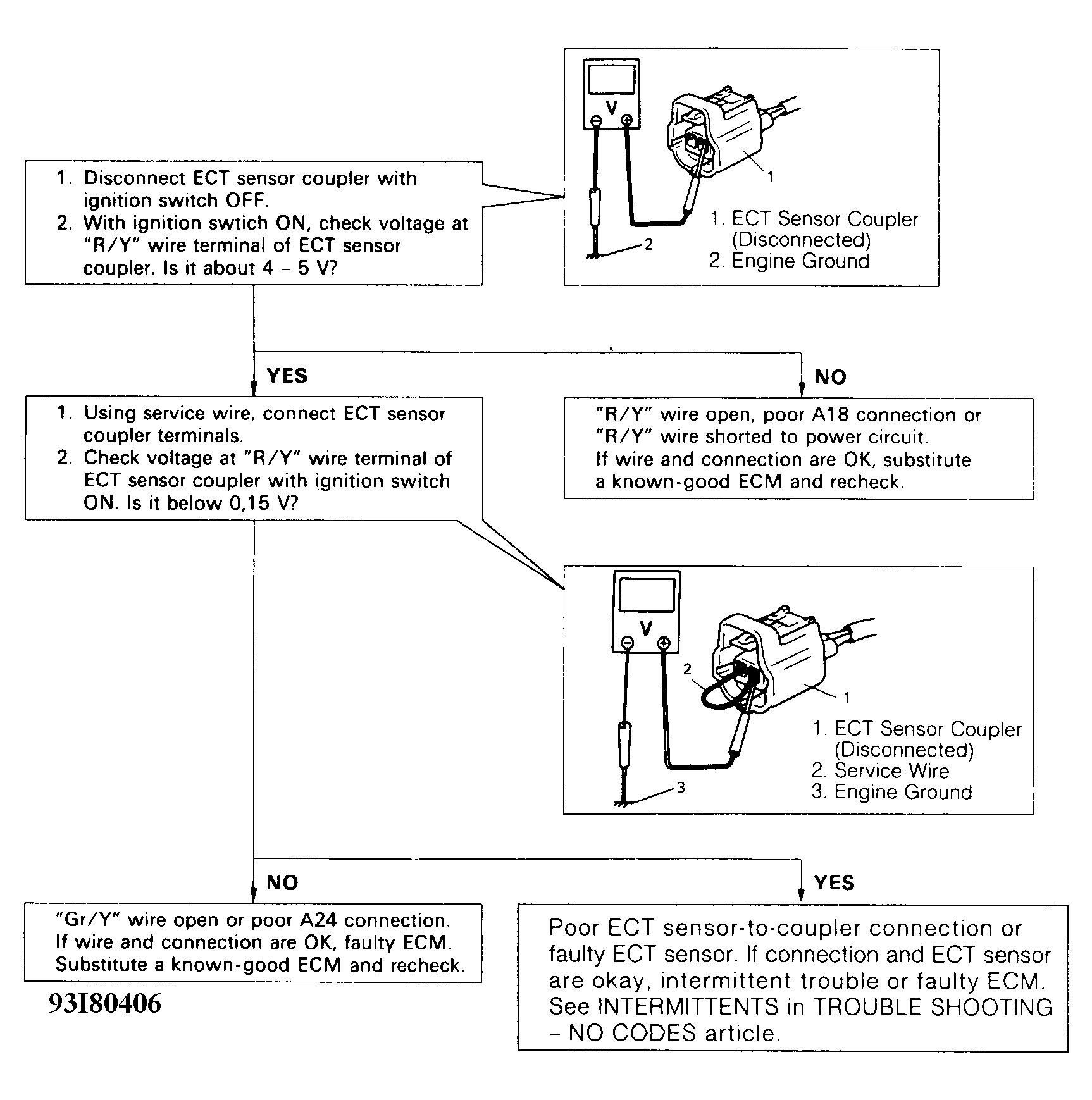

Fig 2: Code 14, Flow Chart - ECT Sensor Indication Low
G93I80406
