Fuel Pump Circuit Test

  1. With ignition on and engine off, listen for operating sound of fuel pump. Pump should run for 2 seconds after switch is turned on. If operating sound is not heard, go to next step. If operating sound is heard for 2 seconds, fuel pump circuit is okay.

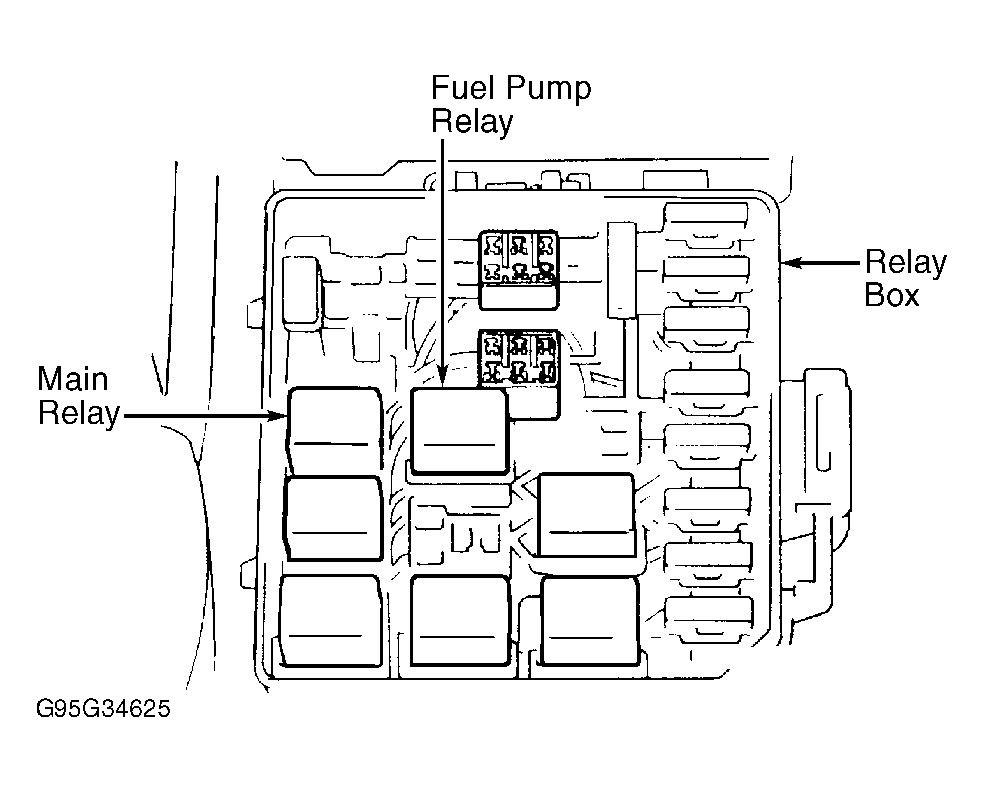

  2. Remove fuel pump relay. See Figure . Install jumper wire between terminals No. 1 and 2. See Figure . If pump operates with ignition on, go to step 4).
  3. If pump does not operate, check continuity of Red/Blue or Pink wire between fuel pump relay and pump (in tank). If continuity exists, replace pump. If continuity does not exist, repair appropriate circuit.
  4. Check fuel pump relay. See RELAYS  under RELAYS & SOLENOIDS. If fuel pump relay is okay, check continuity of Black/White wire between fuel pump relay and fuel pump or Yellow/Black wire between fuel pump relay and ECM connector terminal A7. If circuits are okay, replace ECM.
