Code 24 - Vehicle Speed Sensor Circuit

NOTE: When repairs and testing are completed, see FINAL CHECK  .

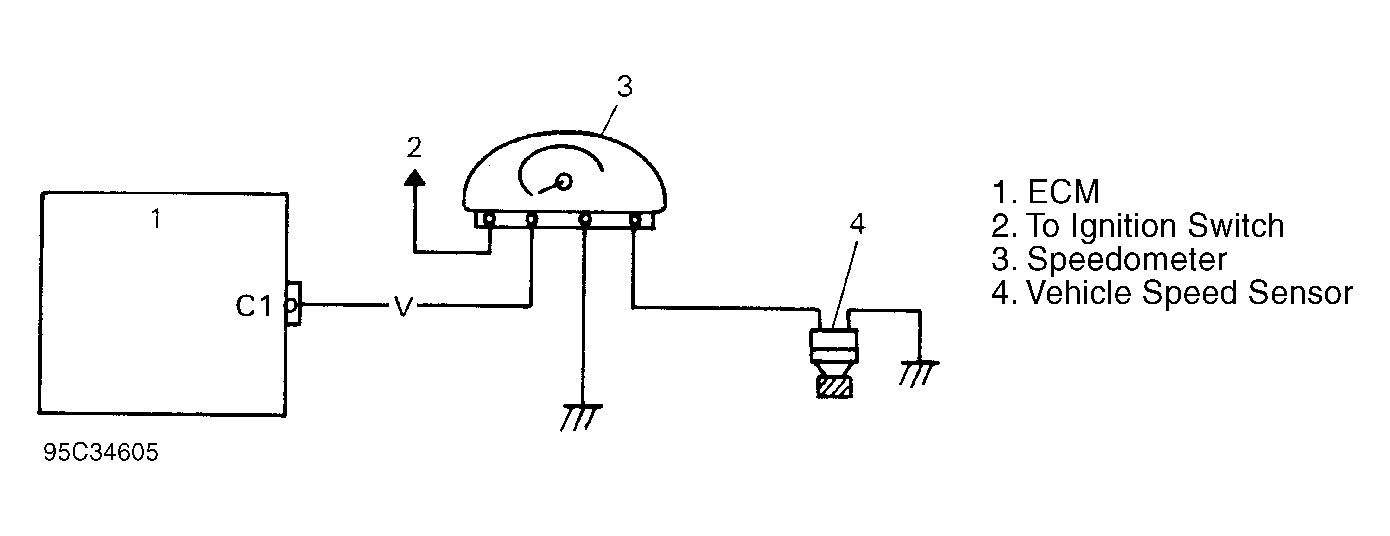

Fig 1: Code 24 - Circuit Diagram
G95C34605Courtesy of SUZUKI OF AMERICA CORP

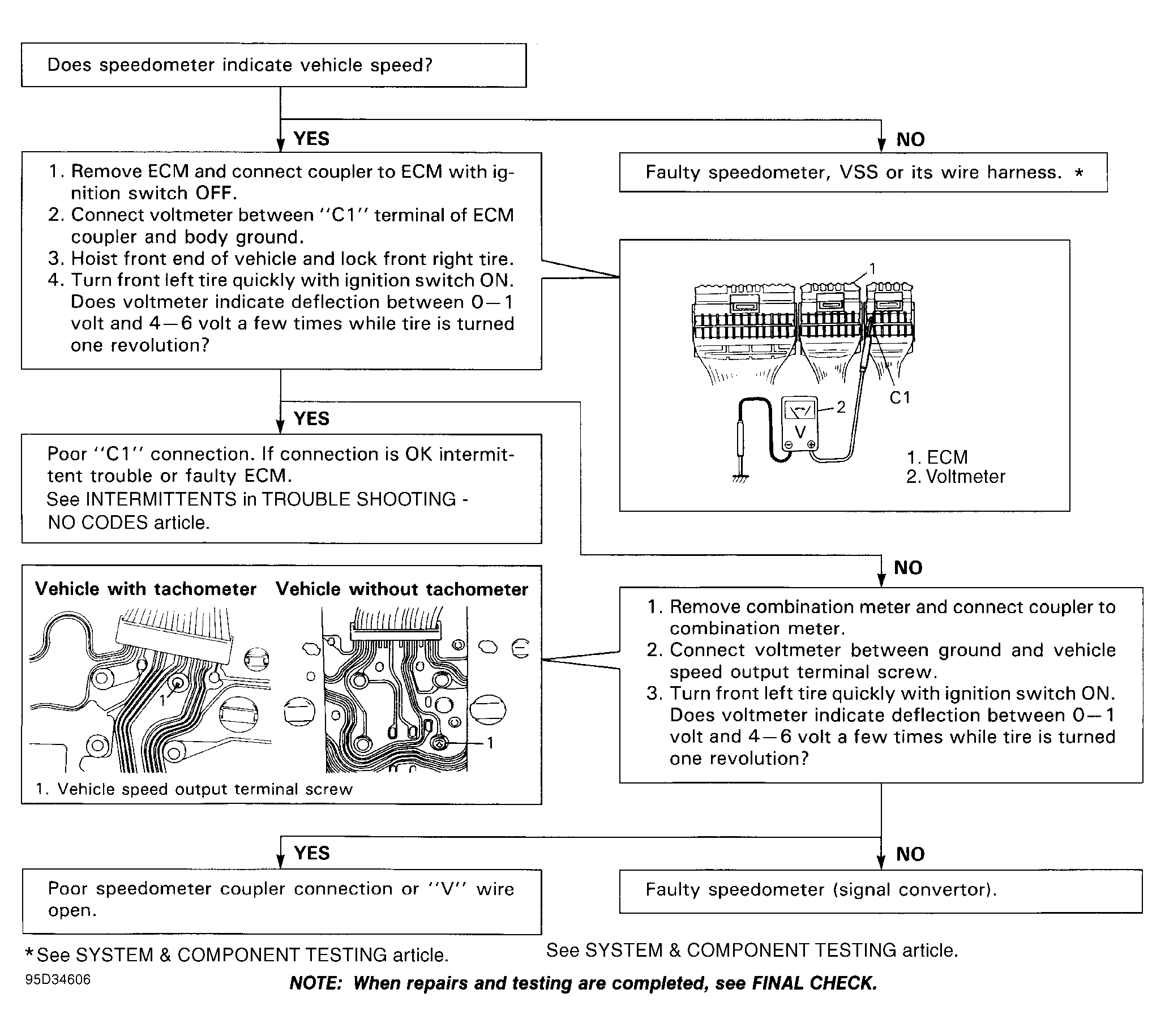

Fig 2: Code 24 - Flow Chart
G95D34606Courtesy of SUZUKI OF AMERICA CORP
