Code 52 - Fuel System Air/Fuel Ratio Feedback Incorrect

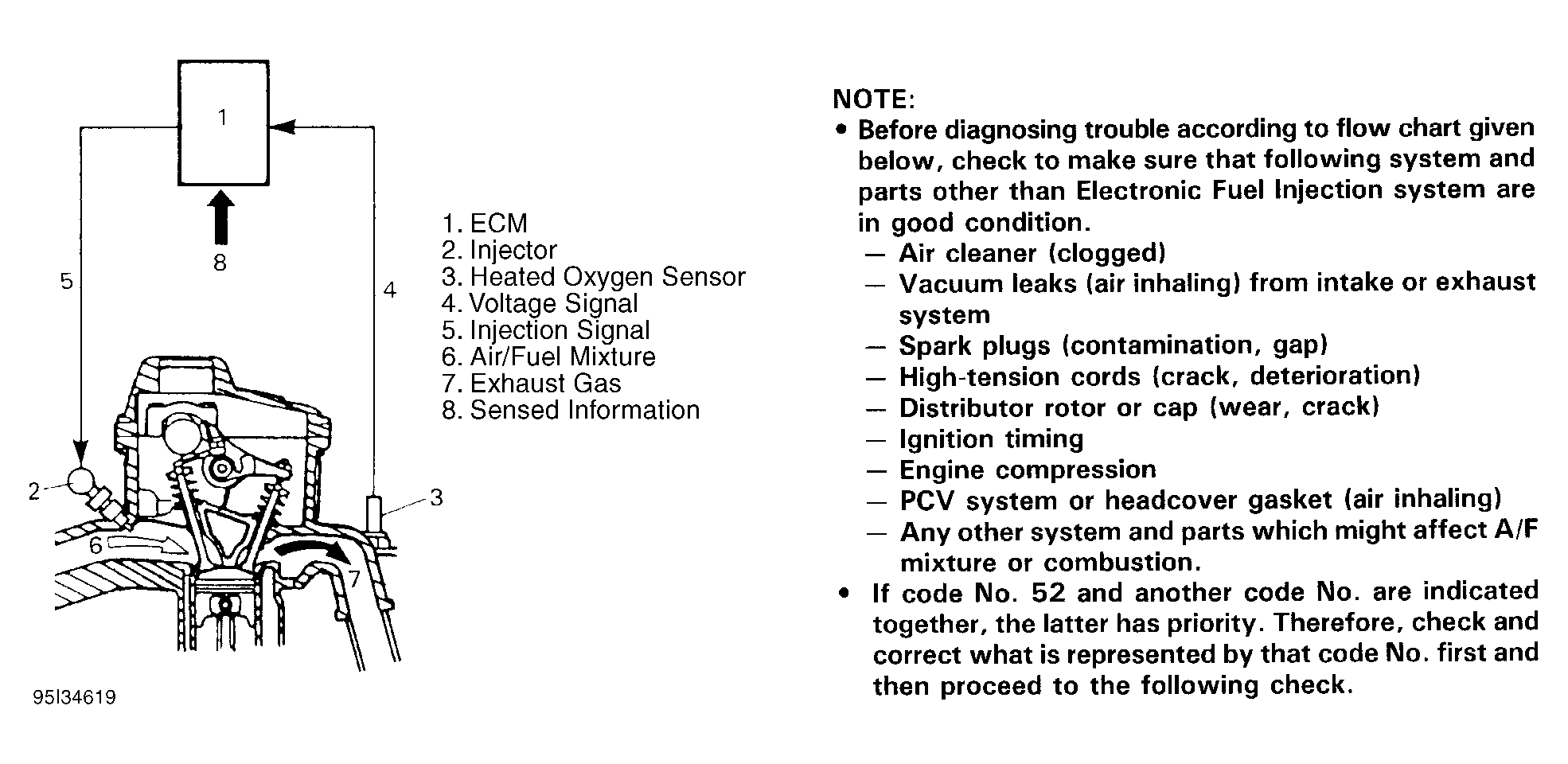

Fig 1: Code 52 - Circuit Diagram
G95I34619Courtesy of SUZUKI OF AMERICA CORP

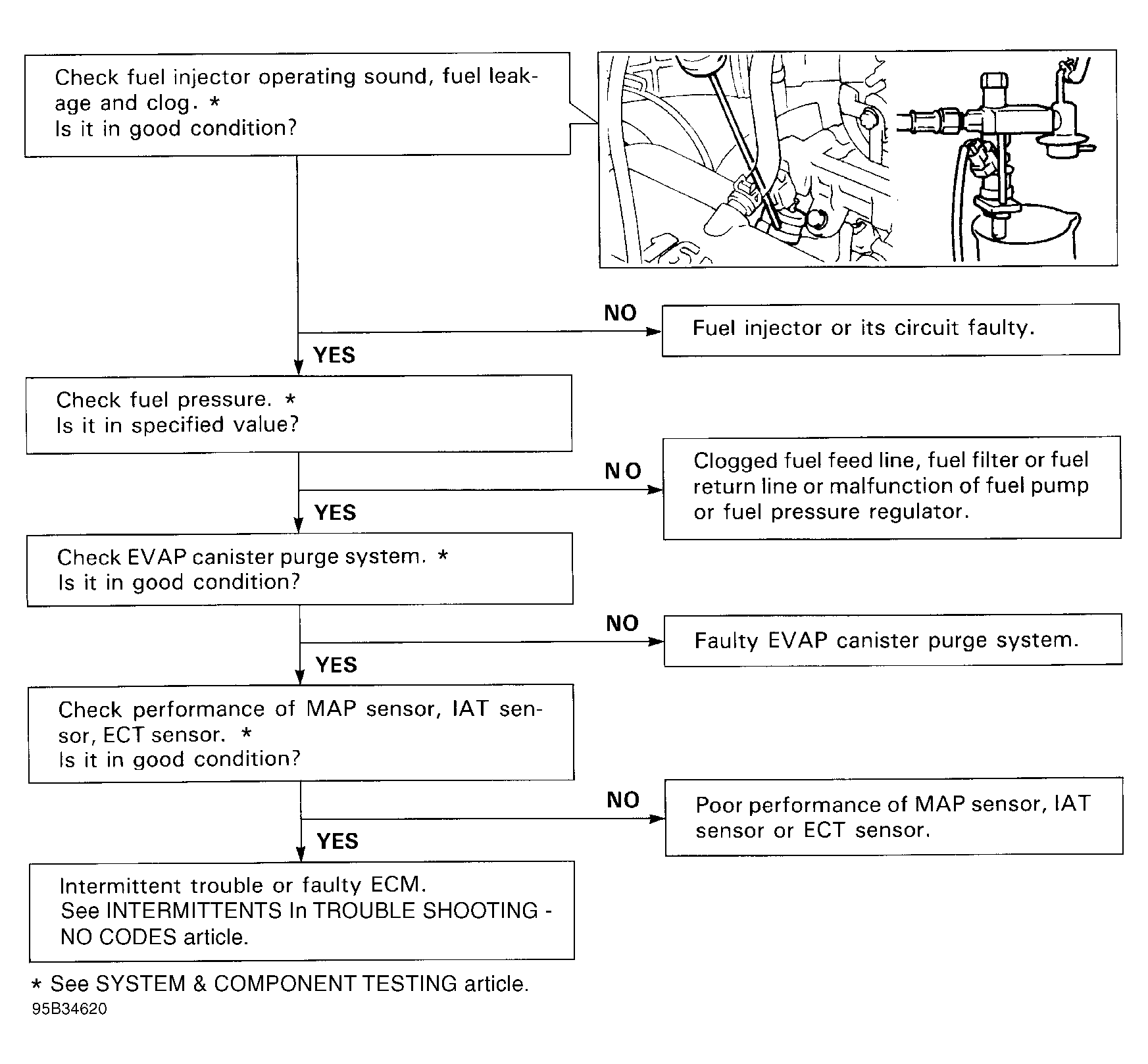

Fig 2: Code 52 - Flow Chart
G95B34620Courtesy of SUZUKI OF AMERICA CORP
