Code 41 - Ignition Fail Safe Signal CKT - No Ignition Signal

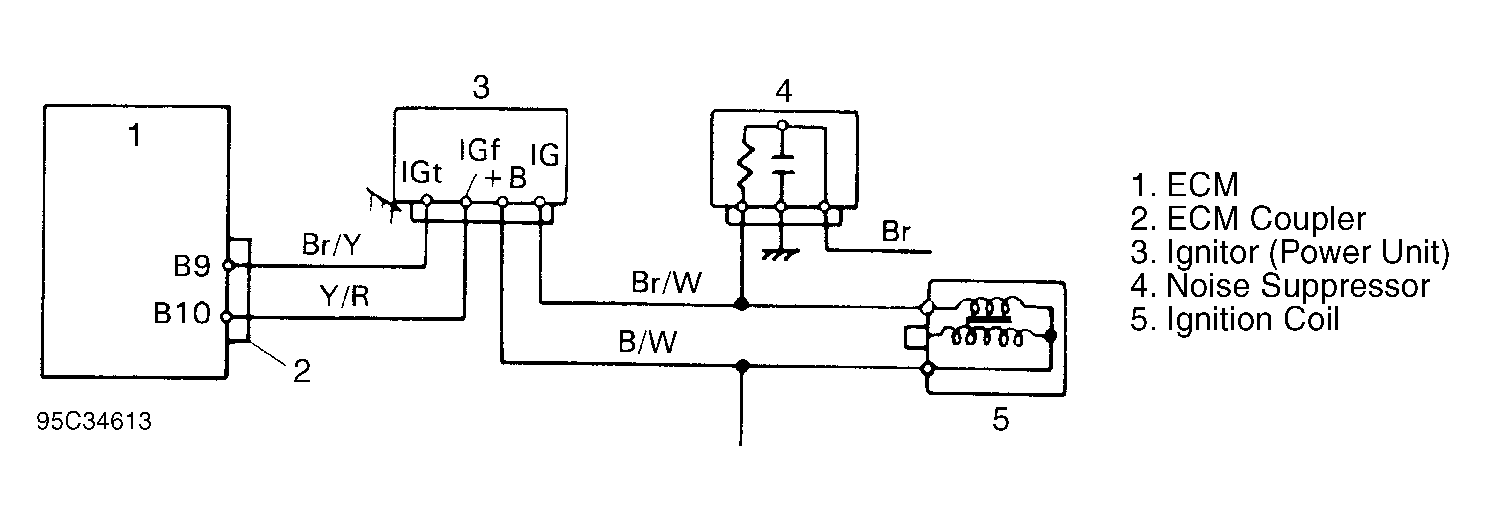

Fig 1: Code 41 - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP

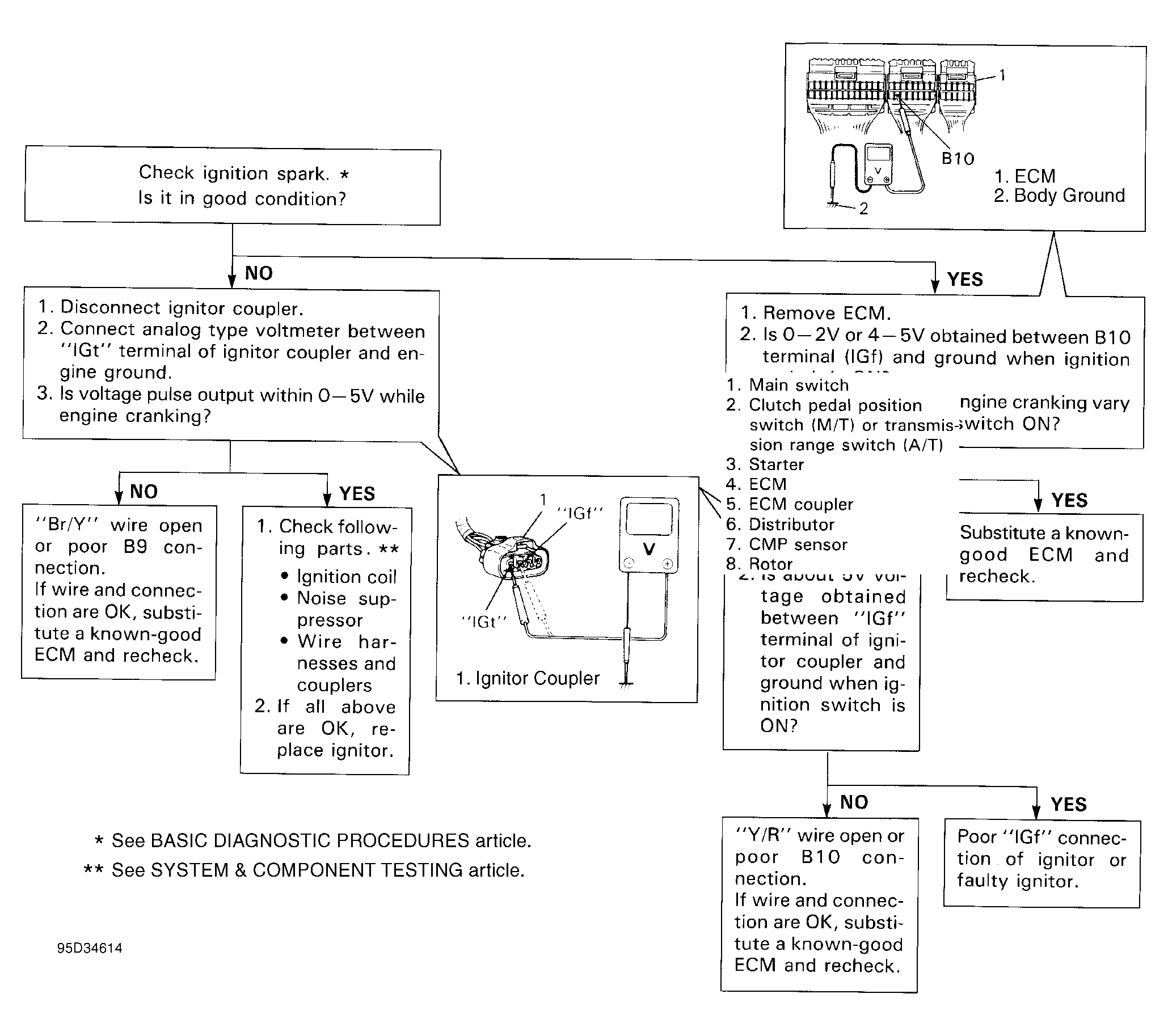

Fig 2: Code 41 - Flow Chart
Courtesy of SUZUKI OF AMERICA CORP
Courtesy of SUZUKI OF AMERICA CORP
Courtesy of SUZUKI OF AMERICA CORP
