Code 51 - EGR System Faulty EGR System

NOTE: When repairs and testing are completed, see FINAL CHECK  .

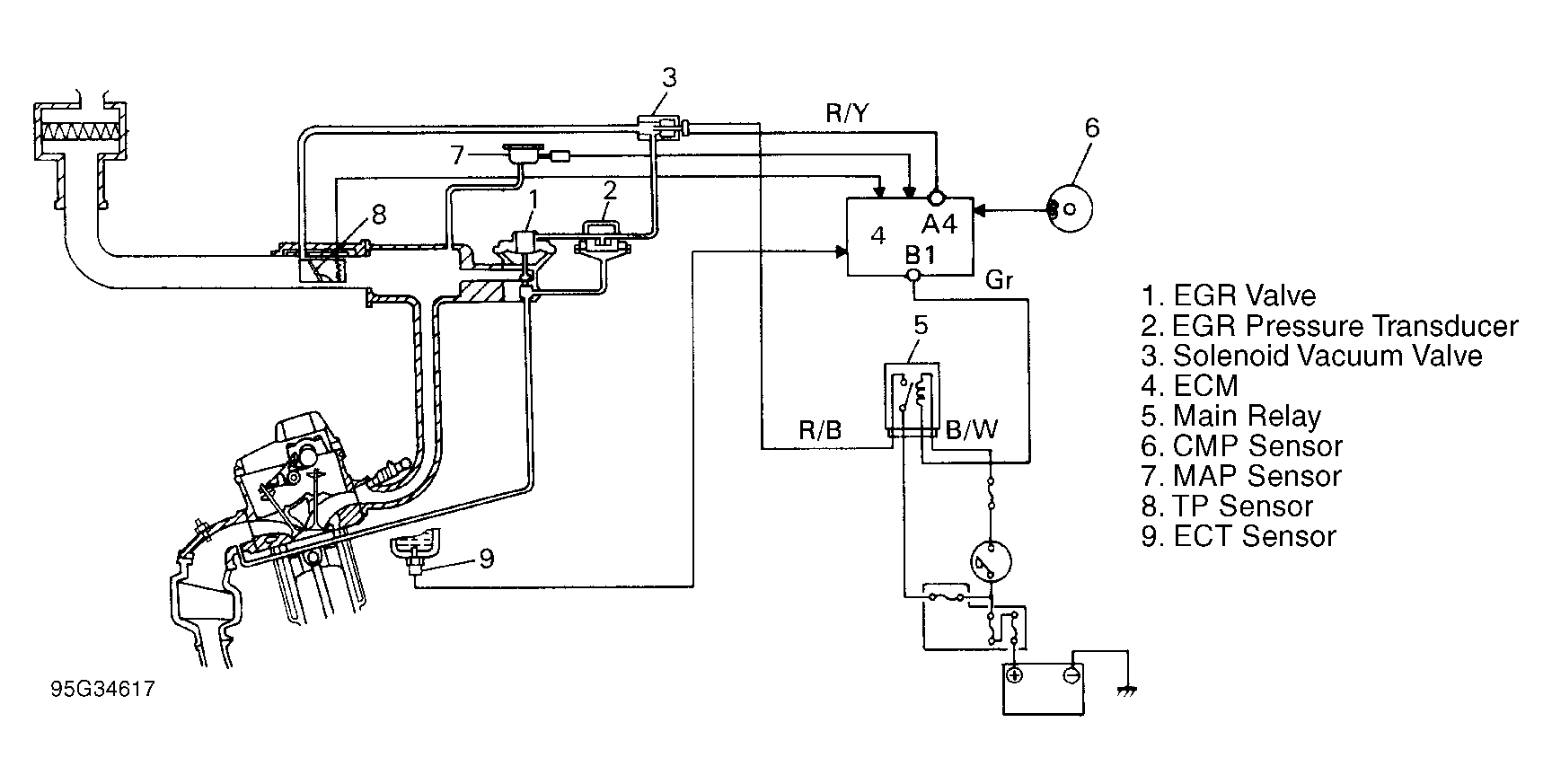

Fig 1: Code 51 - Circuit Diagram
G95G34617Courtesy of SUZUKI OF AMERICA CORP

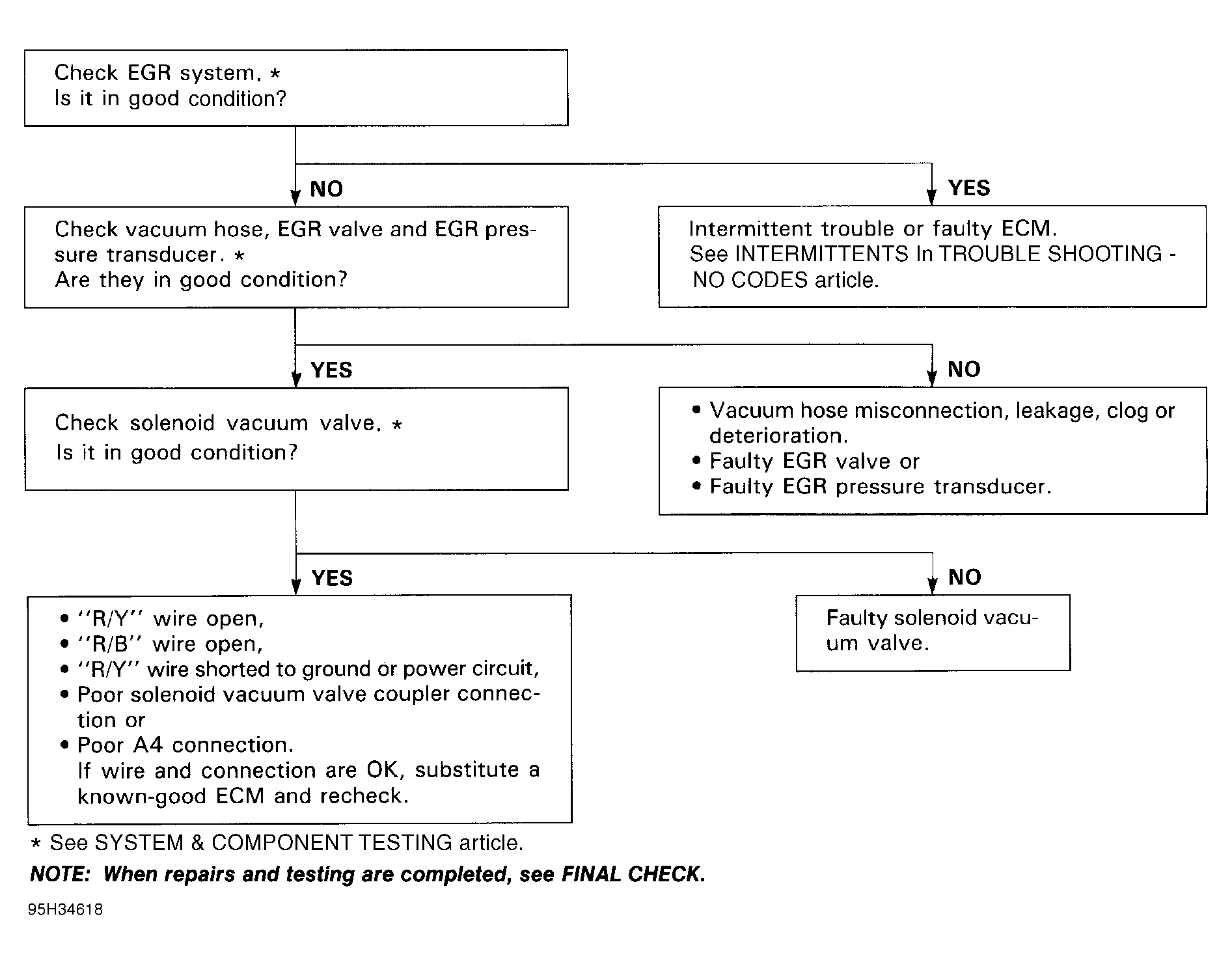

Fig 2: Code 51 - Flow Chart
G95H34618Courtesy of SUZUKI OF AMERICA CORP
