Field Coil

Using ohmmeter, check for continuity between field coil lead wire and bare surface on yoke. See Fig 1 . No continuity should exist. Replace yoke if continuity exists.

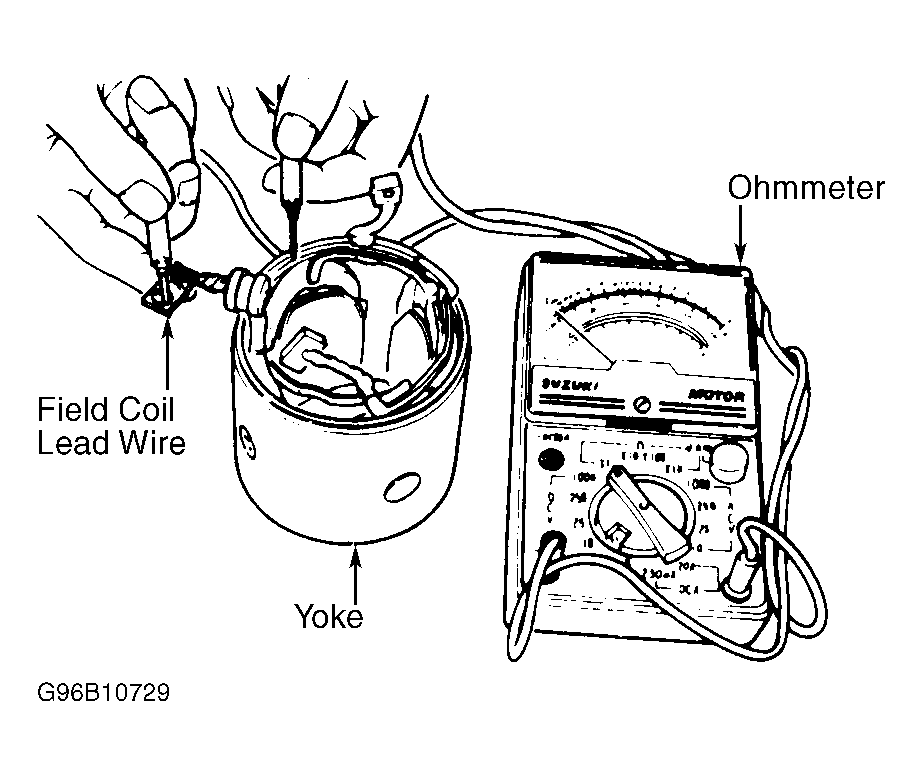

Fig 1: Testing Field Coil

Courtesy of SUZUKI OF AMERICA CORP.
