Throttle Position (TP) Sensor

THROTTLE POSITION (TP) SENSOR RESISTANCE ⁽¹⁾

Application

Ohms

Between Terminals "C" & "D"

With .008" (.20 mm) Clearance At Stop Screw

0-550

With .016" (.41 mm) Clearance At Stop Screw

Infinity

Between Terminals "A" & "D"

3500-6500

Between Terminals "B" & "D"

At Idle ⁽²⁾

0-2000

At Wide Open Throttle

⁽³⁾ 2000-6500

⁽¹⁾	See Fig 1 for terminal identification.

⁽²⁾	To obtain idle position, apply 19 in. Hg vacuum to throttle opener.

⁽³⁾	There should be more than 2000 ohms difference between idle and wide open throttle resistance.

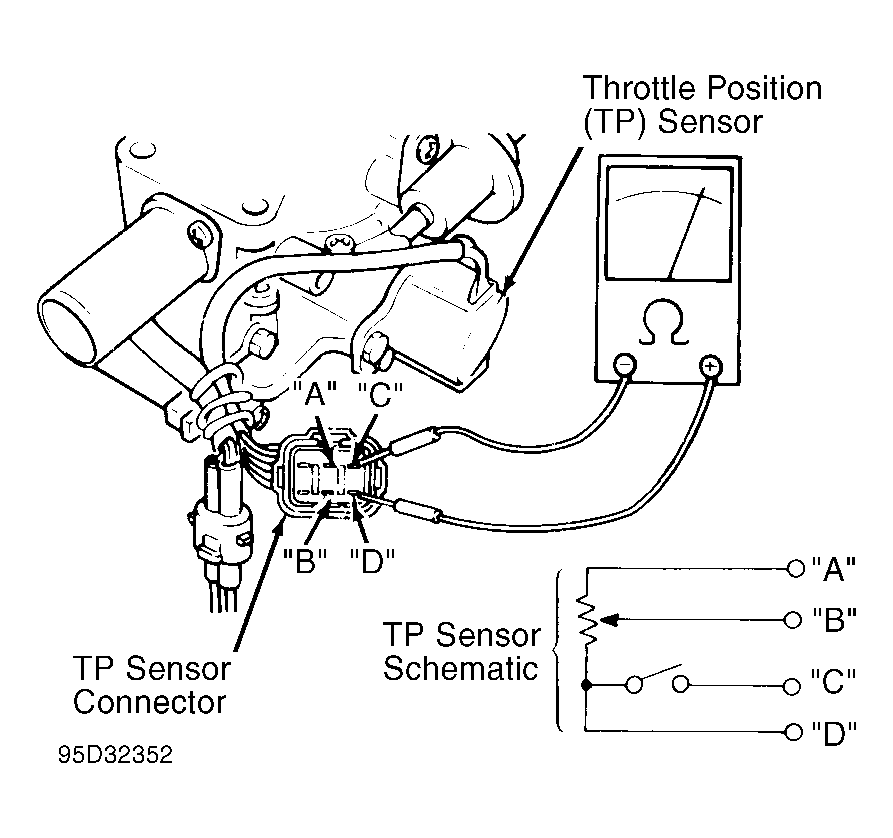

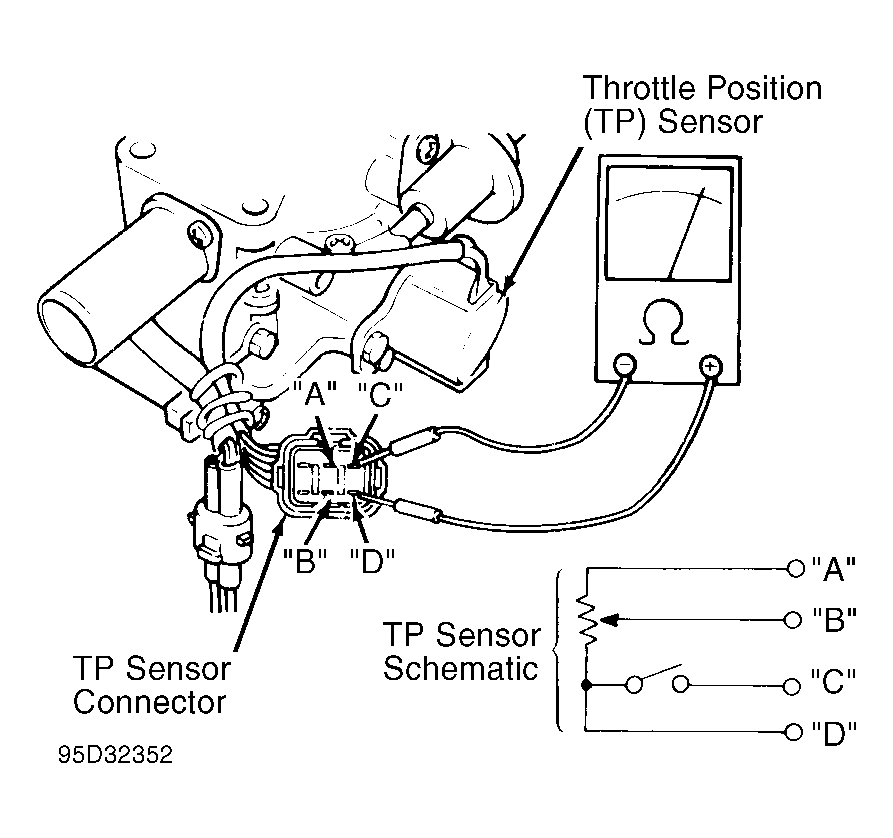

Fig 1: Identifying Throttle Position (TP) Sensor Terminals

Courtesy of SUZUKI OF AMERICA CORP.
