Fuel System Pressure Release

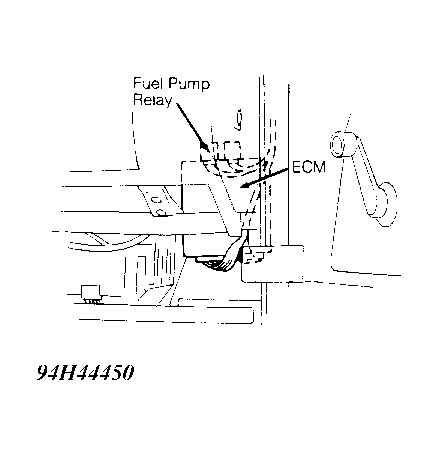

- Place transmission in Neutral or Park. Set parking brake. Loosen fuel tank filler cap to relieve tank vapor pressure. Remove harness connector from fuel pump relay located under extreme right side of dash, mounted at top front of ECM. See Fig 1
.
- Start engine and let idle until it dies. Crank engine 2-3 times to ensure fuel pressure is dissipated from system. Turn ignition off and remove key. Fuel system may now be opened safely. When loosening fuel line, hose or fitting, cover with shop towel to absorb leaking fuel. When repair is completed, reconnect relay.
Courtesy of SUZUKI OF AMERICA CORP.
