Idle Air Control (IAC)

  1. Before idle speed/IAC duty is checked or adjusted, ensure all wires and vacuum hoses are connected securely, accelerator cable has some play, valve clearance and timing are set to specification, and all accessories are turned off.
  2. Warm engine to normal operating temperature. Connect spare fuse to diagnostic switch terminal. Enter self-diagnostics and verify Code 12 is present. See the TESTS W/CODES article. If Code 12 is present, proceed to next step. If Code 12 is not present, see appropriate Initial Diagnostic Procedure chart (Chart A-1, A-2 or A-3) in the TESTS W/CODES article.
  3. Ensure idle speed and IAC duty are within specification. See the ADJUSTMENTS article. If idle speed and IAC duty are correct, system is operating correctly. If idle speed is correct but IAC duty is not correct, go to next step. If idle speed is high, go to step 5). If idle speed is low, go to step 8).
  4. If idle speed is correct but IAC duty is incorrect, adjust IAC duty. See the ADJUSTMENTS article.
    NOTE: When IAC solenoid is almost closed, check air intake system for vacuum leaks. If no vacuum leaks are present, adjust IAC duty. If IAC duty remains unchanged when adjusting screw is rotated, check wiring circuit of duty check terminal. For information on duty check terminal, see the TESTS W/CODES article.
  5. If idle speed is high, pinch upper hose on IAC solenoid closed. See Fig 1 . The IAC solenoid is located on right side of engine, near valve cover. If engine speed did not decrease, go to step 7). If engine speed decreased, go to next step.
  6. Turn ignition off. Disconnect electrical connector from IAC solenoid. Using ohmmeter, check resistance between IAC solenoid terminals. Resistance should be 30-33 ohms. Replace IAC solenoid if defective. If resistance is okay, check for short in Light Green/Black wire. See Fig 1 . If wiring is okay, substitute a known good ECM and recheck.
  7. Ensure no vacuum leaks are present in air intake system or A/C Vacuum Switching Valve (VSV). Adjust idle speed and IAC duty. See the ADJUSTMENTS article. If idle speed cannot be adjusted, check air valve. See FAST IDLE AIR (FIA) VALVE  under IDLE CONTROL SYSTEM.
  8. If idle speed is low, disconnect IAC solenoid hose from air cleaner. Ensure air is being drawn into hose. If no air is being drawn in, go to next step. If air is being drawn in, adjust idle speed and IAC duty. See the ADJUSTMENTS article.
  9. Turn ignition off. Disconnect electrical connector from IAC solenoid. Using ohmmeter, check resistance between IAC solenoid terminals. Resistance should be 30-33 ohms. Replace IAC solenoid if defective. If resistance is okay, go to next step.
  10. Check for open in Light Green/Black wire, defective wiring connections or clogged hoses to IAC solenoid. See Fig 1 . If all are okay, substitute a known-good ECM and recheck operation.

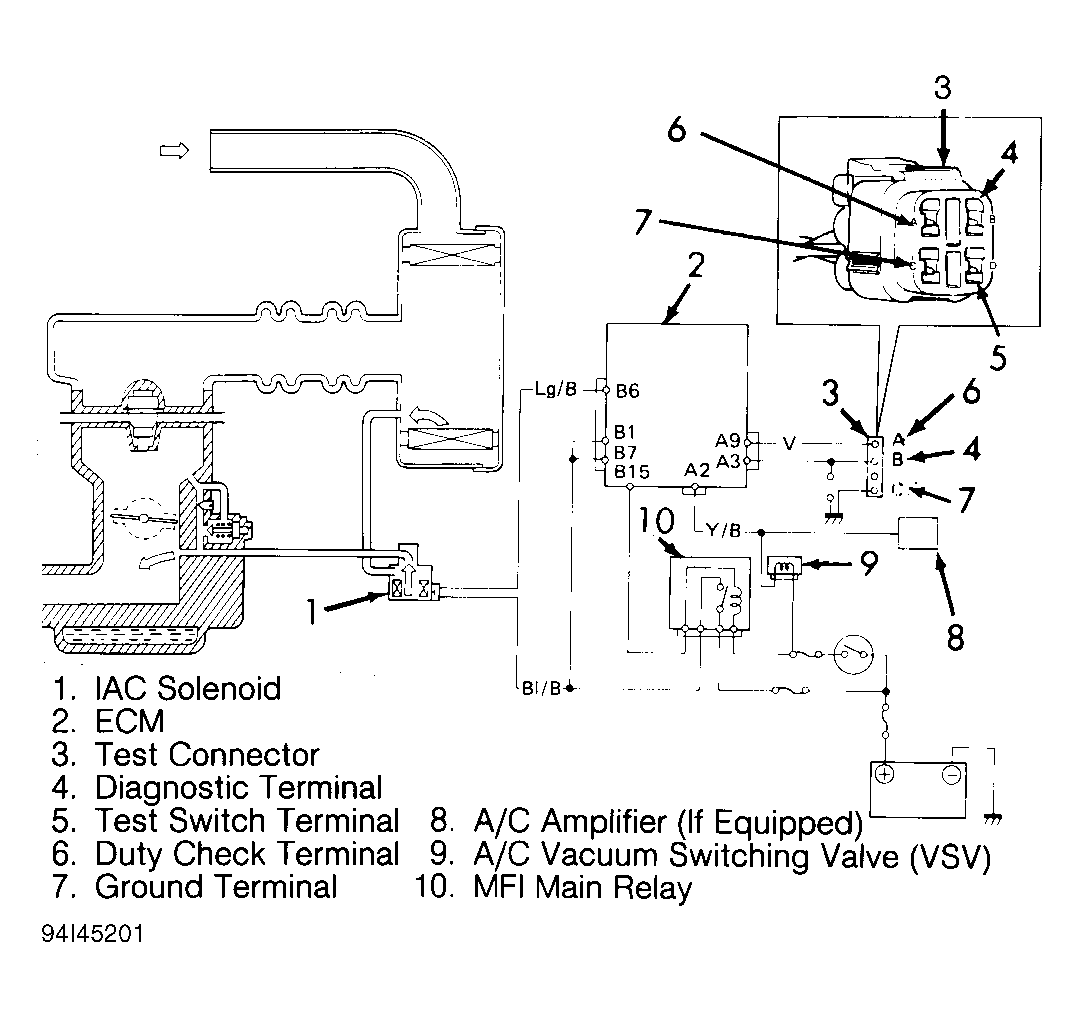

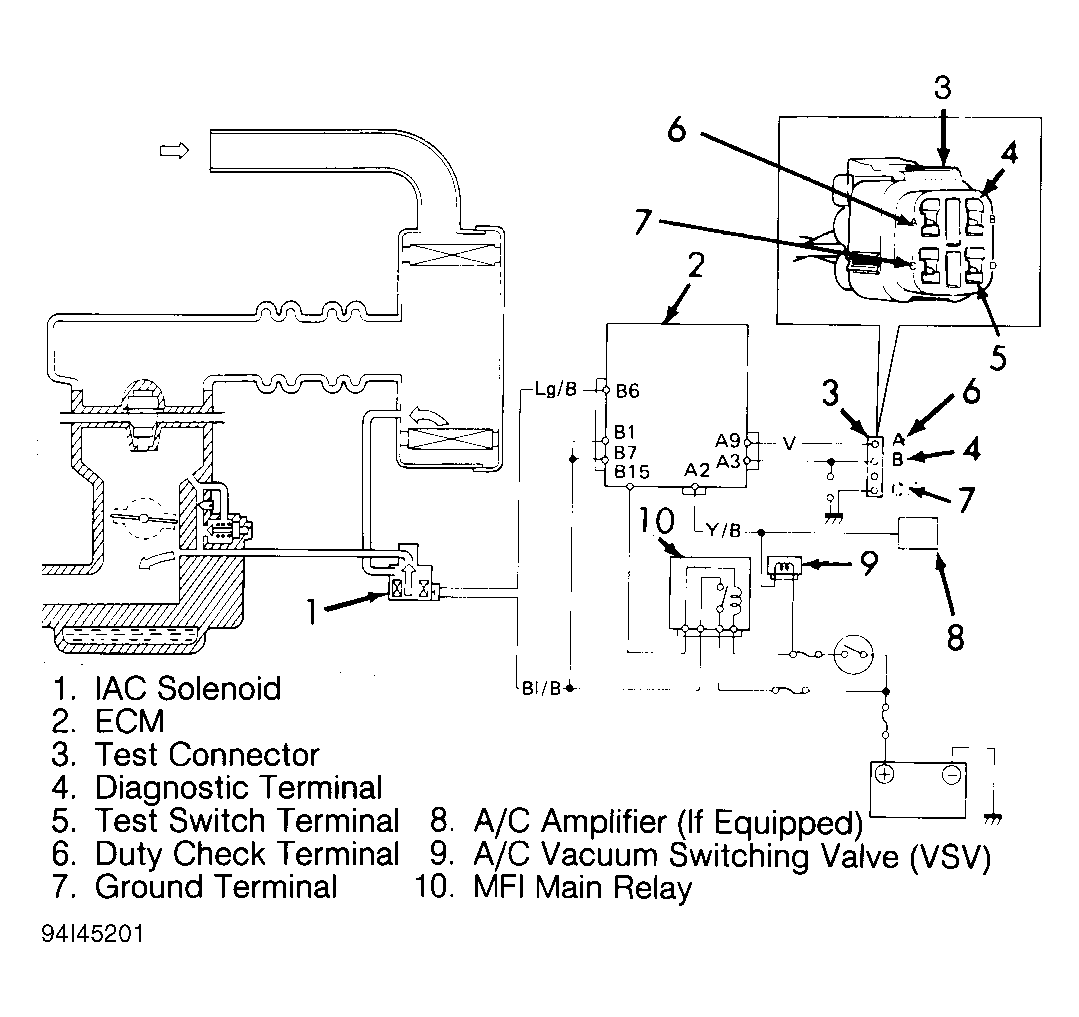

Fig 1: IAC Solenoid Wiring Schematic
G94I45201Courtesy of SUZUKI OF AMERICA CORP.
