Throttle Opener System: Notes

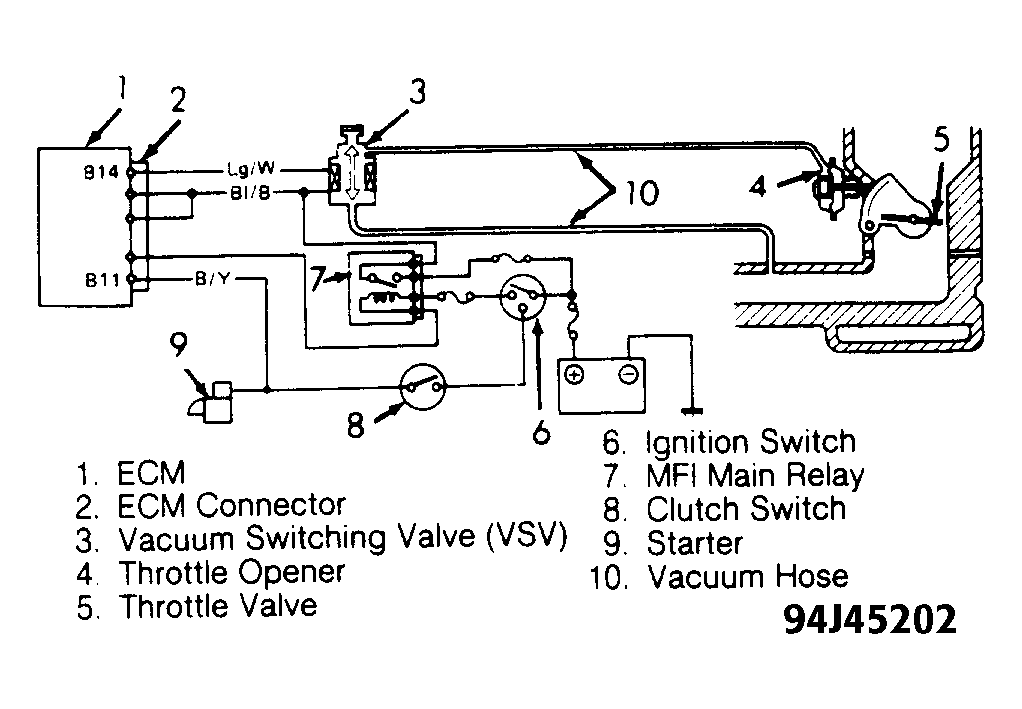

NOTE: See illustration for throttle opener system vacuum and wiring schematic. See Figure .
