Code 15 - ECT Sensor, High Temperature Indicated

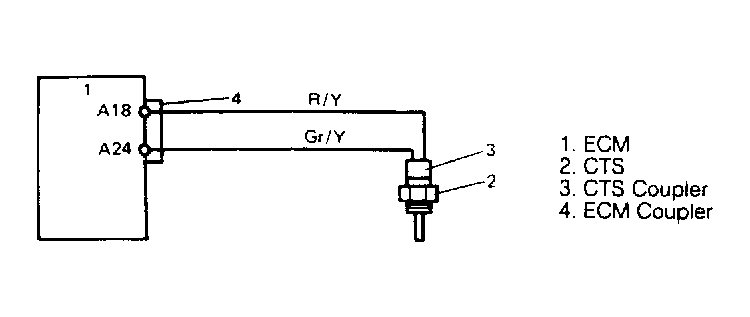

Fig 1: Code 15 - Circuit Diagram
G91H18488Courtesy of SUZUKI OF AMERICA

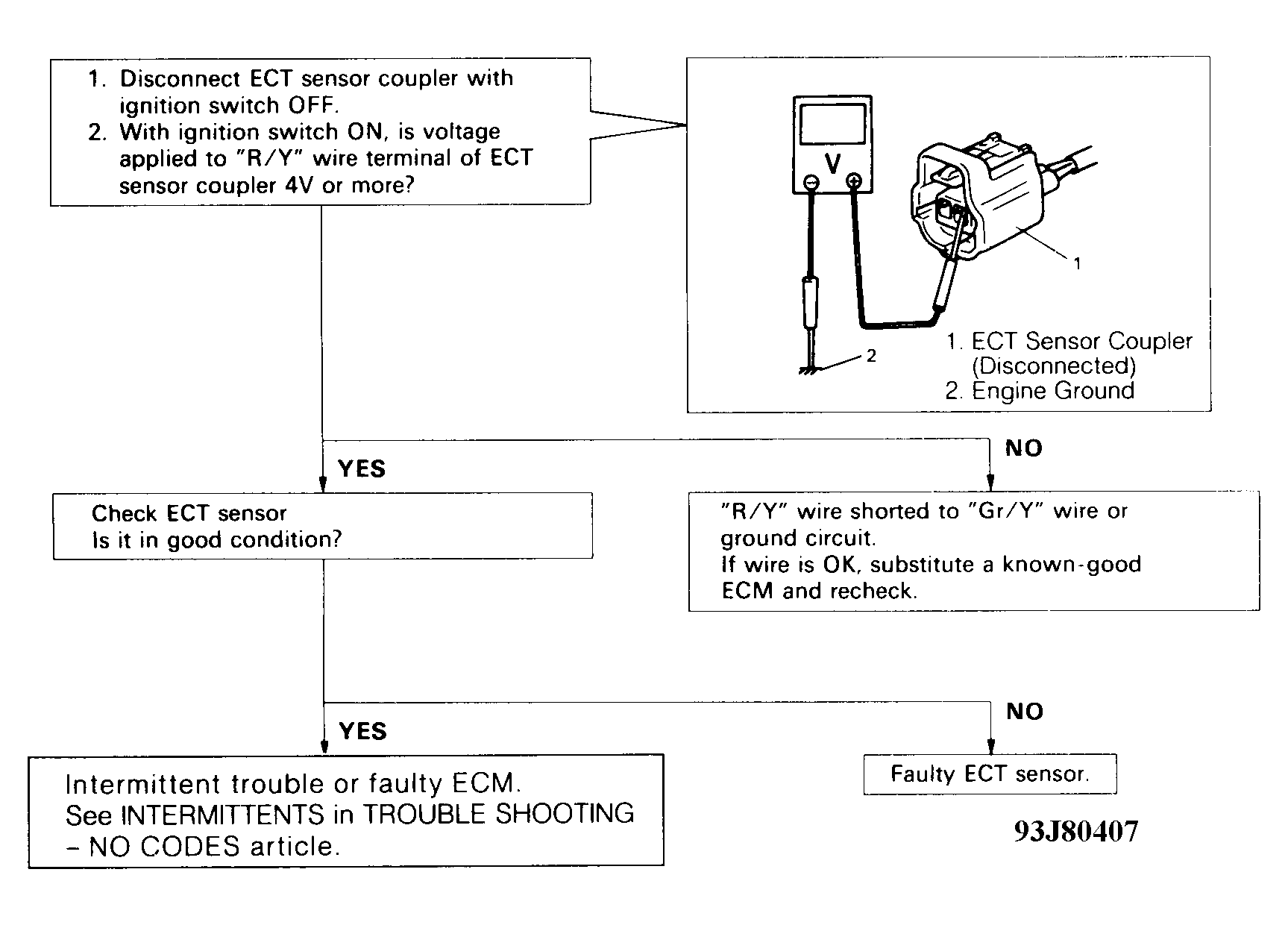

Fig 2: Code 15 - Flow Chart
G93J80407Courtesy of SUZUKI OF AMERICA
