Code 24 - Vehicle Speed Sensor

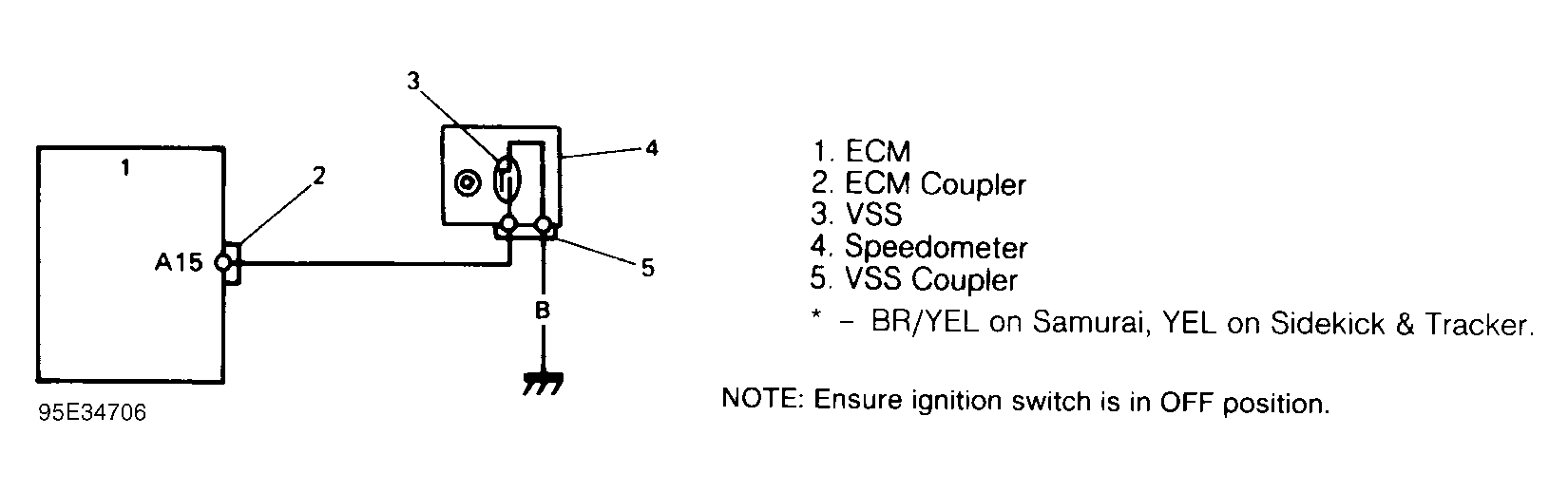

Fig 1: Code 24 - Circuit Diagram
G95E34706Courtesy of SUZUKI OF AMERICA
Fig 2: Code 24 - Flow Chart
G91I18497Courtesy of SUZUKI OF AMERICA
