Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| A/C Amplifier | Behind left side of glove box. |

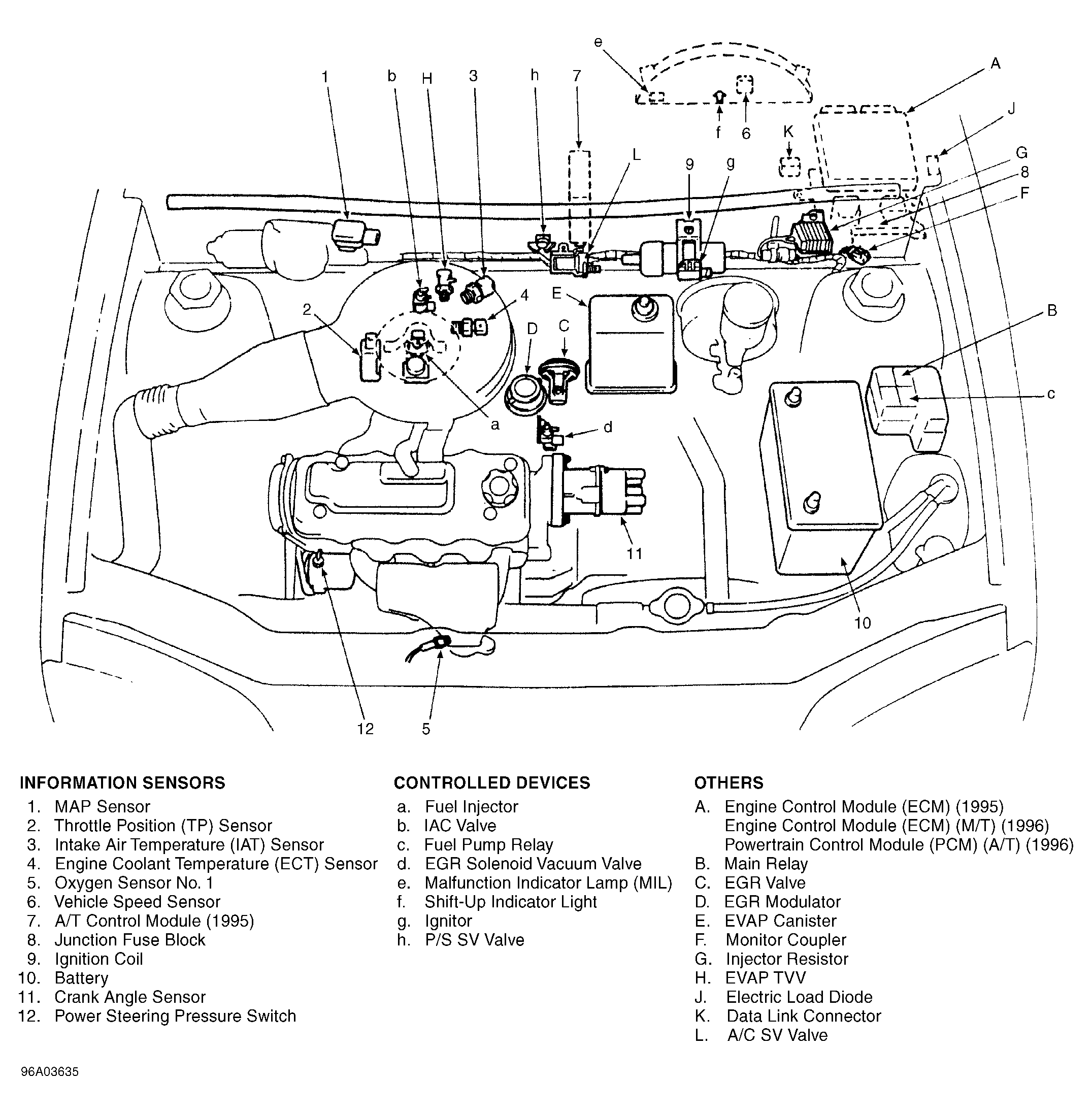

| A/T Control Module (1995) | Behind dash, right of steering column. See Figure . |
| ABS Control Module (1995) | Behind dash, right of steering column. |
| DRL Controller | Behind dash, right of steering column. |
| EBCM (ABS Control Module) (1996) | Behind dash, left of steering column. |
| Engine Control Module (ECM) (1995) | Behind right side of glove box. See Figure . |
| Engine Control Module (ECM) (1996) (M/T) | Behind right side of glove box. See Figure . |
| Illumination Controller | Behind dash, left of steering column. |
| Power Door Lock Controller (1995) | In trunk, under package tray. |
| Power Door Lock Controller (1996) | Behind left kick panel. |
| Powertrain Control Module (PCM) (1996) (A/T) | Behind right side of glove box. See Figure . |
| Sensing & Diagnostic Module (SDM) | Below front console, forward of gear selector. |
