Throttle Position (TP) Sensor
THROTTLE POSITION (TP) SENSOR RESISTANCE
(1)
Application
Ohms
Between Terminals "A" & "C"
100-100,000
Between Terminals "A" & "D"
2870-5330
(1)
See
Fig 1
for terminal identification.

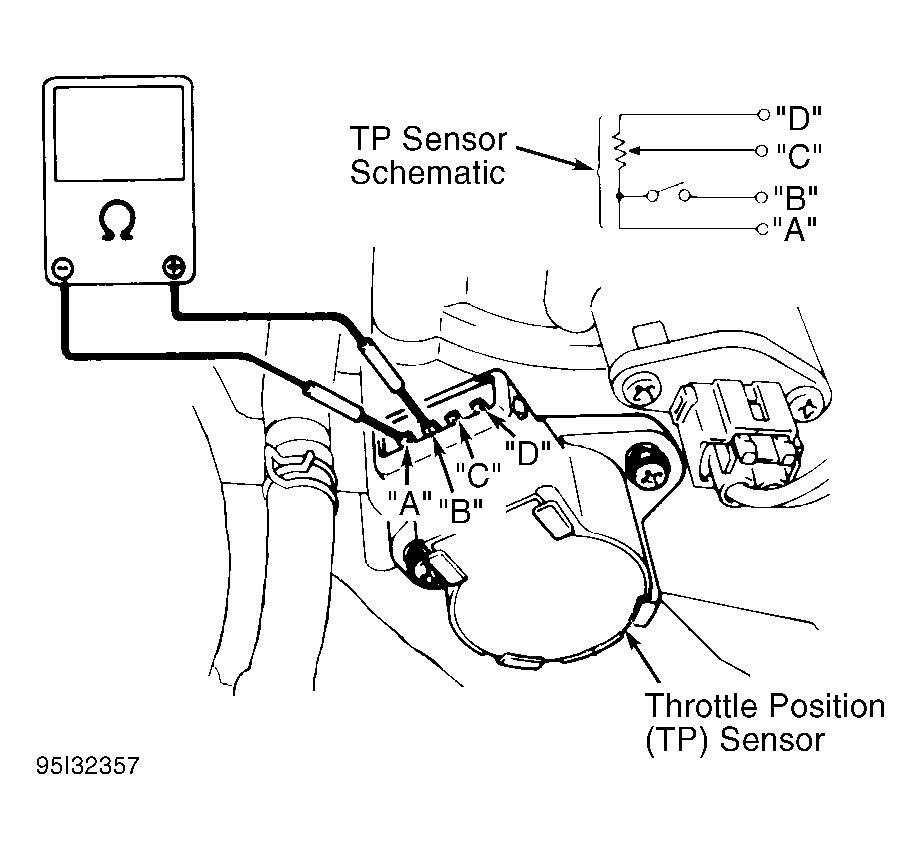

Fig 1: Identifying Throttle Position (TP) Sensor Terminals
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
