Code 13 - Heated Oxygen Sensor Circuit

NOTE: When repairs and testing are completed, see FINAL CHECK  .

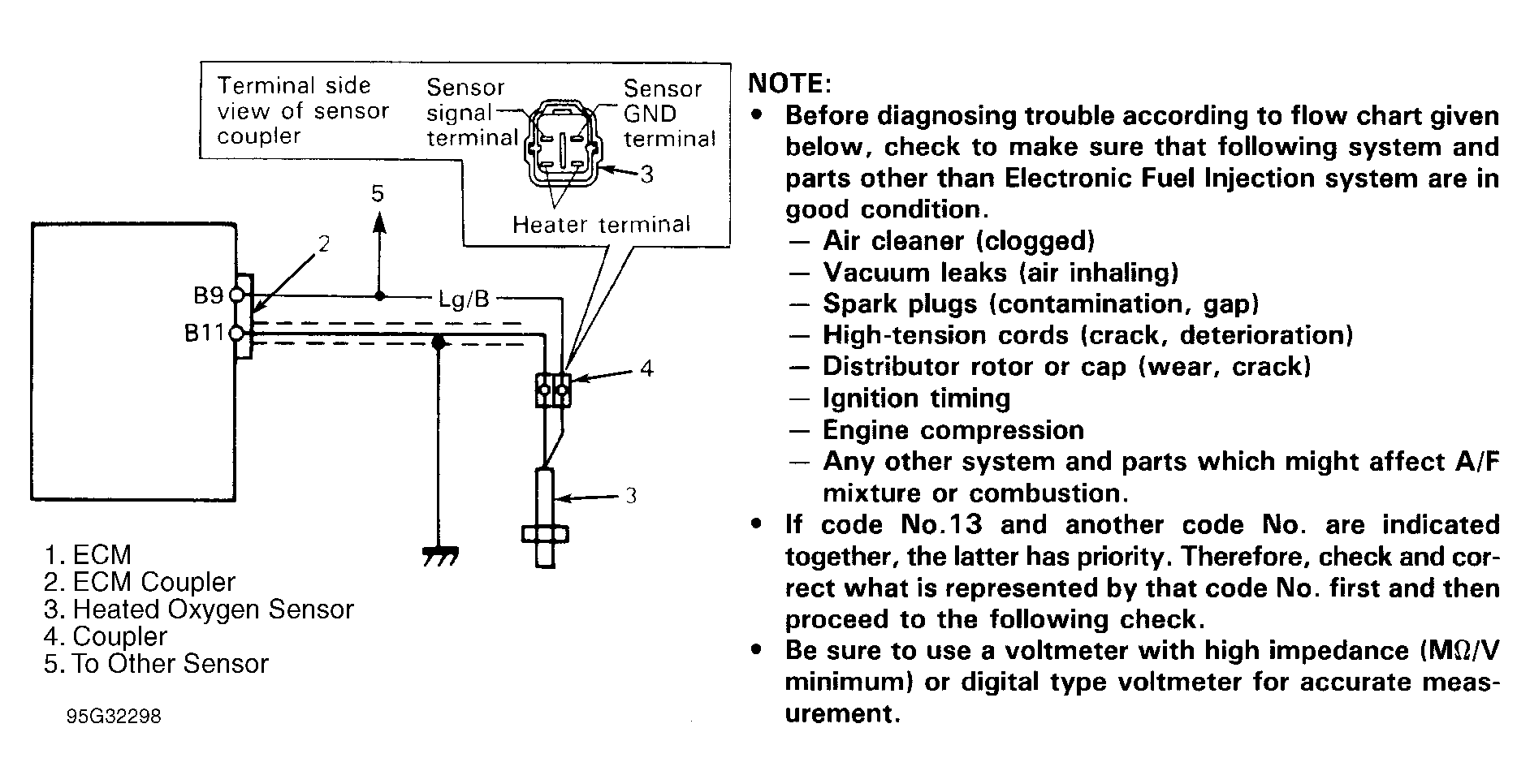

Fig 1: Code 13 - Circuit Diagram
G95G32298Courtesy of SUZUKI OF AMERICA

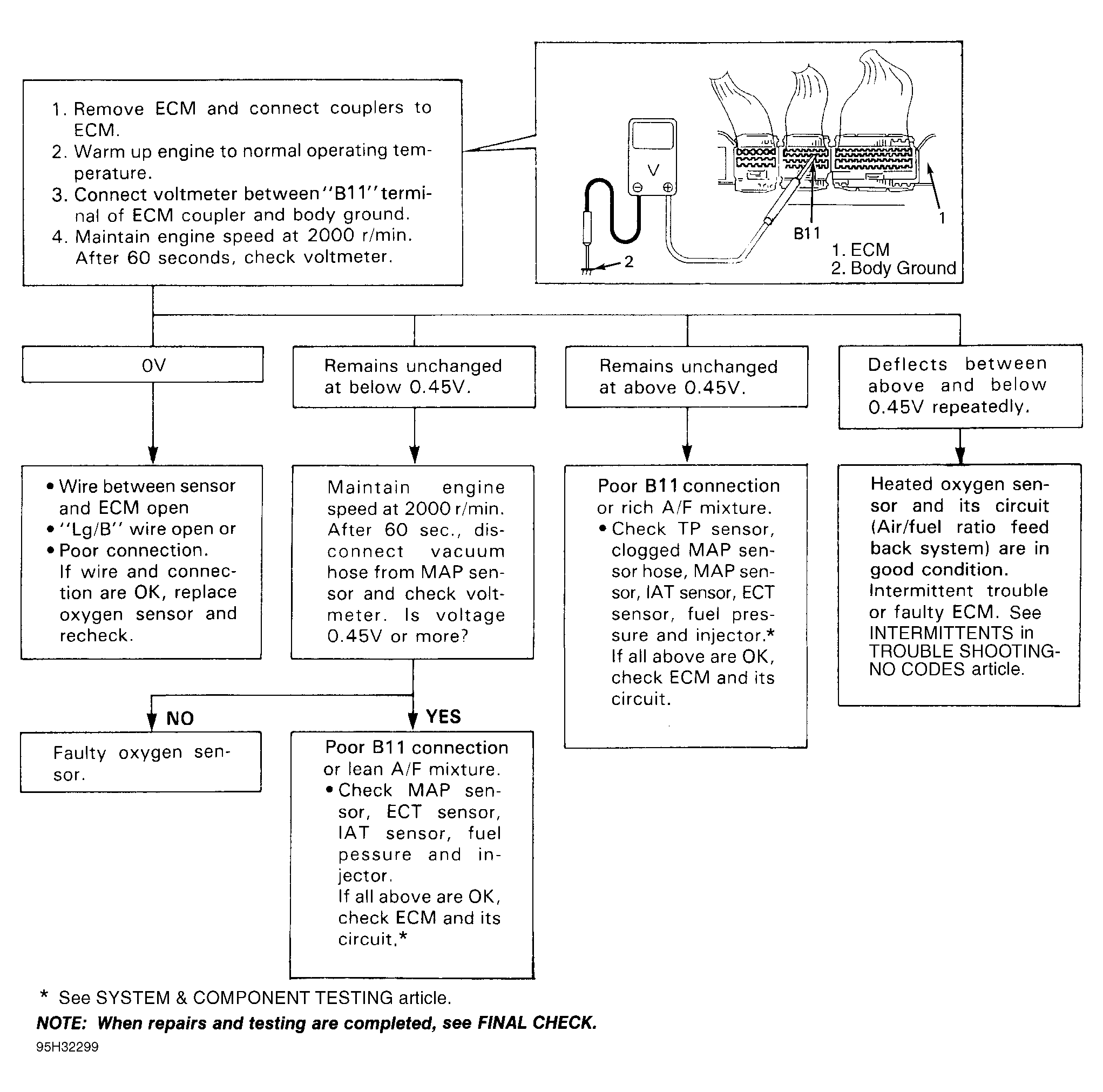

Fig 2: Code 13 - Flow Chart
G95H32299Courtesy of SUZUKI OF AMERICA
