Circuit Resistance Charts

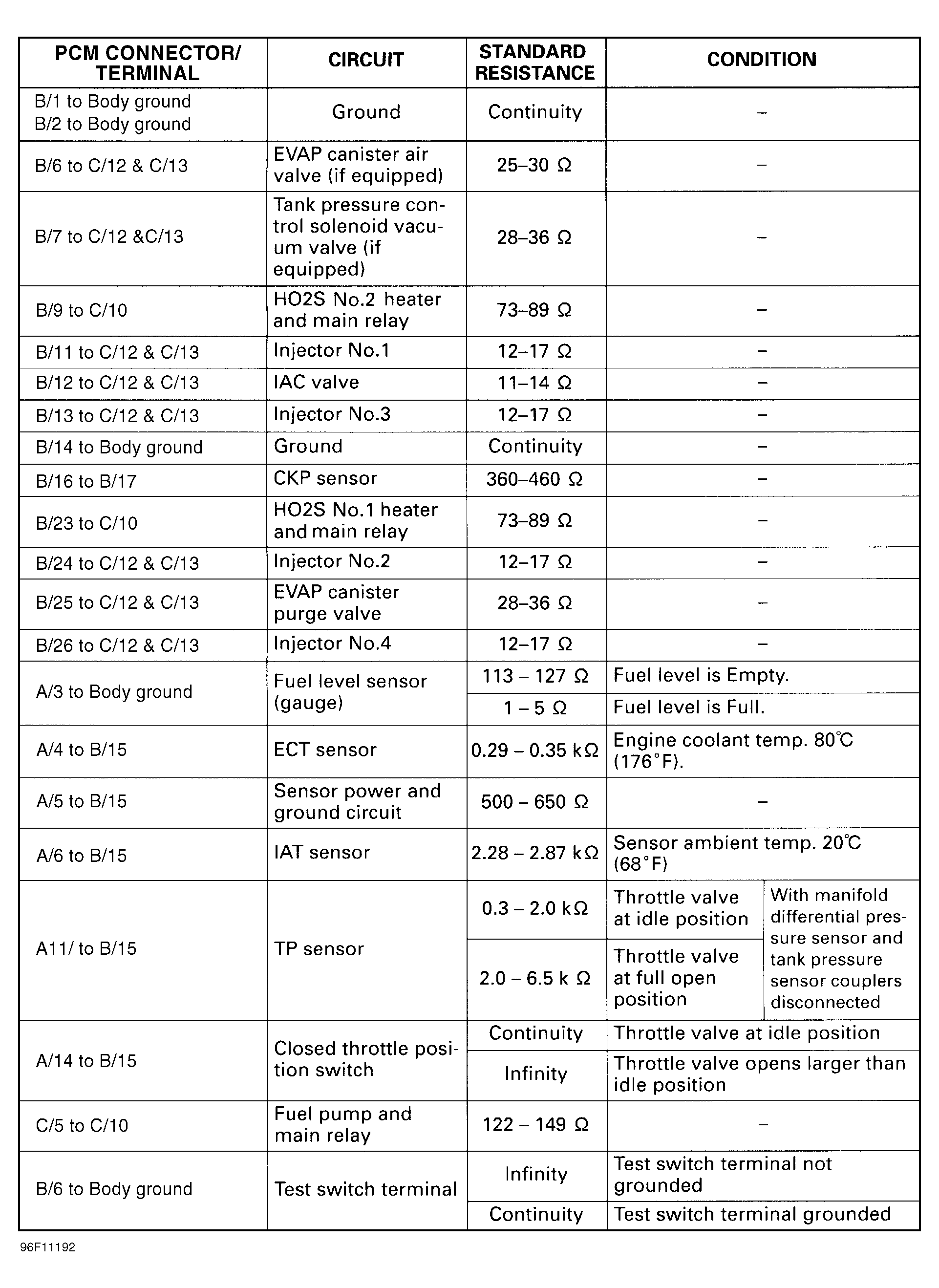

Fig 1: Circuit Resistance Chart (1 Of 2)
G96F11192Courtesy of SUZUKI OF AMERICA CORP.

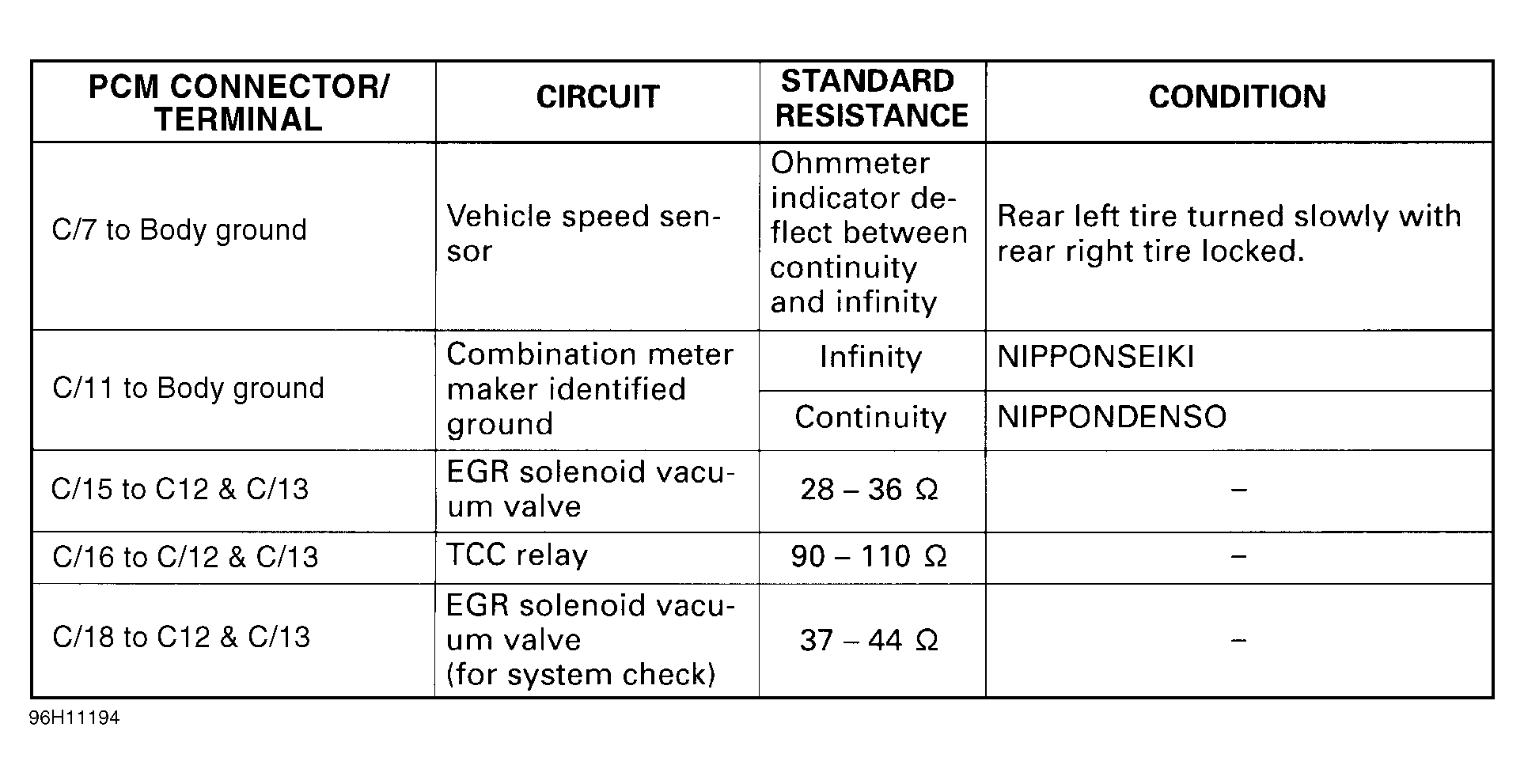

Fig 2: Circuit Resistance Chart (2 Of 2)
G96H11194Courtesy of SUZUKI OF AMERICA CORP.
