Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

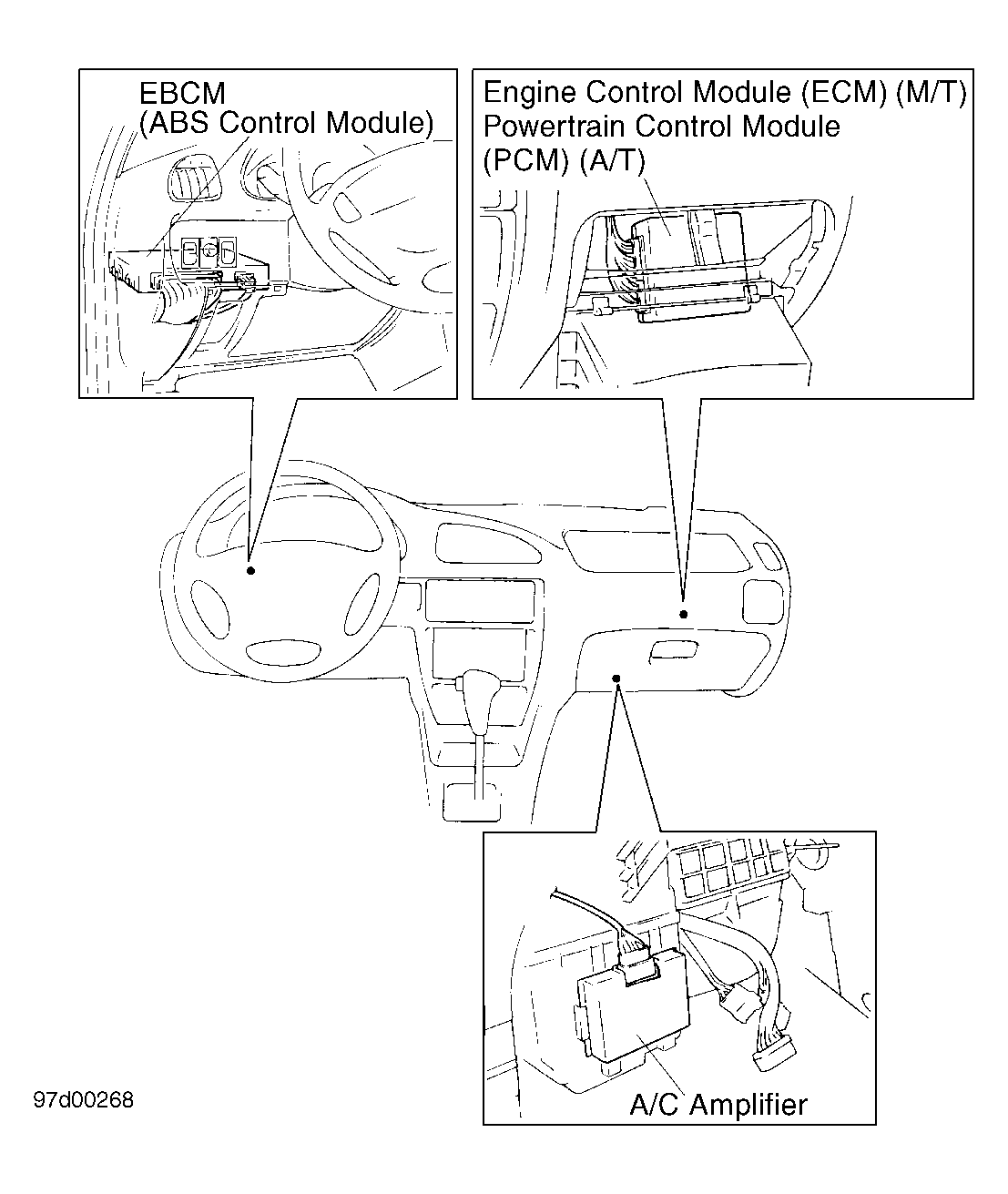

| A/C Amplifier | Behind left side of glove box. See Figure . |

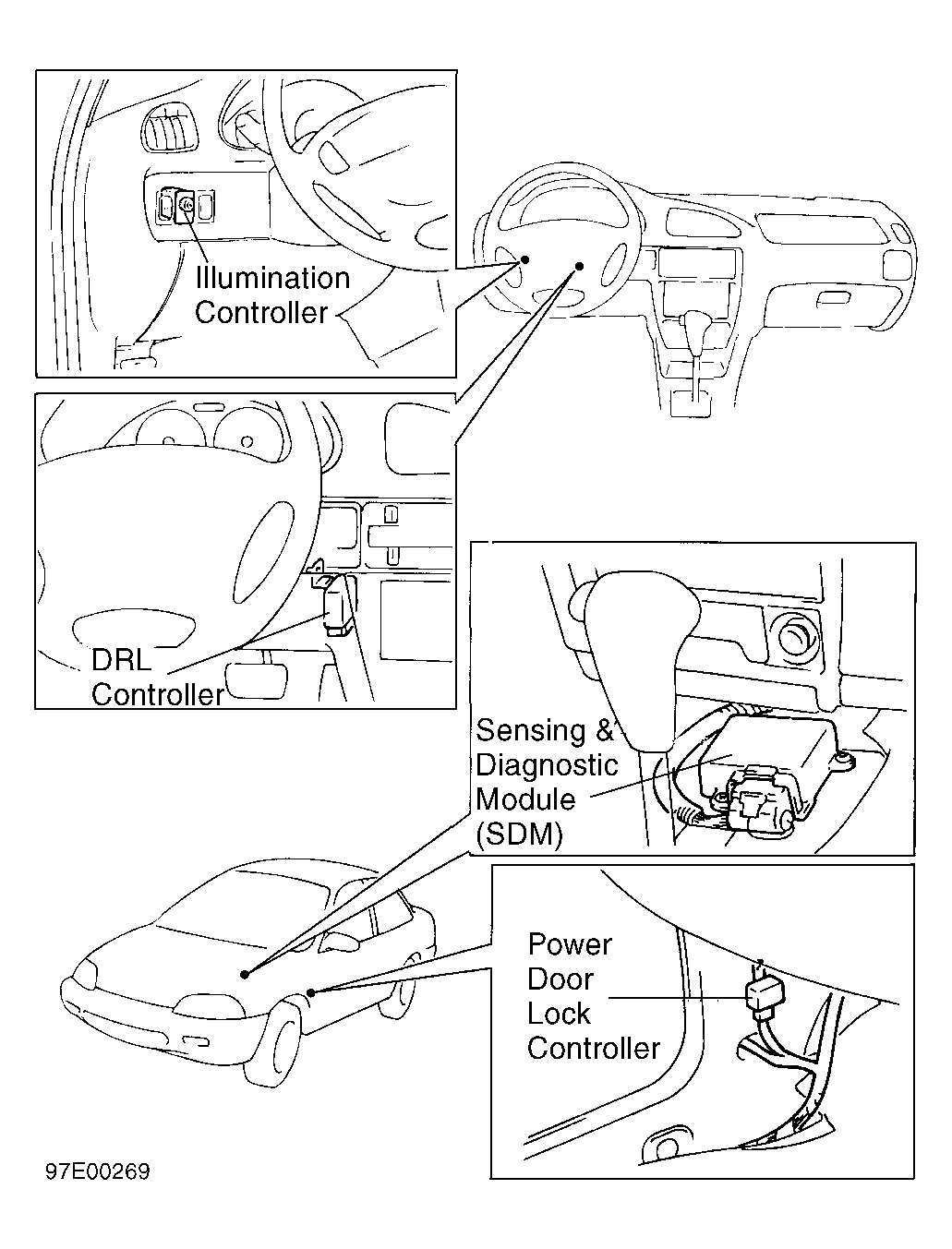

| DRL Controller | Behind dash, right of steering column. See Figure . |
| EBCM (ABS Control Module) | Behind dash, left of steering column. See Figure . |
| Engine Control Module (ECM) (M/T) | Behind right side of glove box. See Figure . |
| Illumination Controller | Behind dash, left of steering column. See Figure . |
| Power Door Lock Controller | Behind left kick panel. See Figure . |
| Powertrain Control Module (PCM) (A/T) | Behind right side of glove box. See Figure . |
| Sensing & Diagnostic Module (SDM) | Below front console, forward of gear selector. See Figure . |
