Steering Column
NOTE:
Steering column and shaft is not serviced separately. Do not attempt to disassemble steering column assembly. Replace as a unit only.

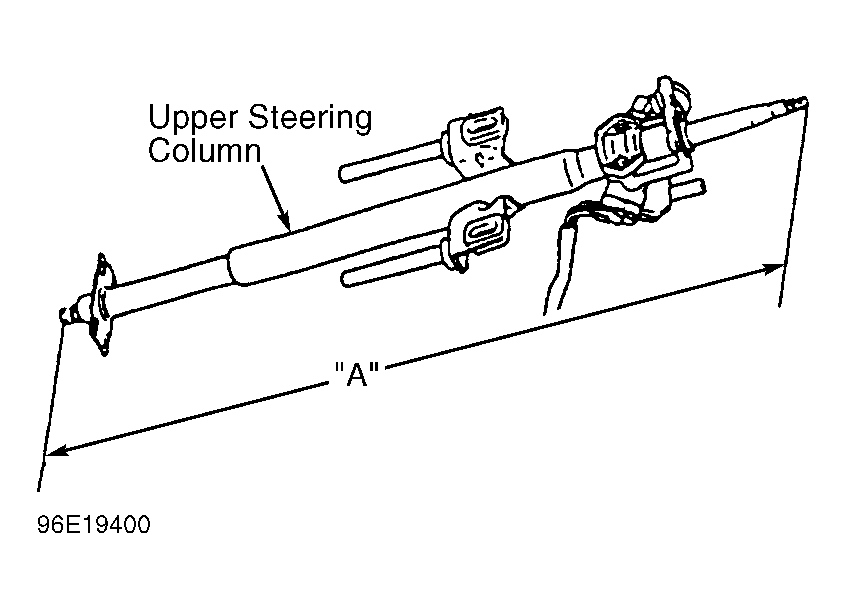

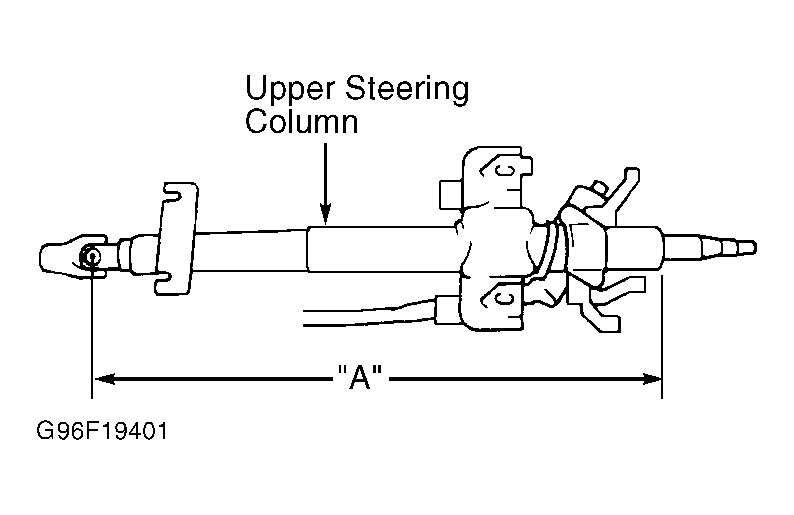

If vehicle has been involved in a substantial collision check steering column for collapse by measuring upper steering shaft dimension "A". See Fig 1 or Fig 2 . If measurement is not within specification, replace steering column. See STEERING COLUMN LENGTH table. Also ensure upper steering column mounts are not damaged and securely attached.
STEERING COLUMN LENGTH
| Application | Inches (mm) |
|---|---|
| Esteem | 20.20 (523) |
| Swift | 20.79 (528) |
| Sidekick | 29.52-29.58 (749.8-751.4) |
| X90 | 30.42-30.48 (772.7-774.3) |
