Idle Speed & Ignition Timing

Ensure idle speed and base ignition timing are set to specification. See the following tables:

If necessary, see ADJUSTMENTS article for adjustment procedures. If scan tool is available, check for correct IAC duty. See IAC DUTY AT SPECIFIED IDLE SPEED table.

IDLE SPEED SPECIFICATIONS

Application

Idle RPM

Esteem

A/C Off

Automatic Transaxle

"P" Or "N"

700-800

"R", "D", "2" Or "L"

650-750

Manual Transaxle

650-750

A/C On

Automatic Transaxle

"P" Or "N"

800-900

"R", "D", "2" Or "L"

750-850

Manual Transaxle

800-900

Sidekick & X-90

A/C Off

750-850

A/C On

Automatic Transaxle

"P" Or "N"

850-950

"R", "D", "2" Or "L"

750-850

Manual Transaxle

850-950

Swift

⁽¹⁾ 800-900

⁽¹⁾	Checked with A/C off.

IAC DUTY AT SPECIFIED IDLE SPEED ⁽¹⁾

Application

⁽²⁾ Percent

Esteem

5-25

Sidekick 1.6L & X-90

40-60

Sidekick 1.8L

30-45

Swift

8-25

⁽¹⁾	See IDLE SPEED SPECIFICATIONS table.

⁽²⁾	Engine at normal operating temperature with A/C off (if equipped).

IGNITION TIMING (Degrees BTDC @ RPM) ⁽¹⁾

Application

Man. Trans.

Auto. Trans.

Esteem

⁽²⁾ 2-8 @ 650-750

⁽²⁾ 2-8 @ 700-800

Sidekick 1.6L & X-90

⁽³⁾ 4-6 @ 750-850

Sidekick 1.8L

⁽⁴⁾ 4-6 @ 750-850

Swift

⁽⁵⁾ 2-8 @ 800-900

⁽¹⁾	See ADJUSTMENTS article for adjustment procedures.

⁽²⁾	With jumper wire installed between terminals "D" and "E" of test connector, located in relay box. See Fig 1 .

⁽³⁾	With jumper wire installed between terminals "D" and "E" of test connector, located near coolant recovery bottle. See Fig 2 .

⁽⁴⁾	With jumper wire installed between terminals No. 4 and 5 of test connector, located next to left strut tower. See Fig 3 .

⁽⁵⁾	With jumper wire installed between test switch terminal and ground terminal of test connector, located behind glove box. See Fig 4 .

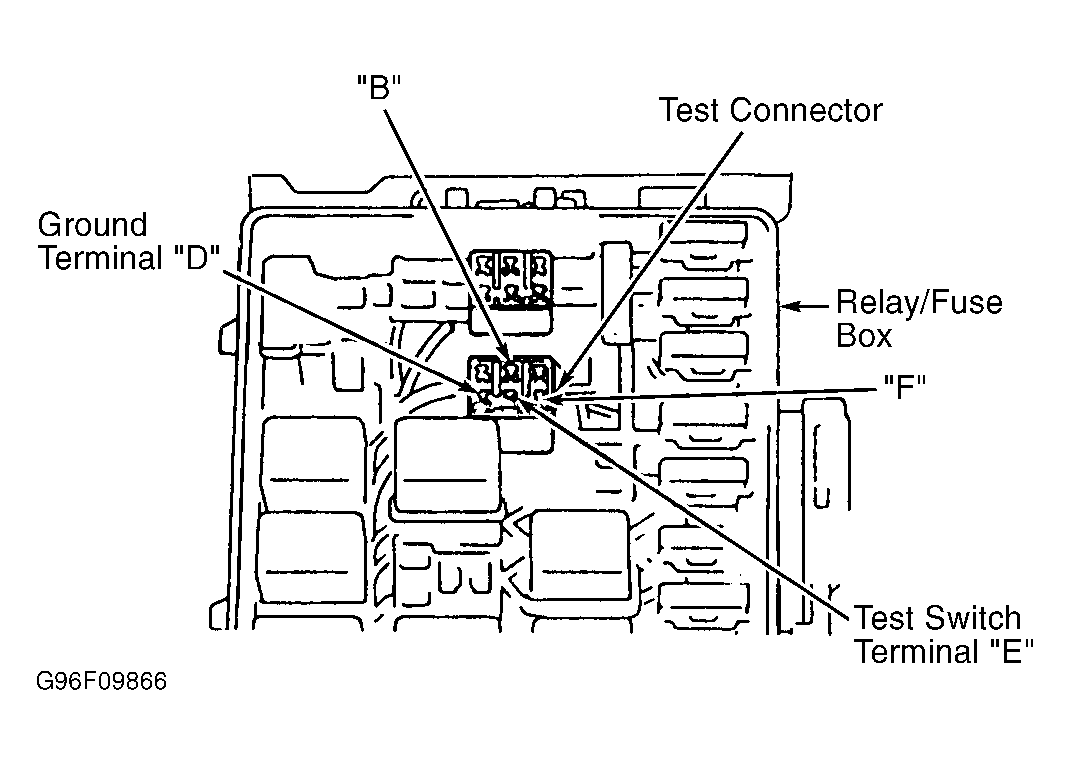

Fig 1: Identifying Test Connector Terminals (Esteem)

Courtesy of SUZUKI OF AMERICA CORP.

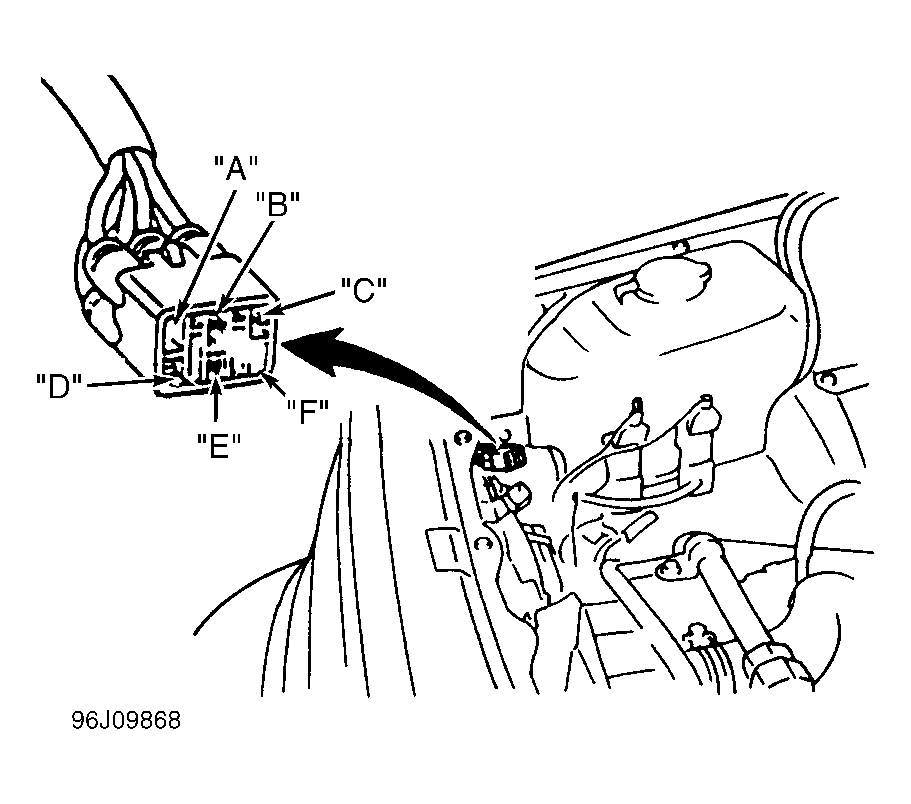

Fig 2: Identifying Test Connector Terminals (Sidekick 1.6L & X-90)

Courtesy of SUZUKI OF AMERICA CORP.

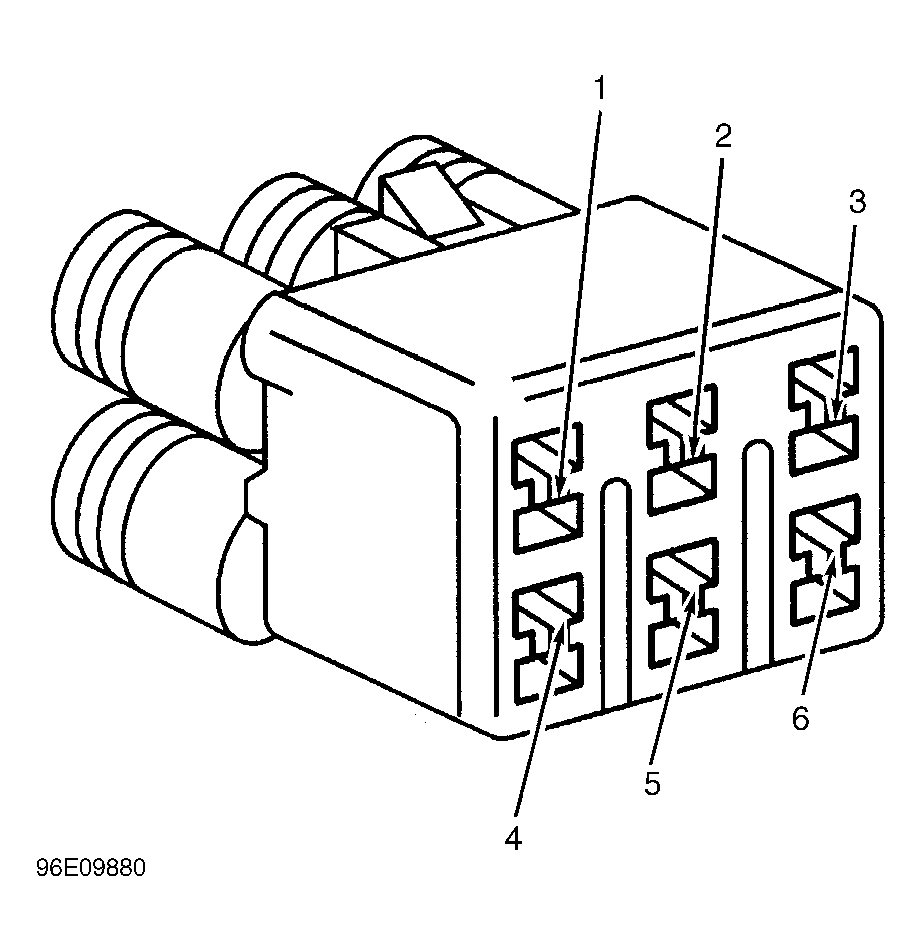

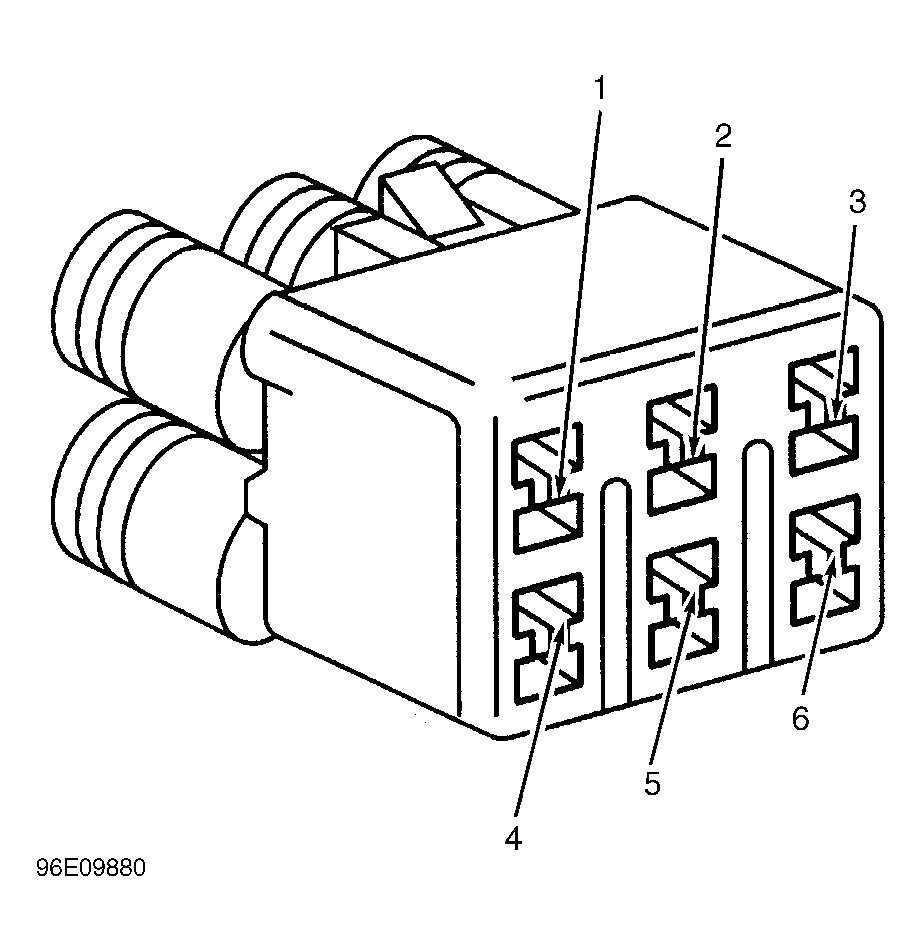

Fig 3: Identifying Test Connector Terminals (Sidekick 1.8L)

Courtesy of SUZUKI OF AMERICA CORP.

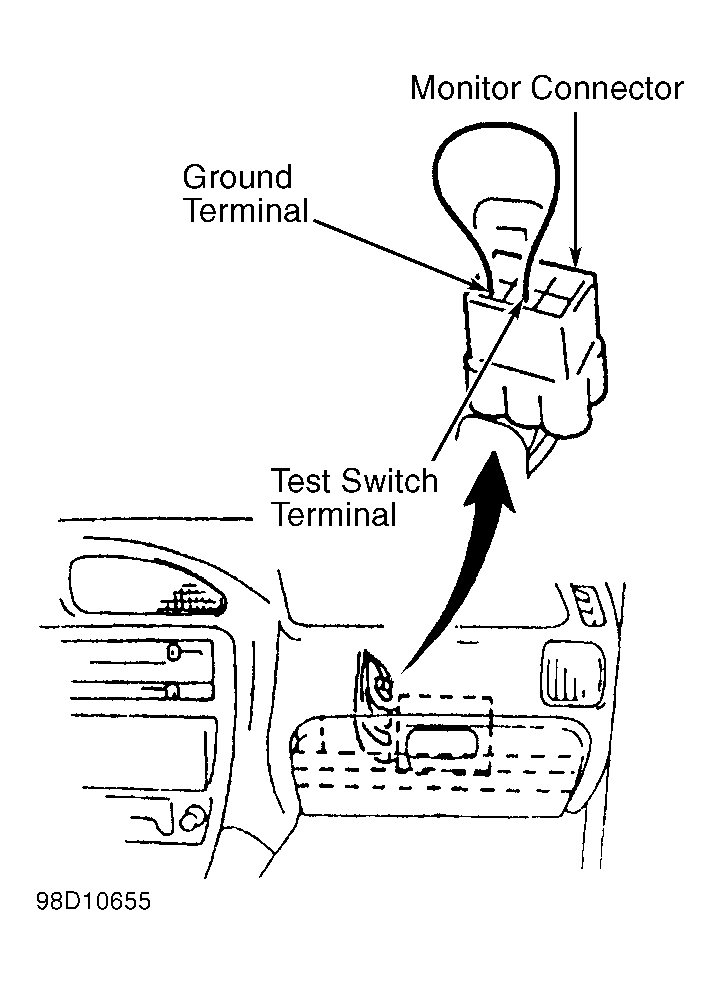

Fig 4: Identifying Test Connector Terminals (Swift)

Courtesy of SUZUKI OF AMERICA CORP.
