Sidekick 1.8L

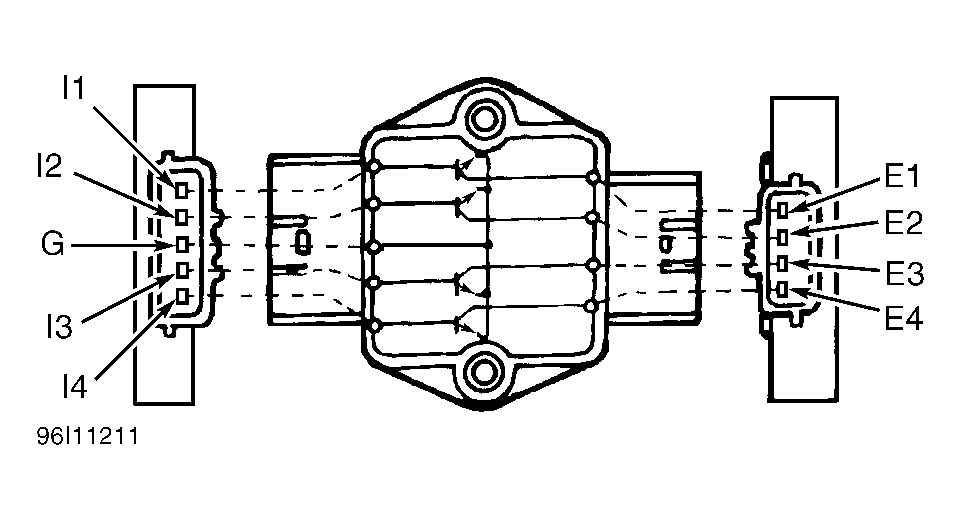

Disconnect ignitor harness connectors and remove ignitor. Using DVOM, connect leads to ignitor and check for continuity between specified terminals of corresponding cylinders. See IGNITOR CONTINUITY table. See Fig 1 . Replace ignitor if continuity is not as specified.
IGNITOR CONTINUITY
| Positive Lead | Negative Lead | Continuity | ||
|---|---|---|---|---|
| E | I | (1) Yes | ||
| E | G | (1) Yes | ||
| I | G | (1) Yes | ||
| I | E | No | ||
| G | E | No | ||
| G | I | (1) Yes | ||
|
||||
