Circuit Resistance Charts

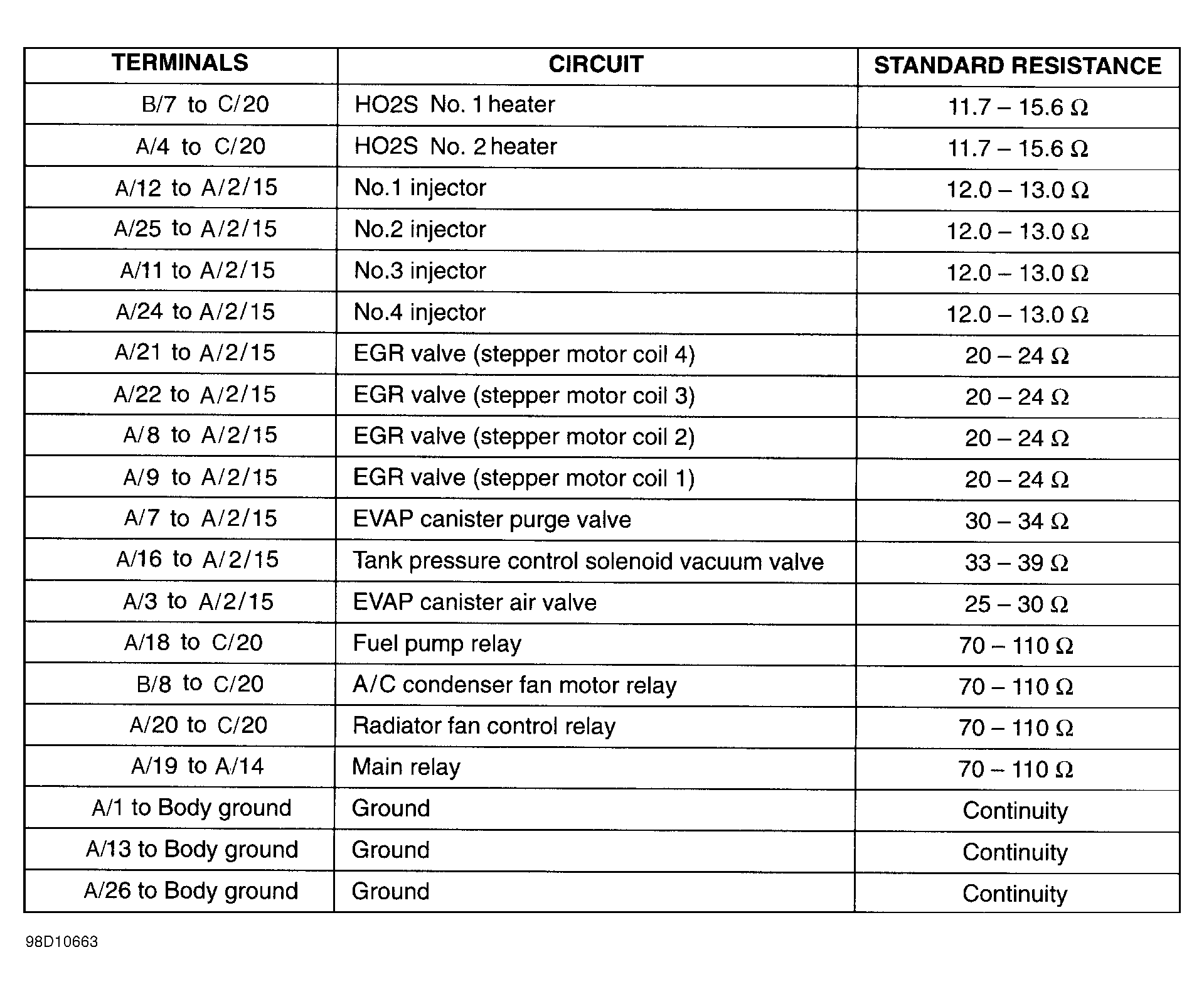

Fig 1: Circuit Resistance Chart (Esteem)
G98D10663Courtesy of SUZUKI OF AMERICA CORP.

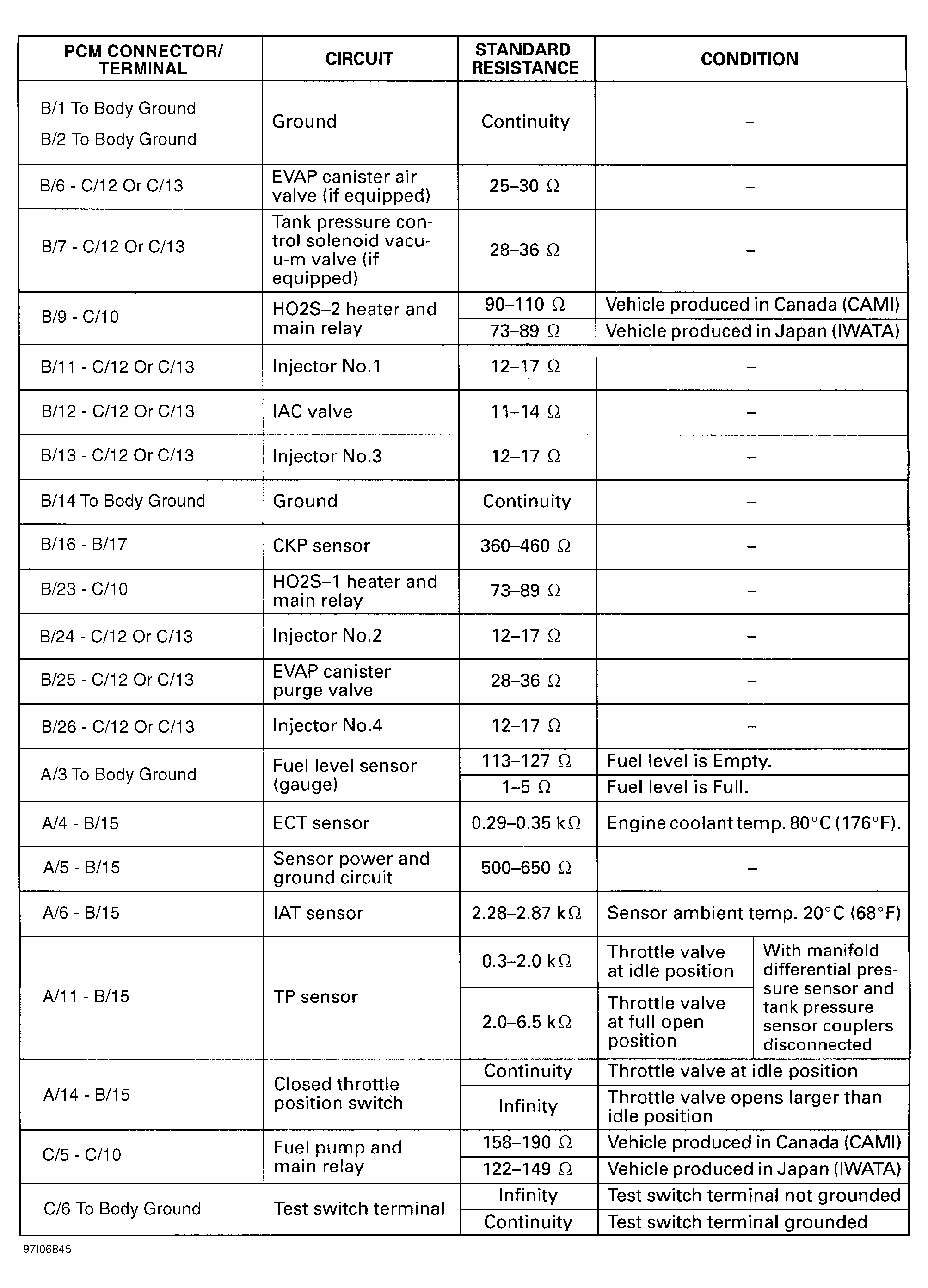

Fig 2: Circuit Resistance Chart (Sidekick 1.6L & X-90 With 3-Speed A/T Or M/T - 1 Of 2)
G97I06845Courtesy of SUZUKI OF AMERICA CORP.

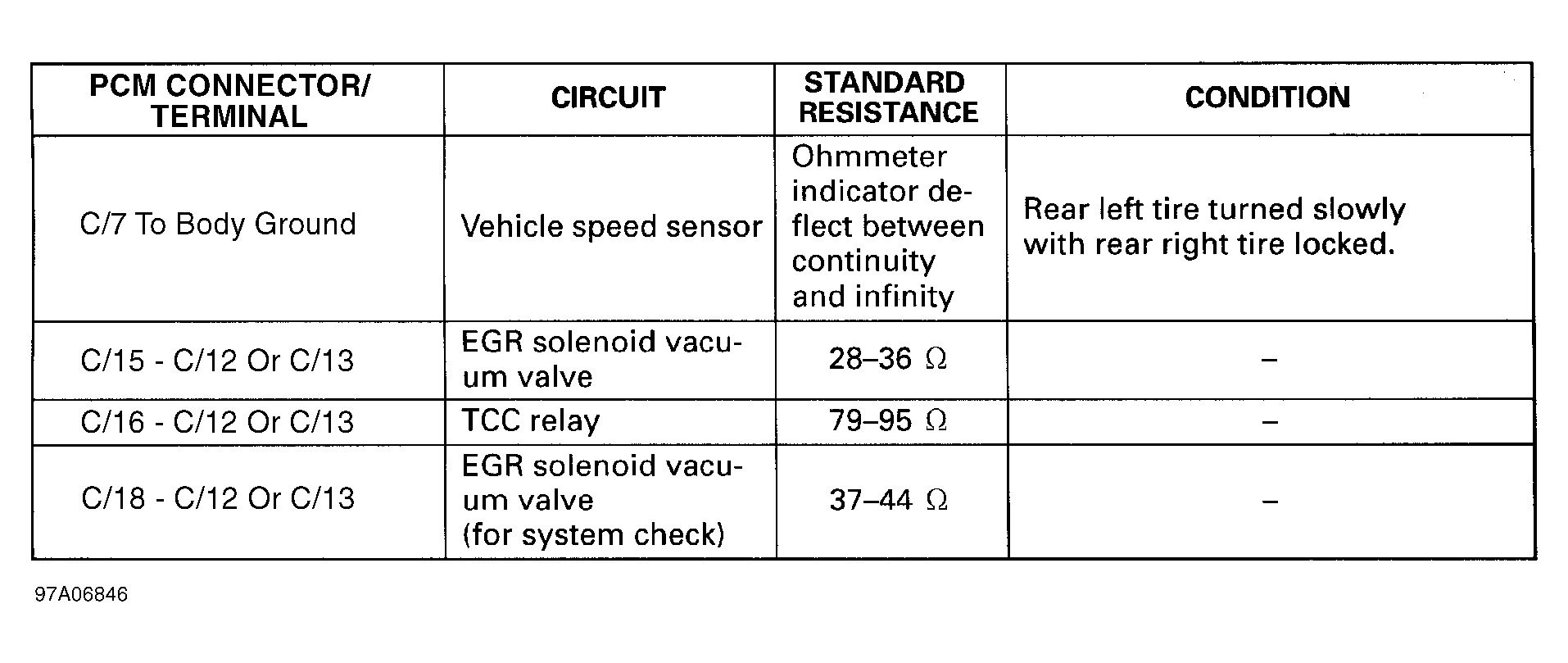

Fig 3: Circuit Resistance Chart (Sidekick 1.6L & X-90 With 3-Speed A/T Or M/T - 2 Of 2)
G97A06846Courtesy of SUZUKI OF AMERICA CORP.

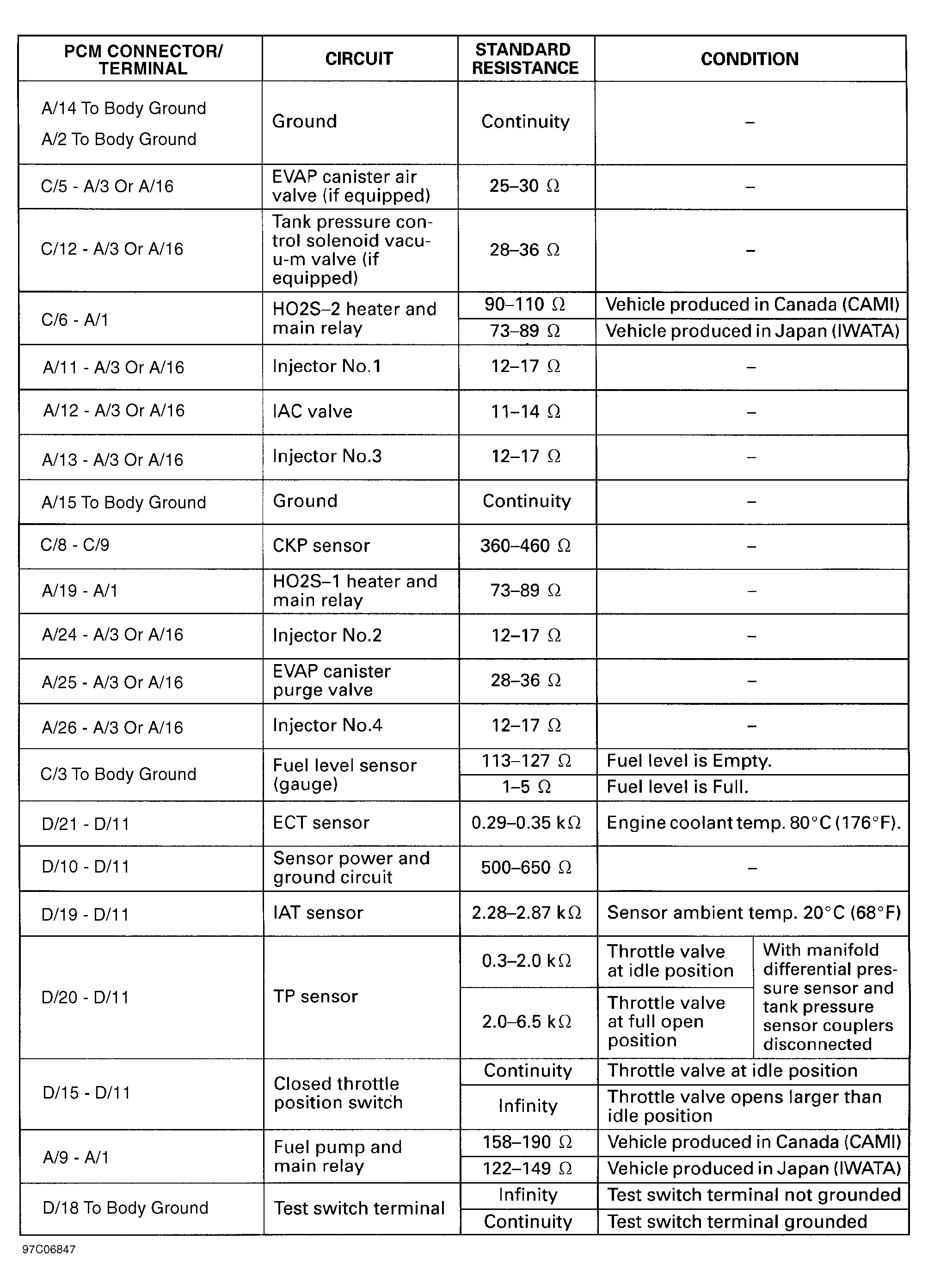

Fig 4: Circuit Resistance Chart (Sidekick 1.6L & X-90 With 4-Speed A/T - 1 Of 2)
G97C06847Courtesy of SUZUKI OF AMERICA CORP.

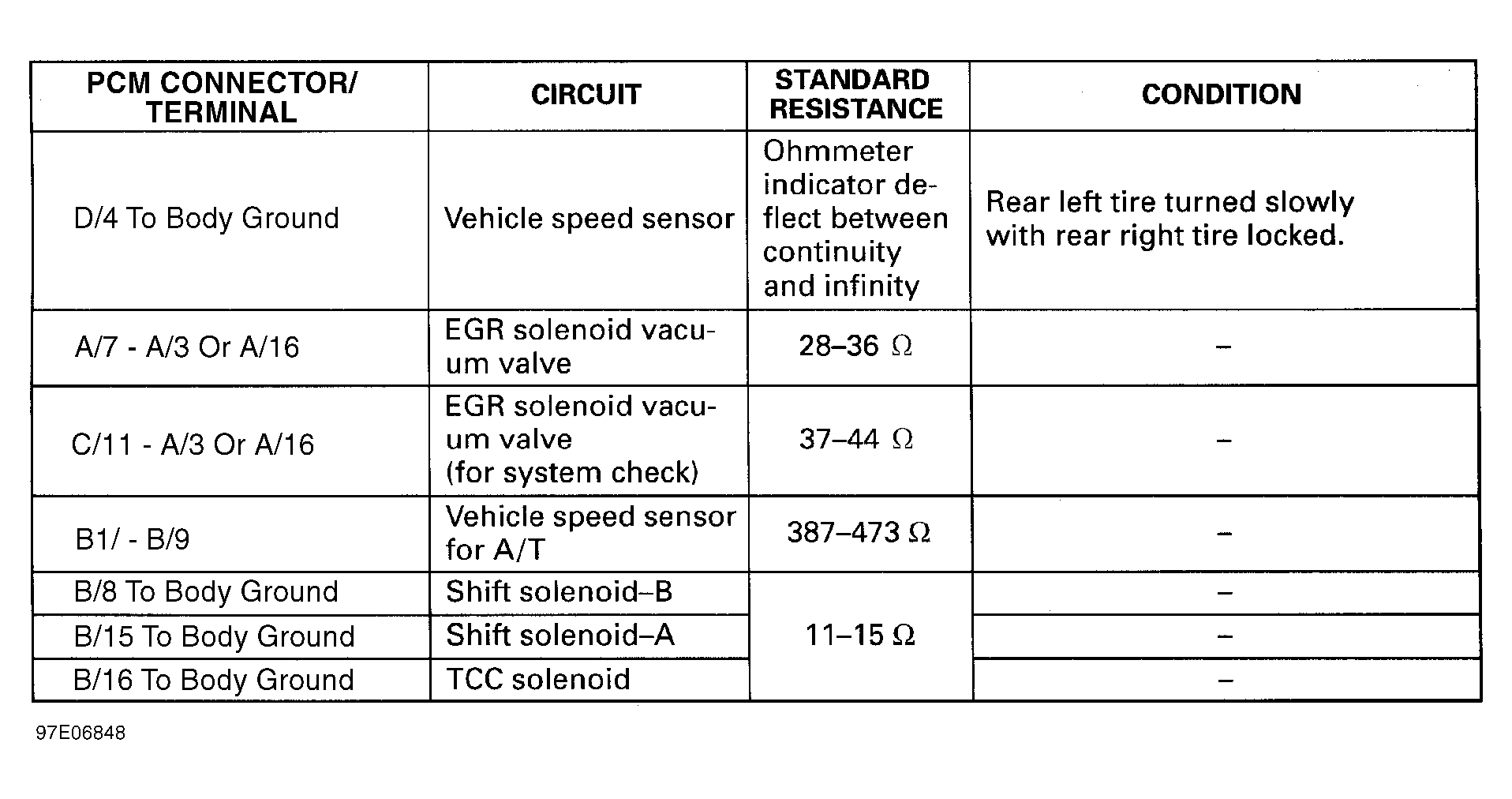

Fig 5: Circuit Resistance Chart (Sidekick 1.6L & X-90 With 4-Speed A/T - 2 Of 2)
G97E06848Courtesy of SUZUKI OF AMERICA CORP.

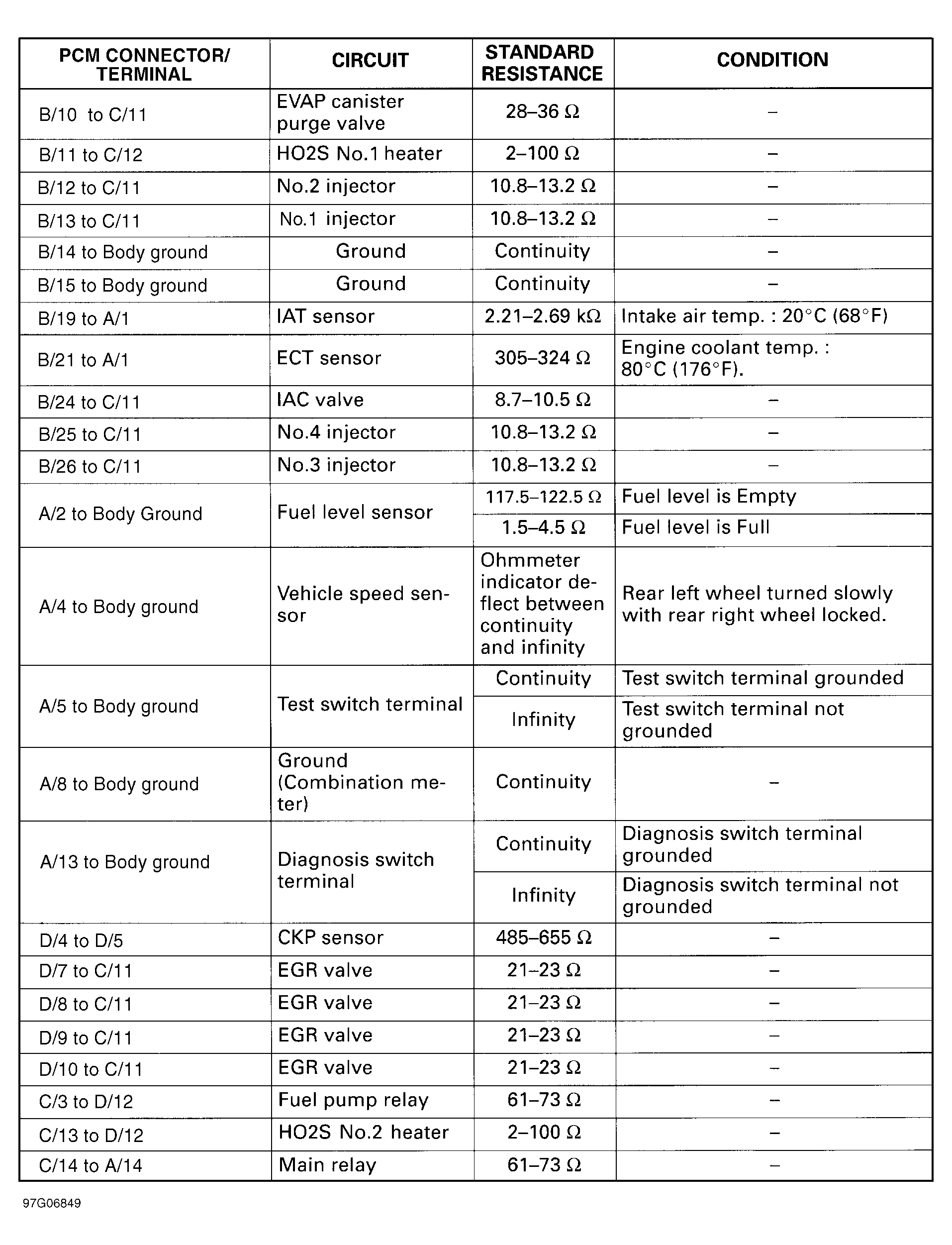

Fig 6: Circuit Resistance Chart (Sidekick 1.8L With Manual Transmission)
G97G06849Courtesy of SUZUKI OF AMERICA CORP.

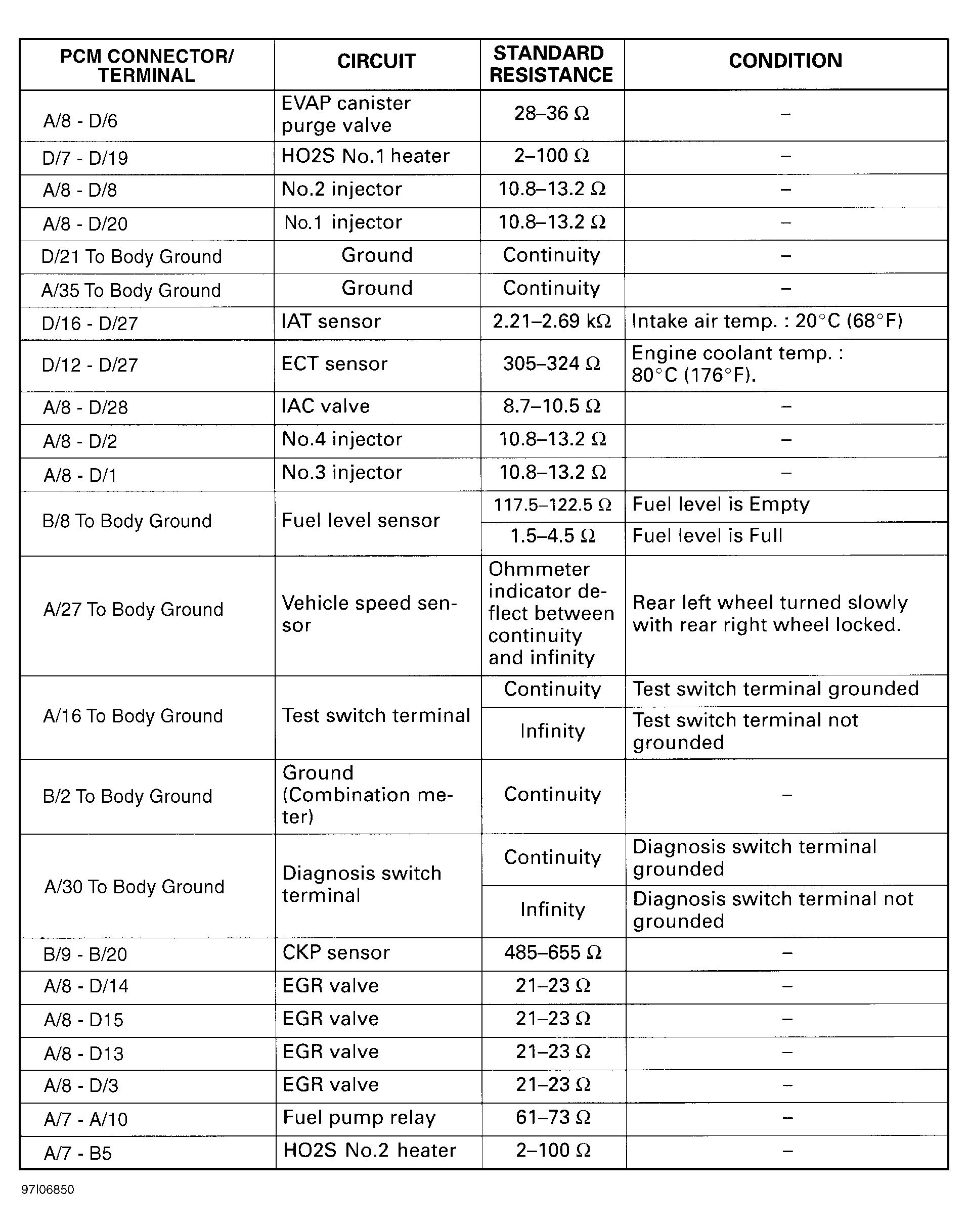

Fig 7: Circuit Resistance Chart (Sidekick 1.8L With Automatic Transmission - 1 Of 2)
G97I06850Courtesy of SUZUKI OF AMERICA CORP.

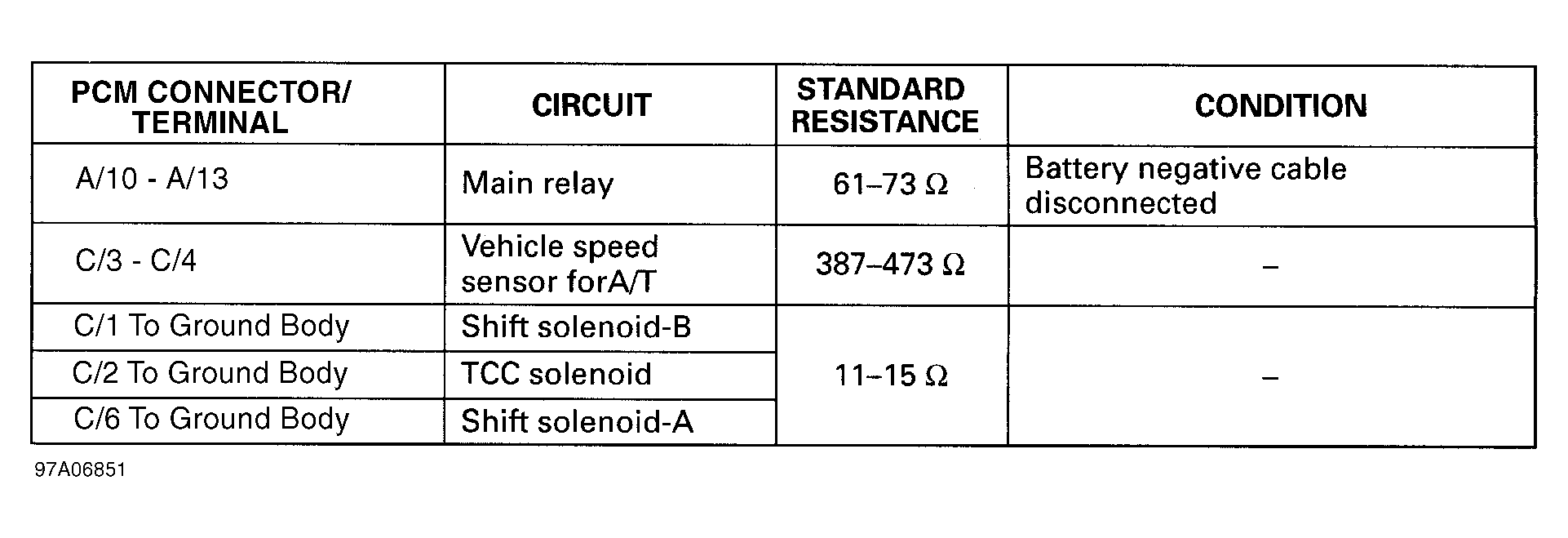

Fig 8: Circuit Resistance Chart (Sidekick 1.8L With Automatic Transmission - 2 Of 2)
G97A06851Courtesy of SUZUKI OF AMERICA CORP.

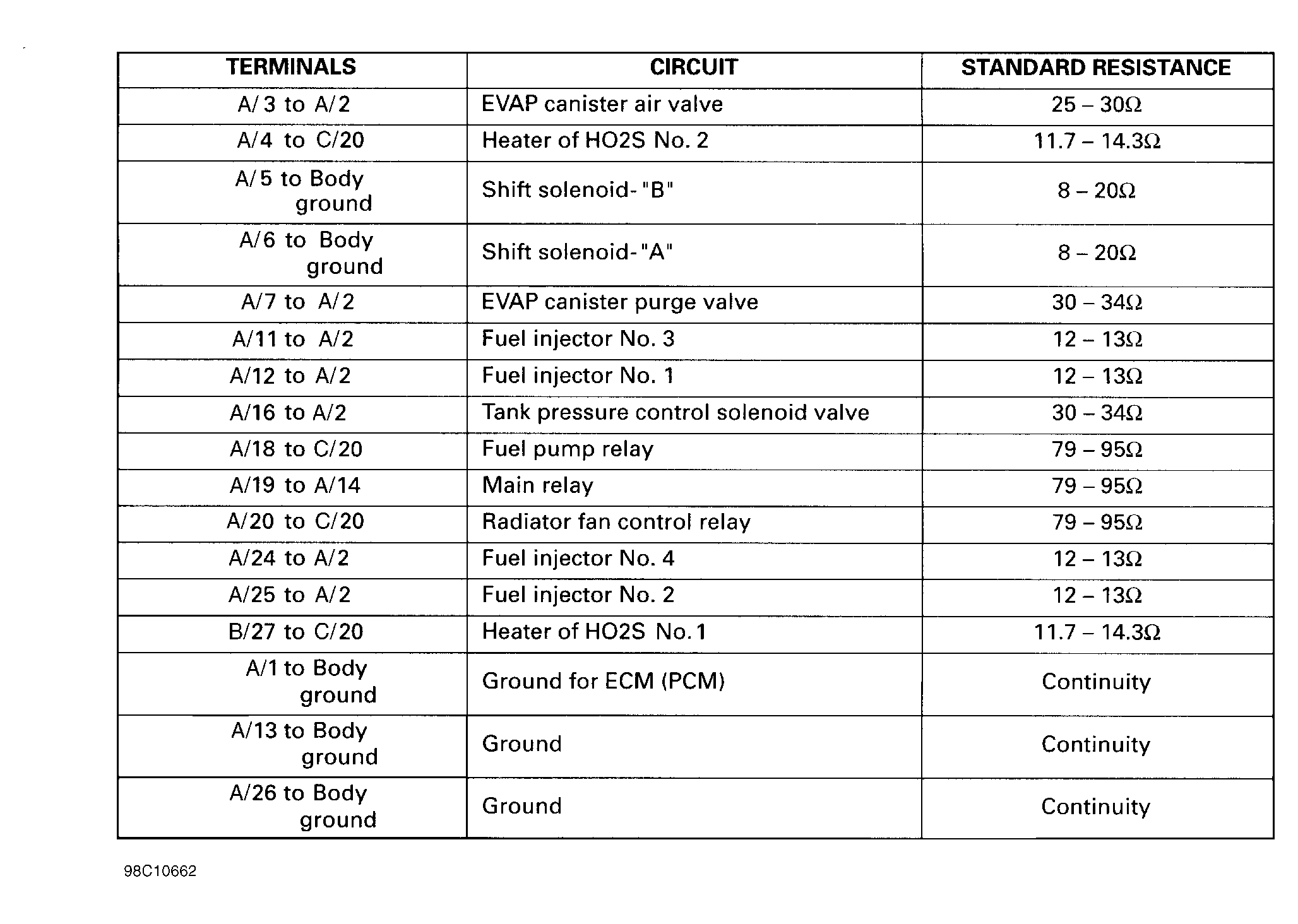

Fig 9: Circuit Resistance Chart (Swift)
G98C10662Courtesy of SUZUKI OF AMERICA CORP.
