Throttle Position (TP) Sensor: Esteem

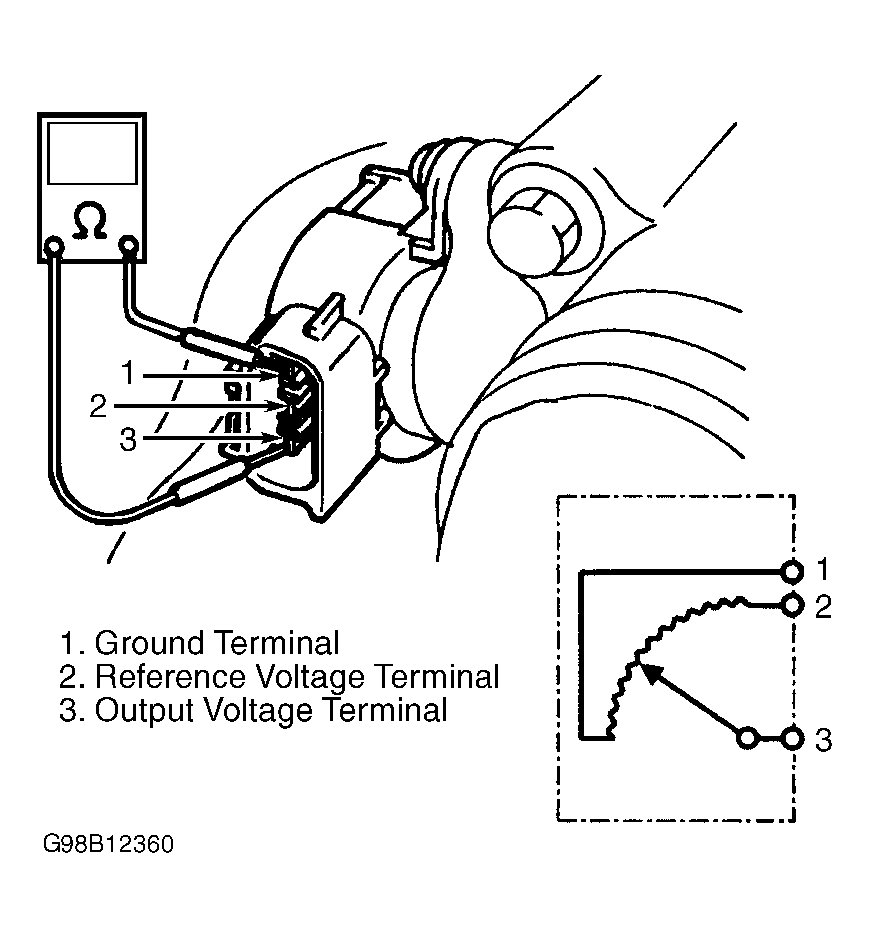

Turn ignition off. Disconnect TP sensor connector. Using an ohmmeter, check resistance between specified terminals of TP sensor connector. See the THROTTLE POSITION (TP) SENSOR RESISTANCE  table. See Figure. Replace sensor if readings are not as specified.
