Pull-In Test

Ensure field coil lead wire is disconnected from starter solenoid. Connect battery voltage and ground to starter. See Fig 1 . Replace starter solenoid if drive pinion does not move outward. Disconnect test equipment.

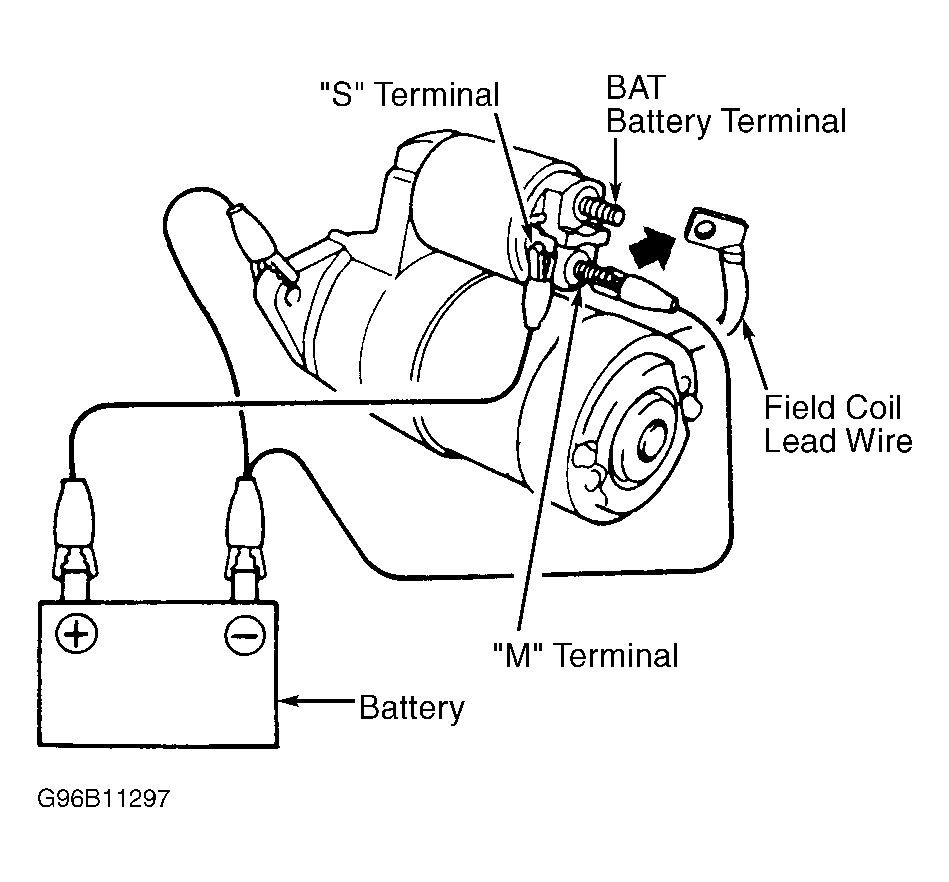

Fig 1: Identifying Starter Solenoid Terminals & Performing Starter Solenoid Pull-In Test

Courtesy of SUZUKI OF AMERICA CORP.
