Repair and Diagnosis: Electrical: Starters: Overhaul

NOTE: See Fig 1 , Fig 2 or Fig 3 for starter overhaul.

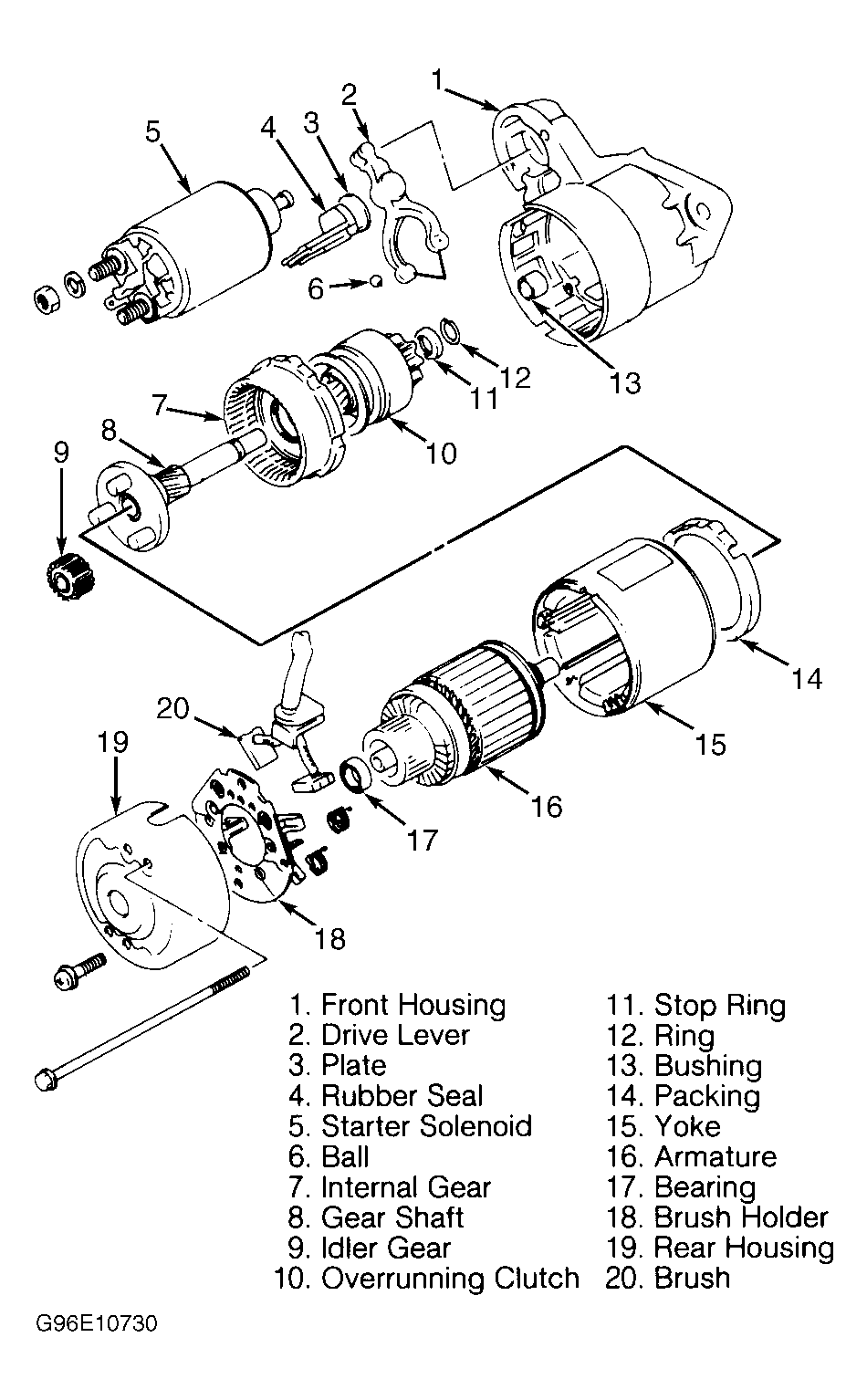

Fig 1: Exploded View Of Starter (Esteem & Swift With A/T)

Courtesy of SUZUKI OF AMERICA CORP.

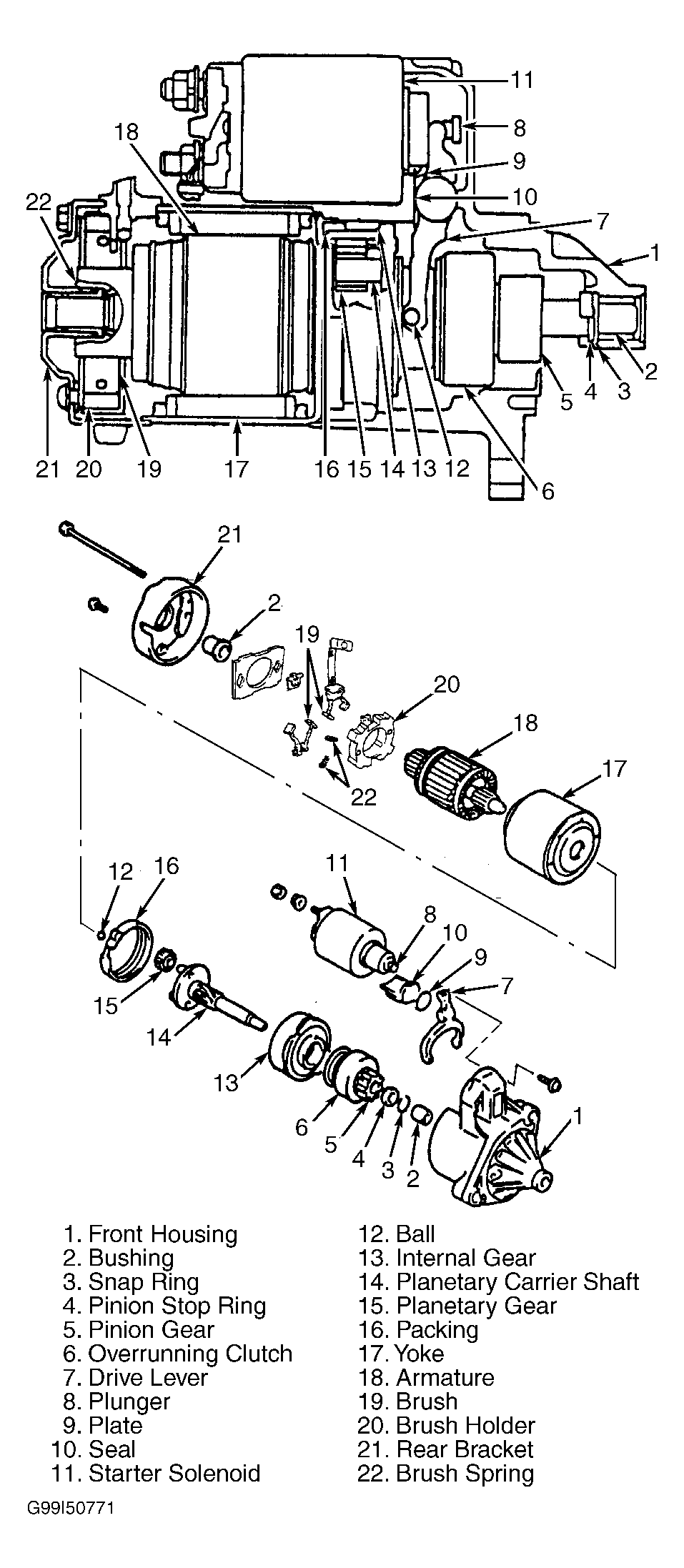

Fig 2: Exploded View Of Starter (Grand Vitara & Vitara)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Exploded View Of Starter (Swift With M/T)

Courtesy of SUZUKI OF AMERICA CORP.
