Esteem 1.6L

NOTE: Ignition coil resistance testing procedure is available for Esteem 1.6L only.

Remove secondary coil wires. Disconnect harness connector from ignition coil. Using DVOM, measure secondary coil resistance. See Fig 1 . Replace coil if resistance is not 11,100-15,000.

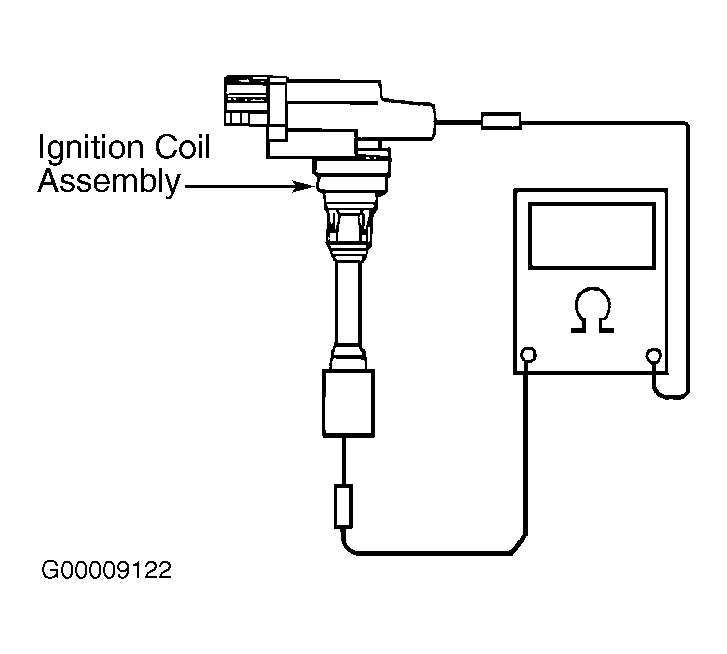

Fig 1: Testing Ignition Coil Resistance (1.6L Esteem)

Courtesy of SUZUKI OF AMERICA CORP.
