Component Locations

NOTE: For component locations, refer to appropriate illustrations. See figs.

Fig 1: Identifying Component Locations (Esteem 1.6L)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Component Locations (Esteem 1.8L)

Courtesy of SUZUKI OF AMERICA CORP.

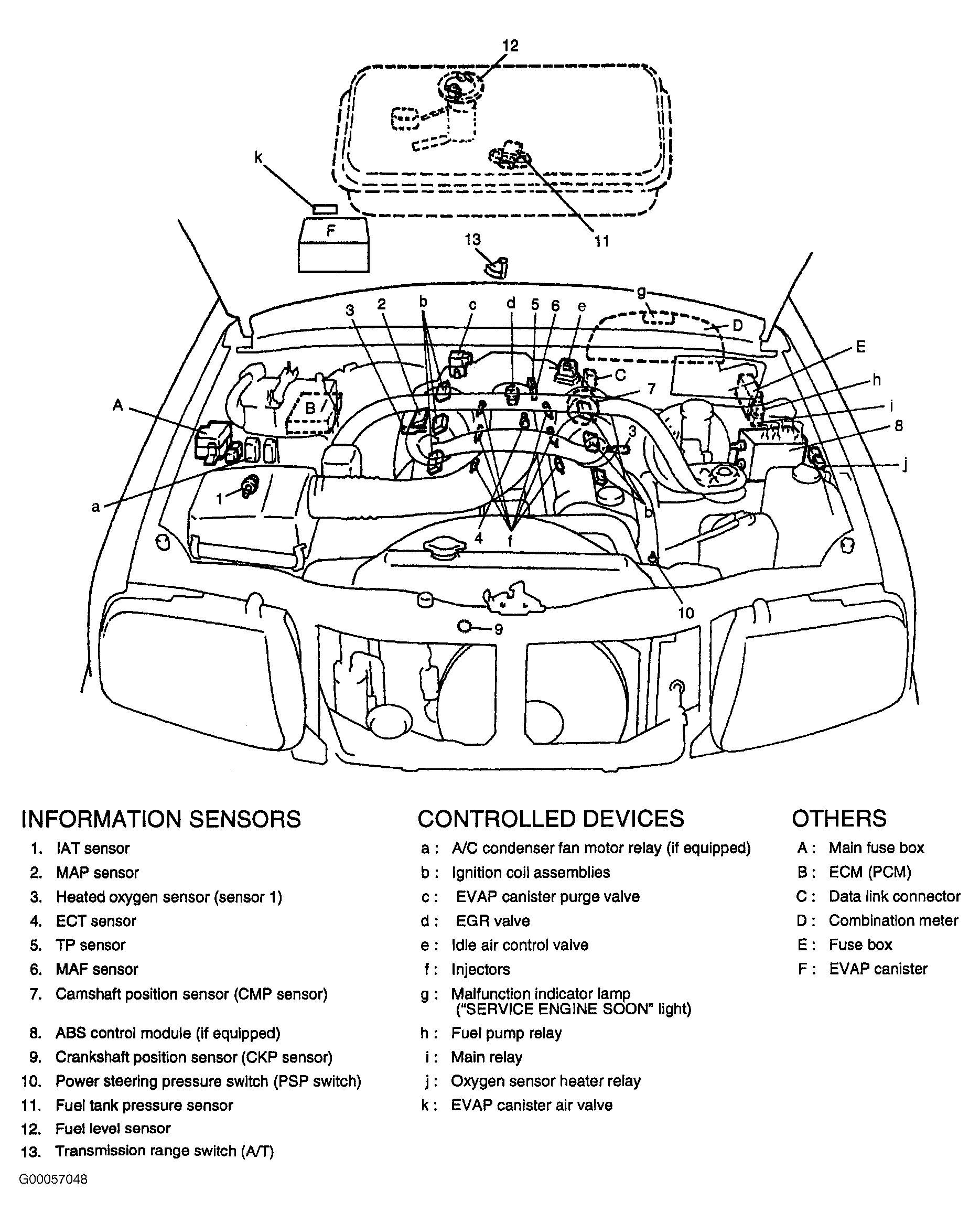

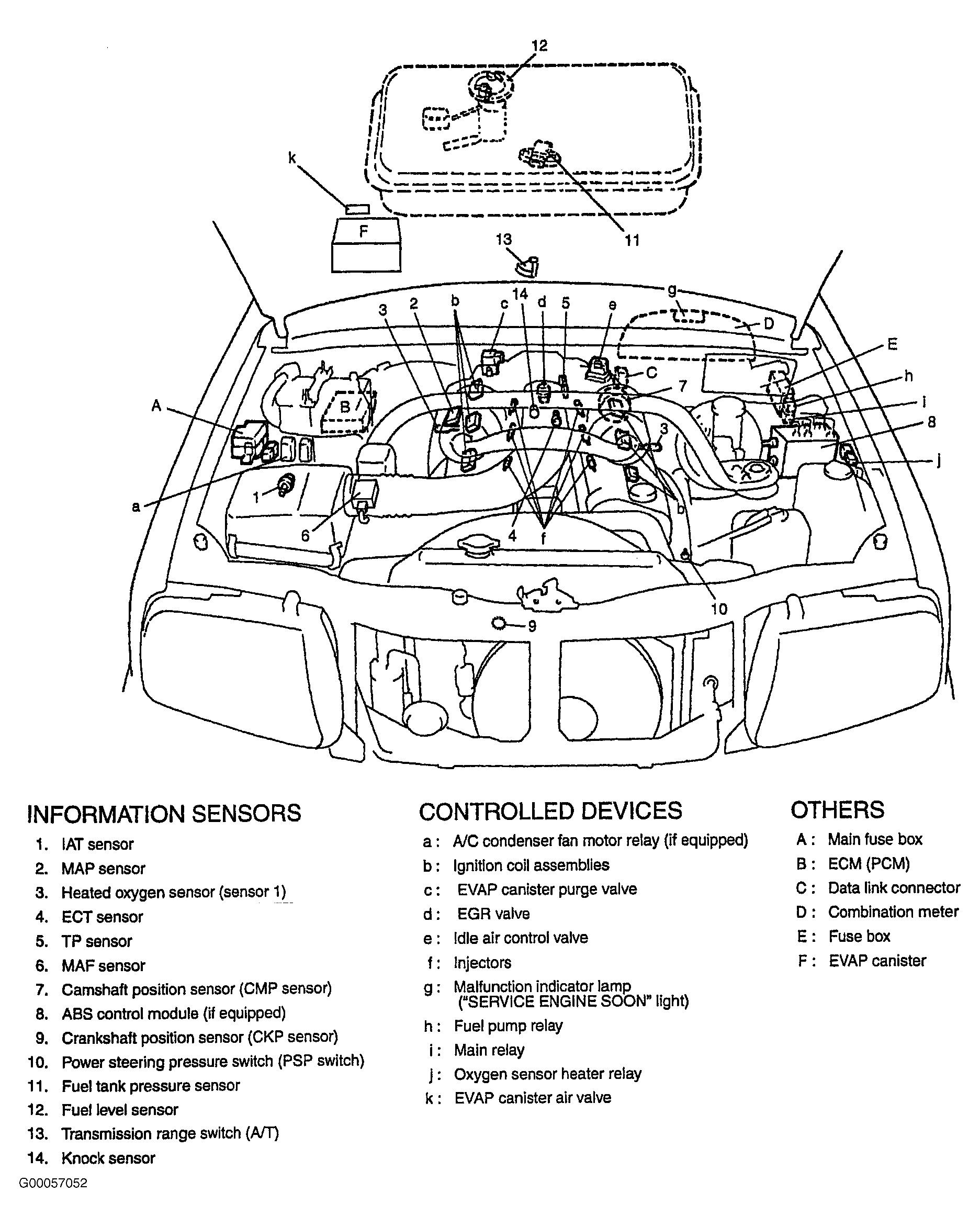

Fig 3: Identifying Component Locations (Grand Vitara 2.5L)

Courtesy of SUZUKI OF AMERICA CORP.

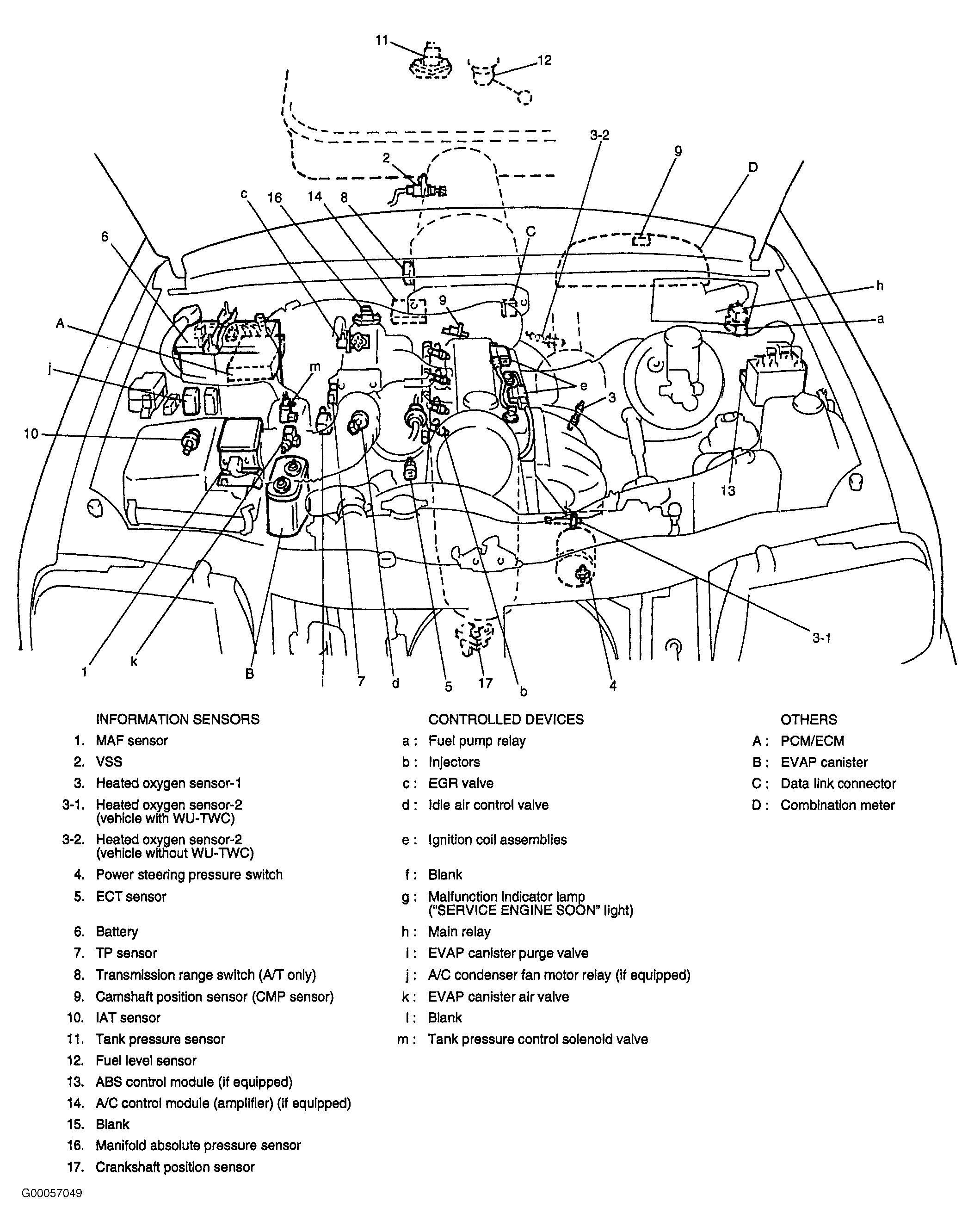

Fig 4: Identifying Component Locations (Vitara 1.6L)

Courtesy of SUZUKI OF AMERICA CORP.

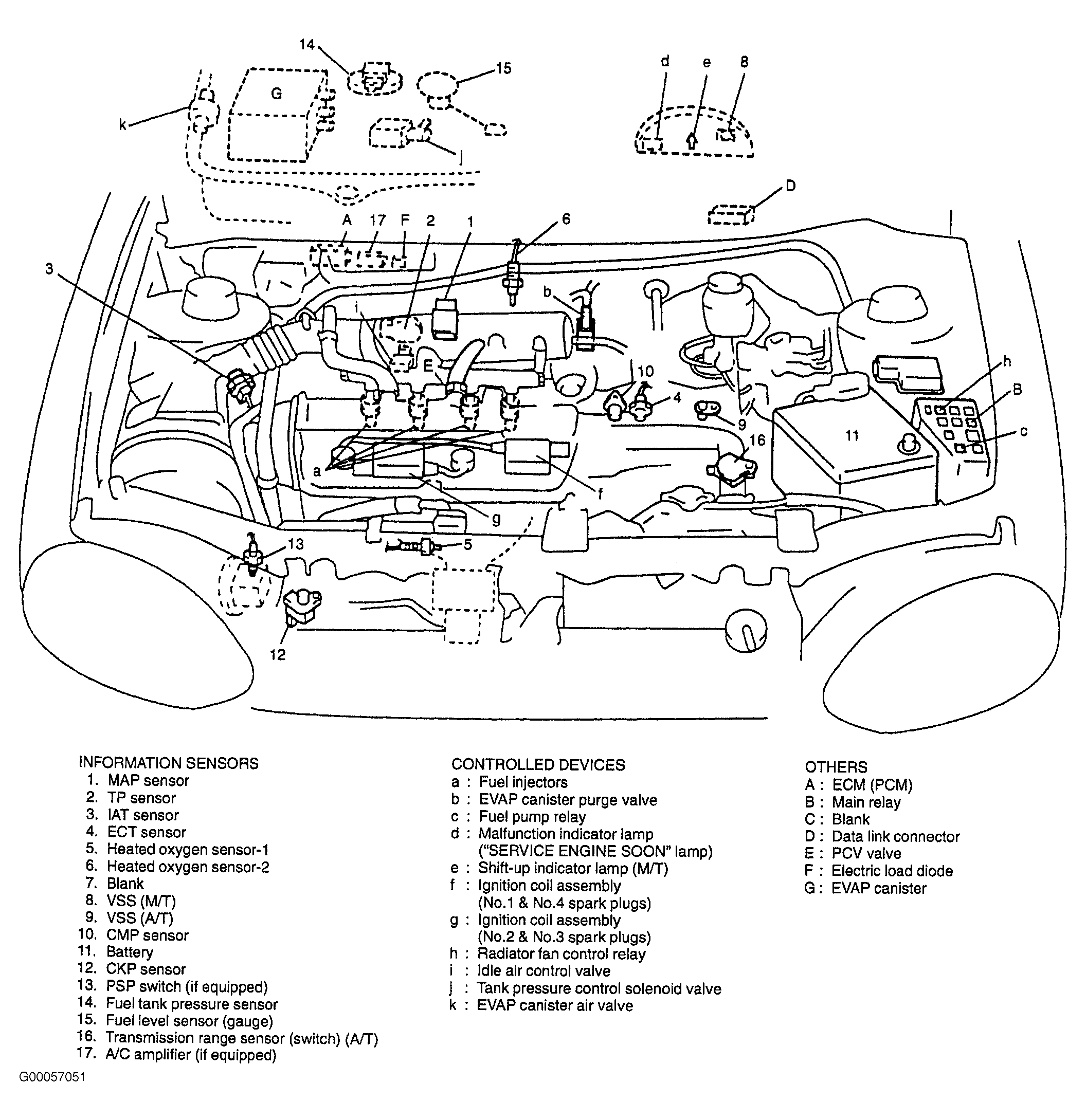

Fig 5: Identifying Component Locations (Vitara 2.0L)

Courtesy of SUZUKI OF AMERICA CORP.

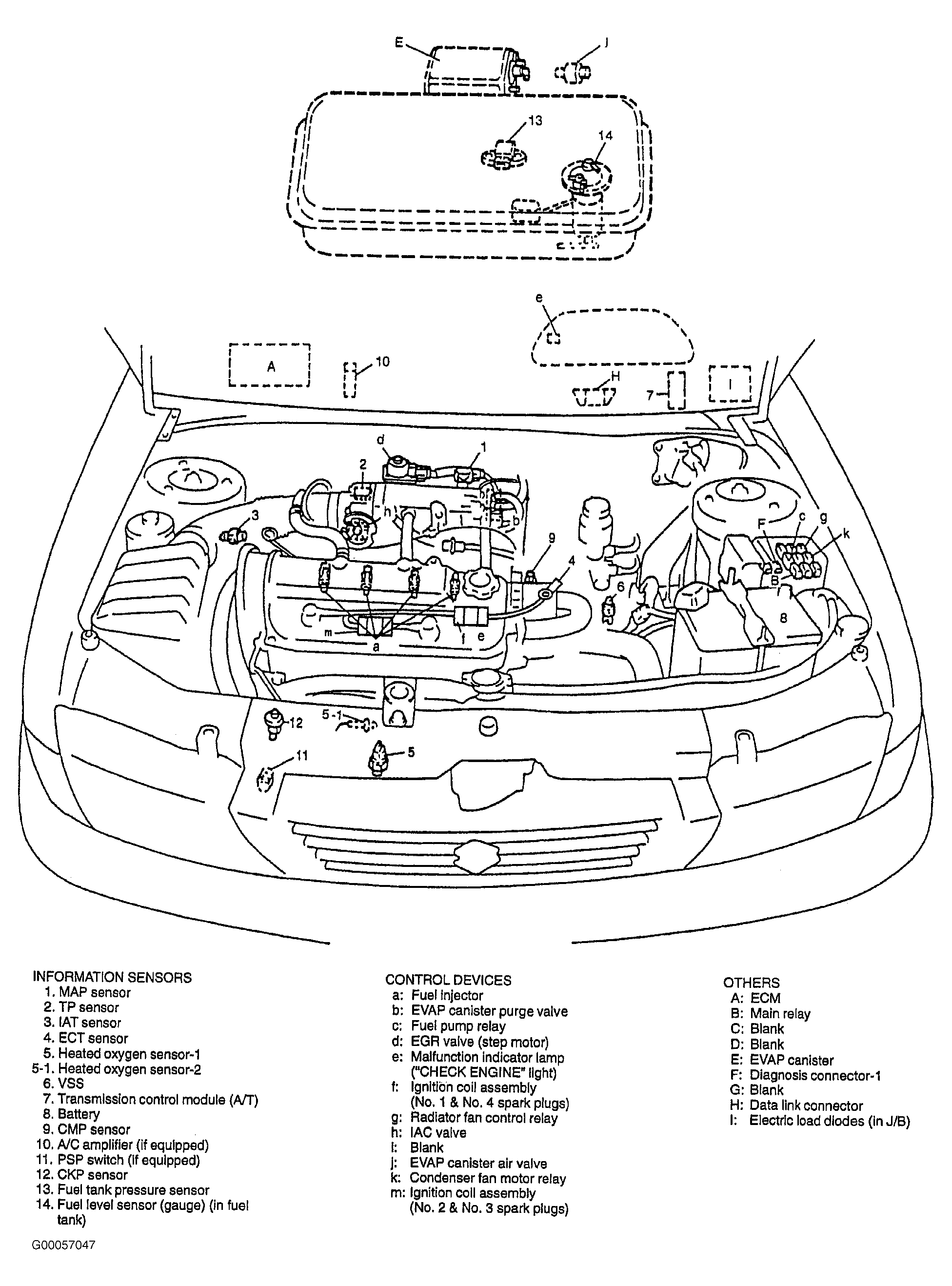

Fig 6: Identifying Component Location (Swift 1.3L)

Courtesy of SUZUKI OF AMERICA CORP.

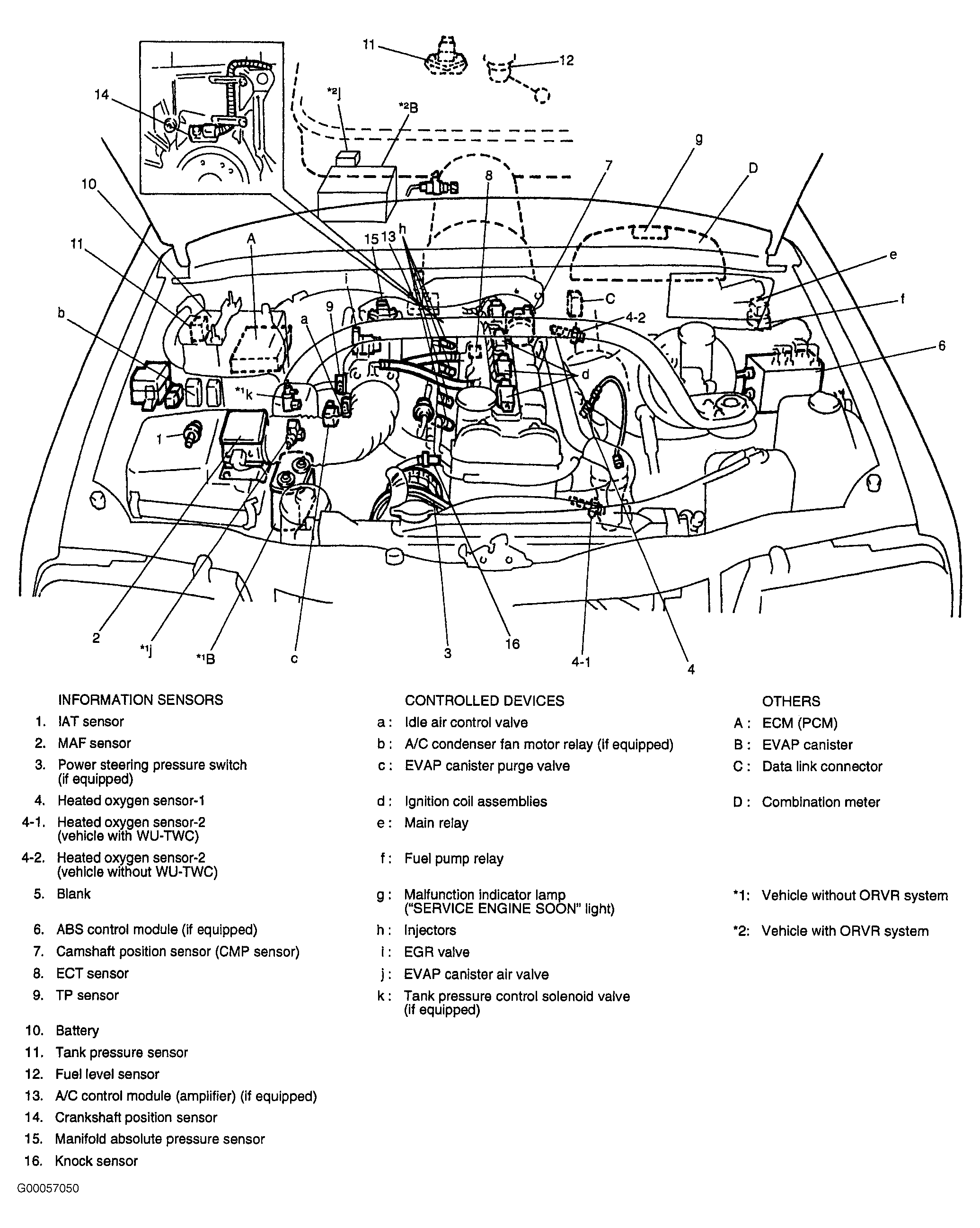

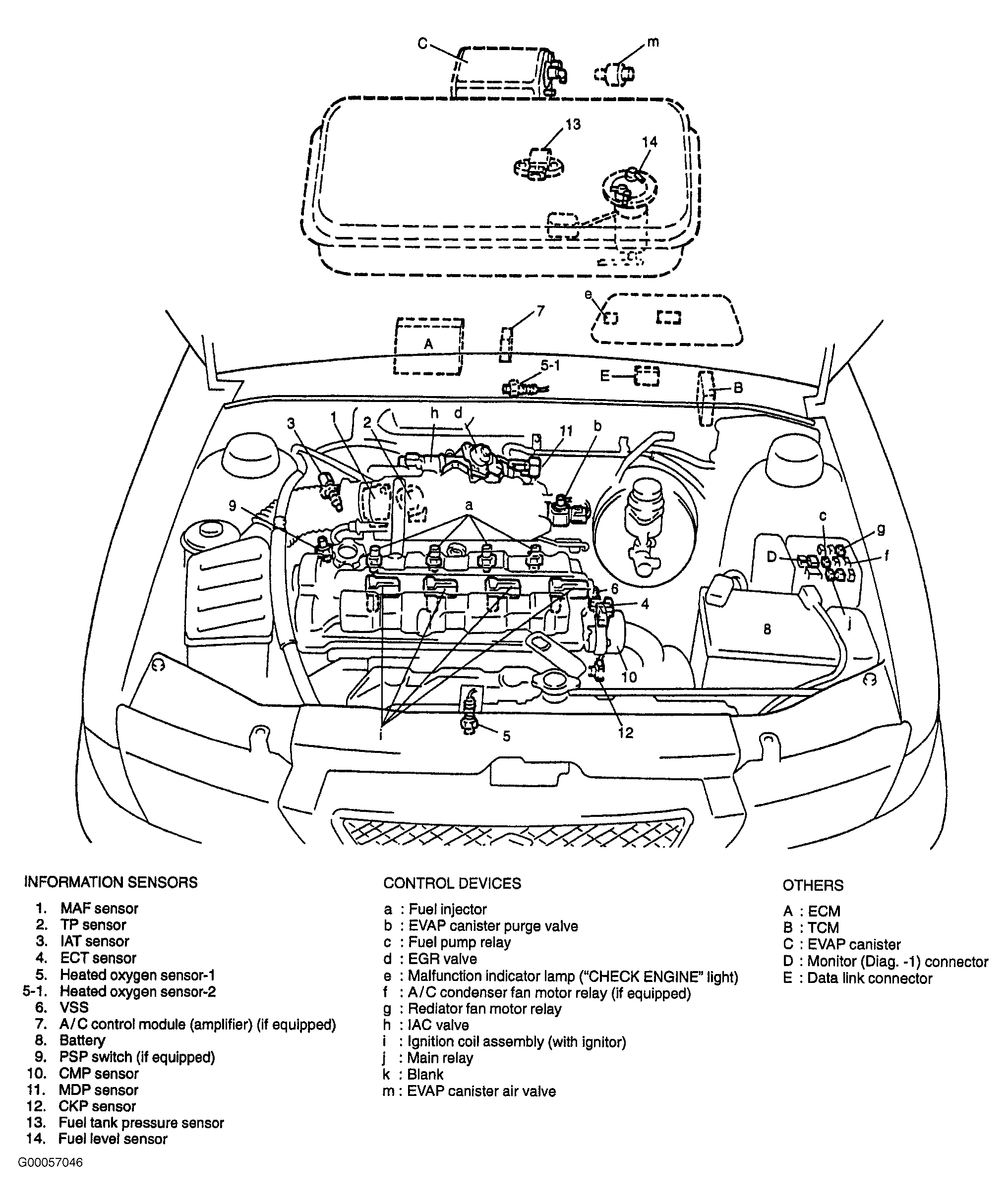

Fig 7: Identifying Component Locations (XL-7 2.7L)

Courtesy of SUZUKI OF AMERICA CORP.
