Intake Air Temperature Sensor
- Disconnect Intake Air Temperature (IAT) sensor connector. Turn ignition on. Check voltage between ground and Gray/Red wire (Esteem, Vitara 1.6L and 2.0L), Light Blue wire (Grand Vitara 2.5L and XL-7) or Gray wire (Swift) terminal of connector. If voltage is not 4-6 volts (4.5-5.5 on Grand Vitara and XL-7), check wiring harness for an open or short. If voltage is as specified, go to next step.

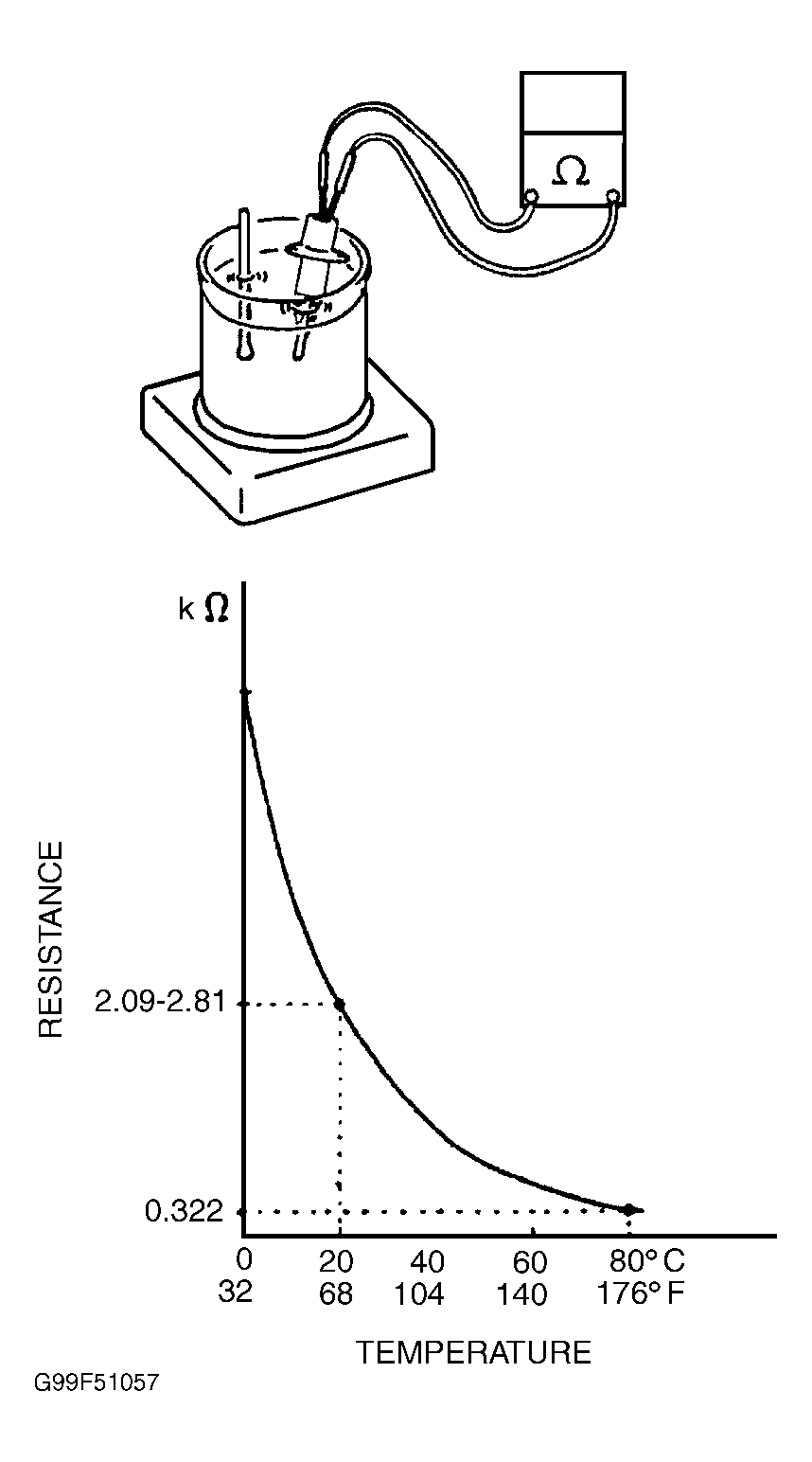

- Remove IAT sensor and place in container of water with a thermometer. Heat water to specified temperature and check resistance. See IAT SENSOR RESISTANCE SPECIFICATIONS table. See Fig 1 . Replace IAT sensor if resistance is not within specification.
IAT SENSOR RESISTANCE SPECIFICATIONS
| Sensor Temperature - °F (°C) | Resistance - k/ohms | |
|---|---|---|
| Esteem & Swift | ||
| 68 (20) | 2.21-2.69 | |
| 176 (80) | .322 | |
| Grand Vitara, Vitara & XL-7 | ||
| 68 (20) | 2.09-2.81 | |
| 176 (80) | .322 | |
