Front Bumper

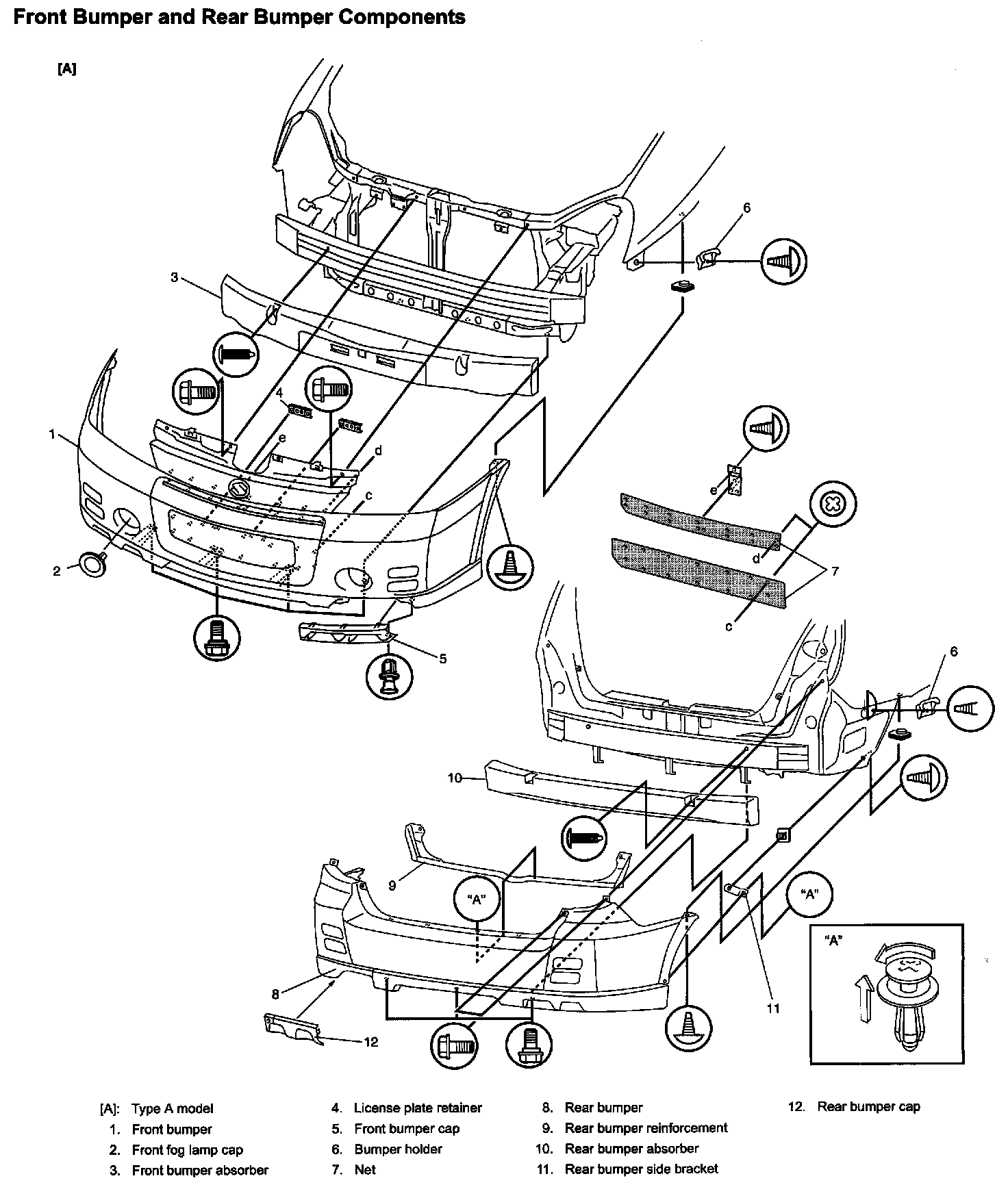

Front Bumper And Rear Bumper Components Part 1:

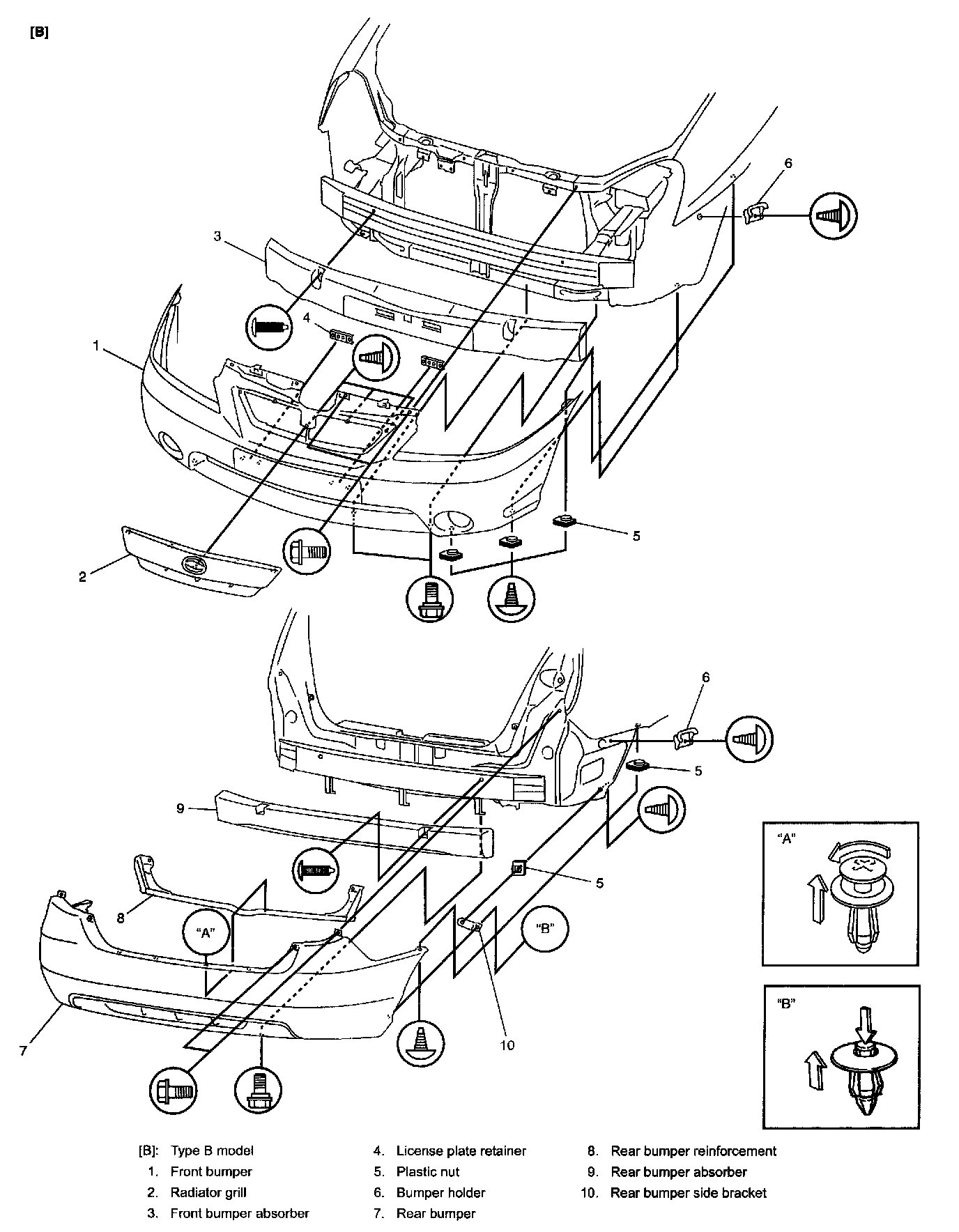

Front Bumper And Rear Bumper Components Part 2:
