Keyless Entry

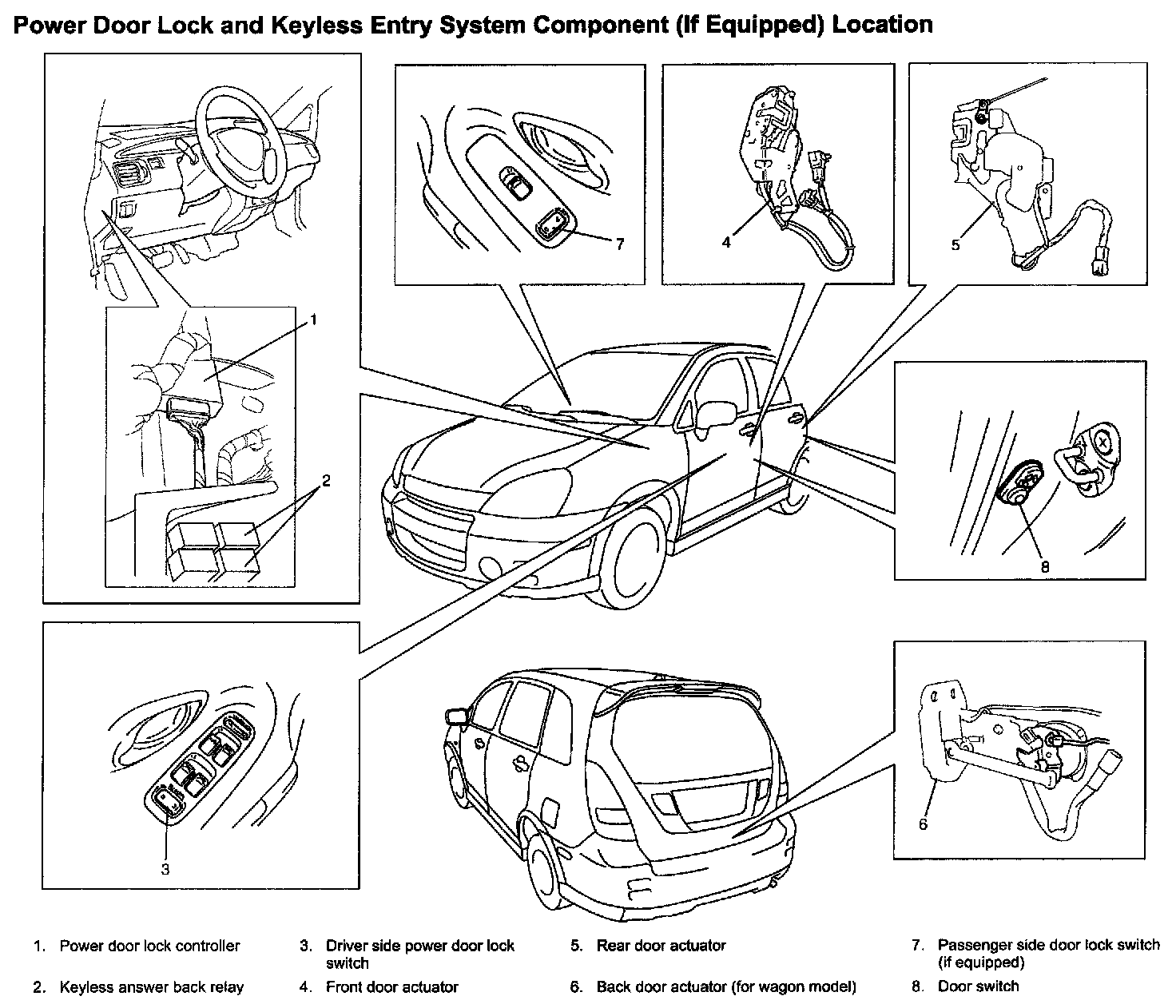

Power Door Lock And Keyless Entry System Component (If Equipped) Location.:

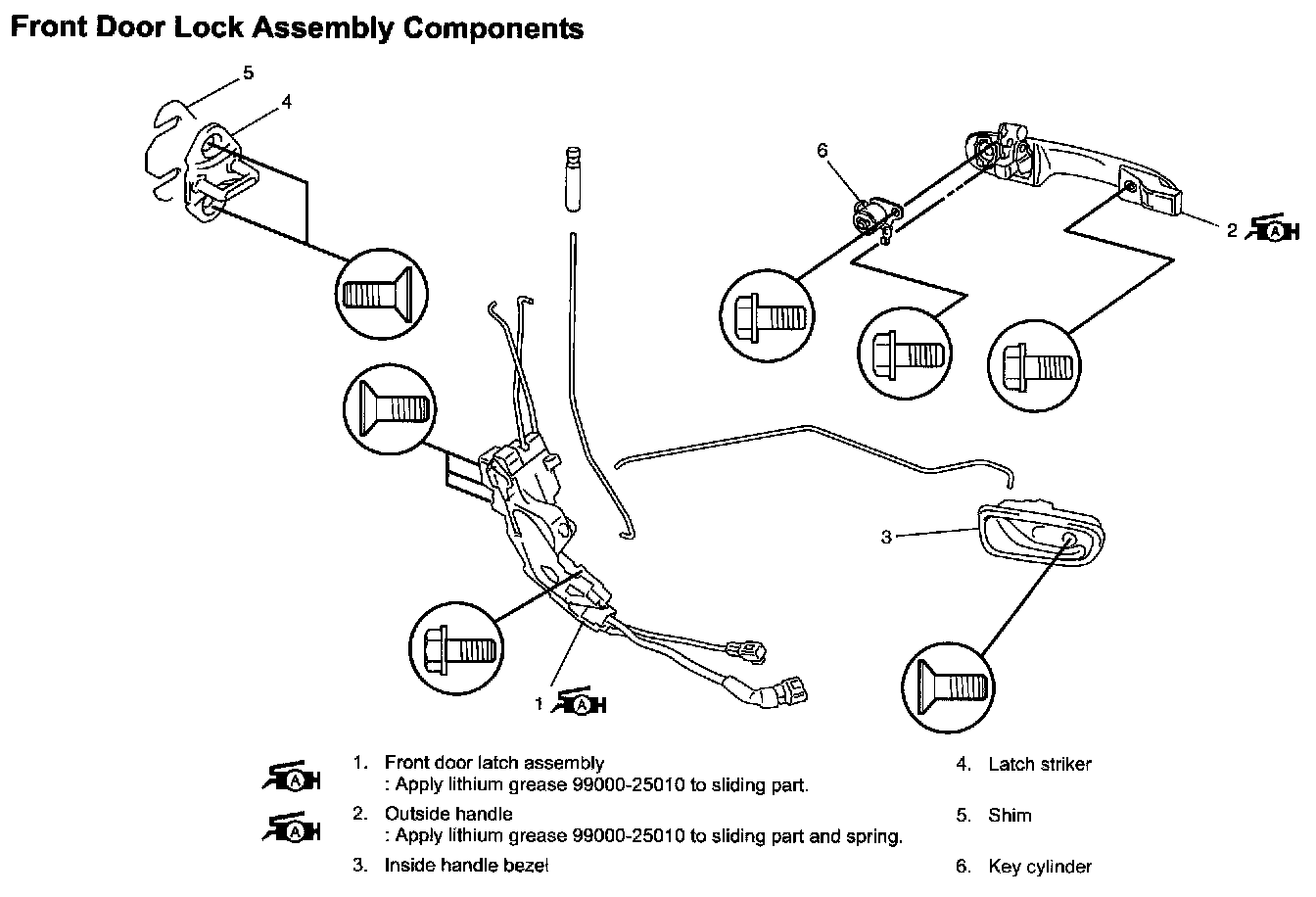

Front Door Lock Assembly Components:

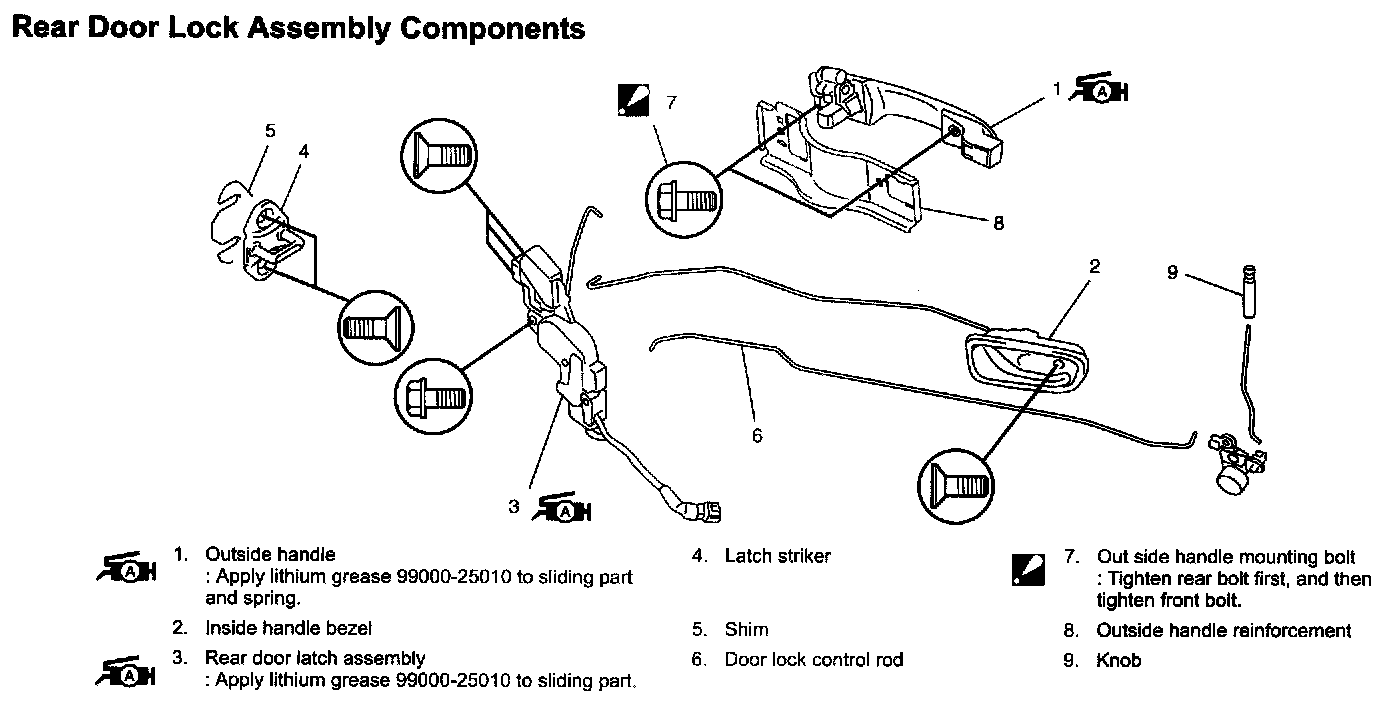

Rear Door Lock Assembly Components:
