System Diagram

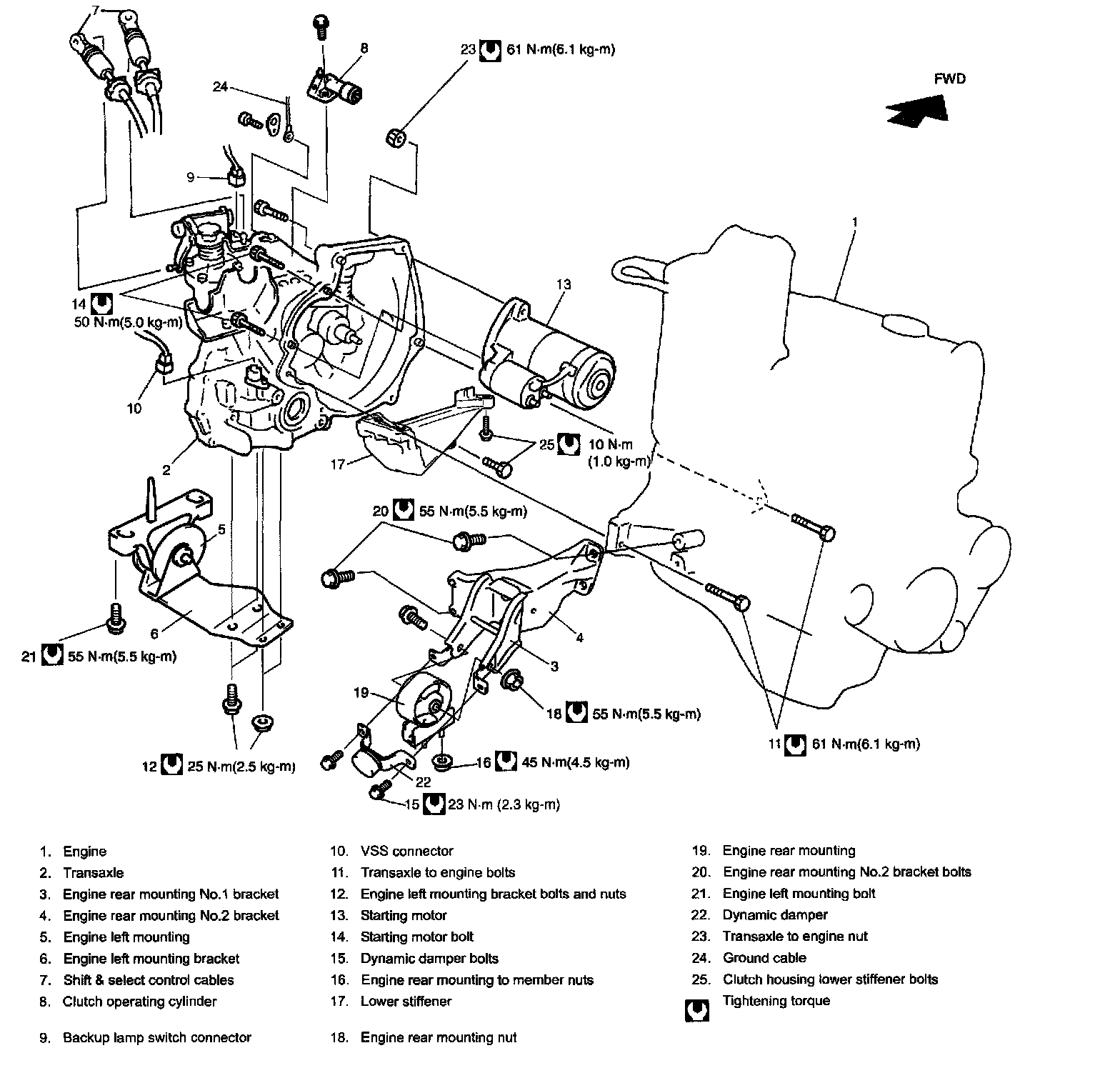

Transaxle Unit Components





Transaxle Case Components





Input and Counter Shaft Components

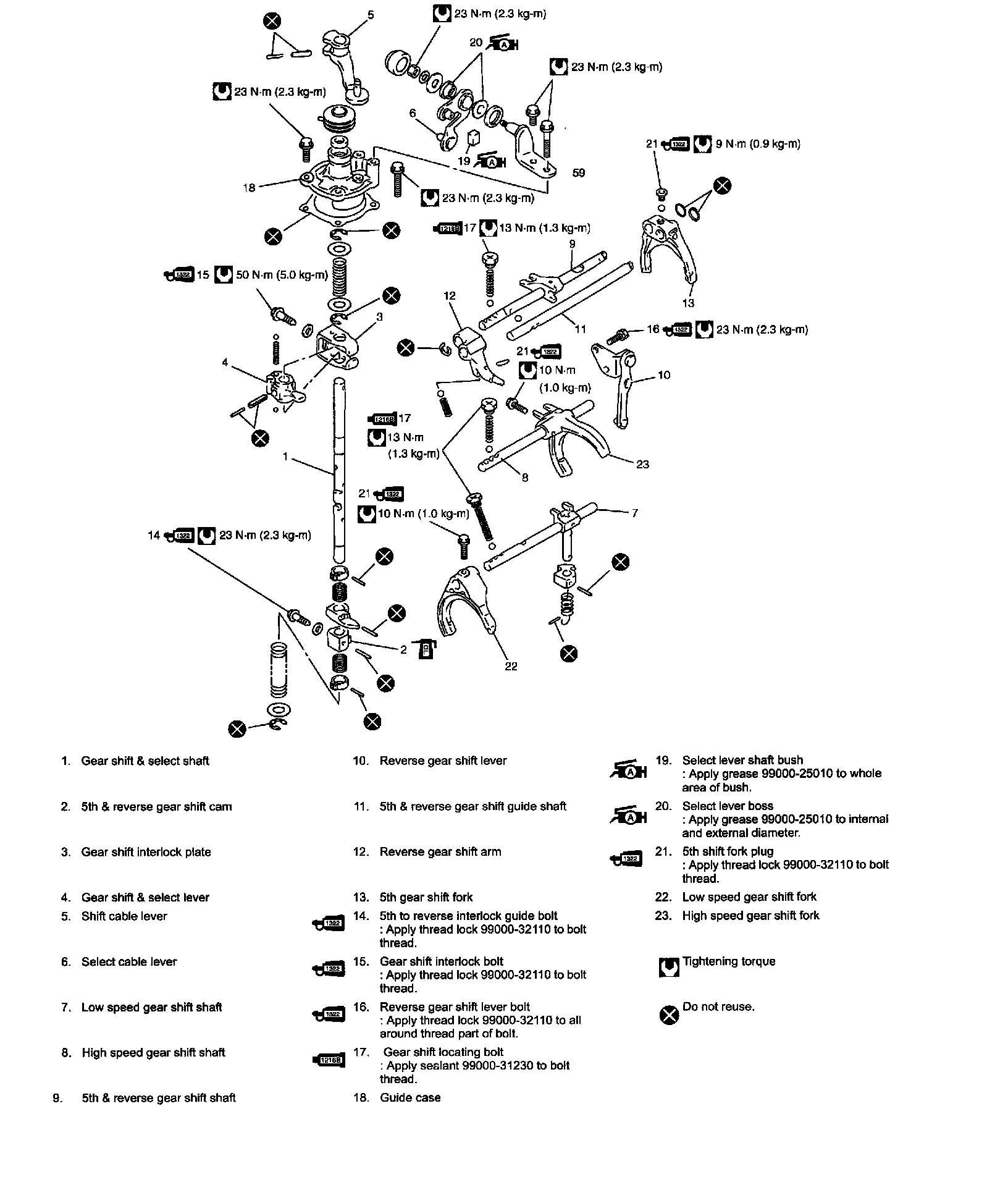

Gear Shifter Components

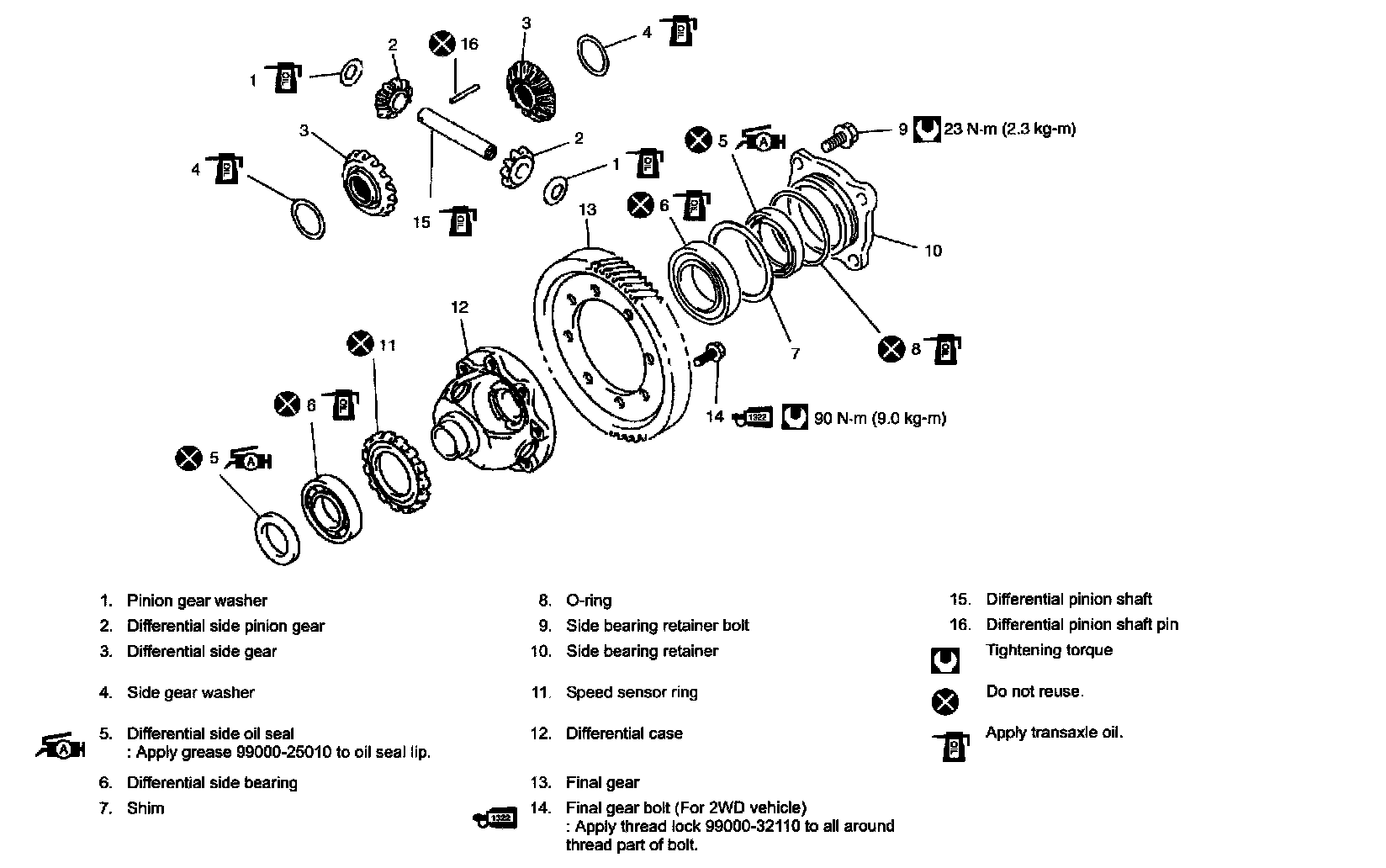

Differential Components
