Ground Locations

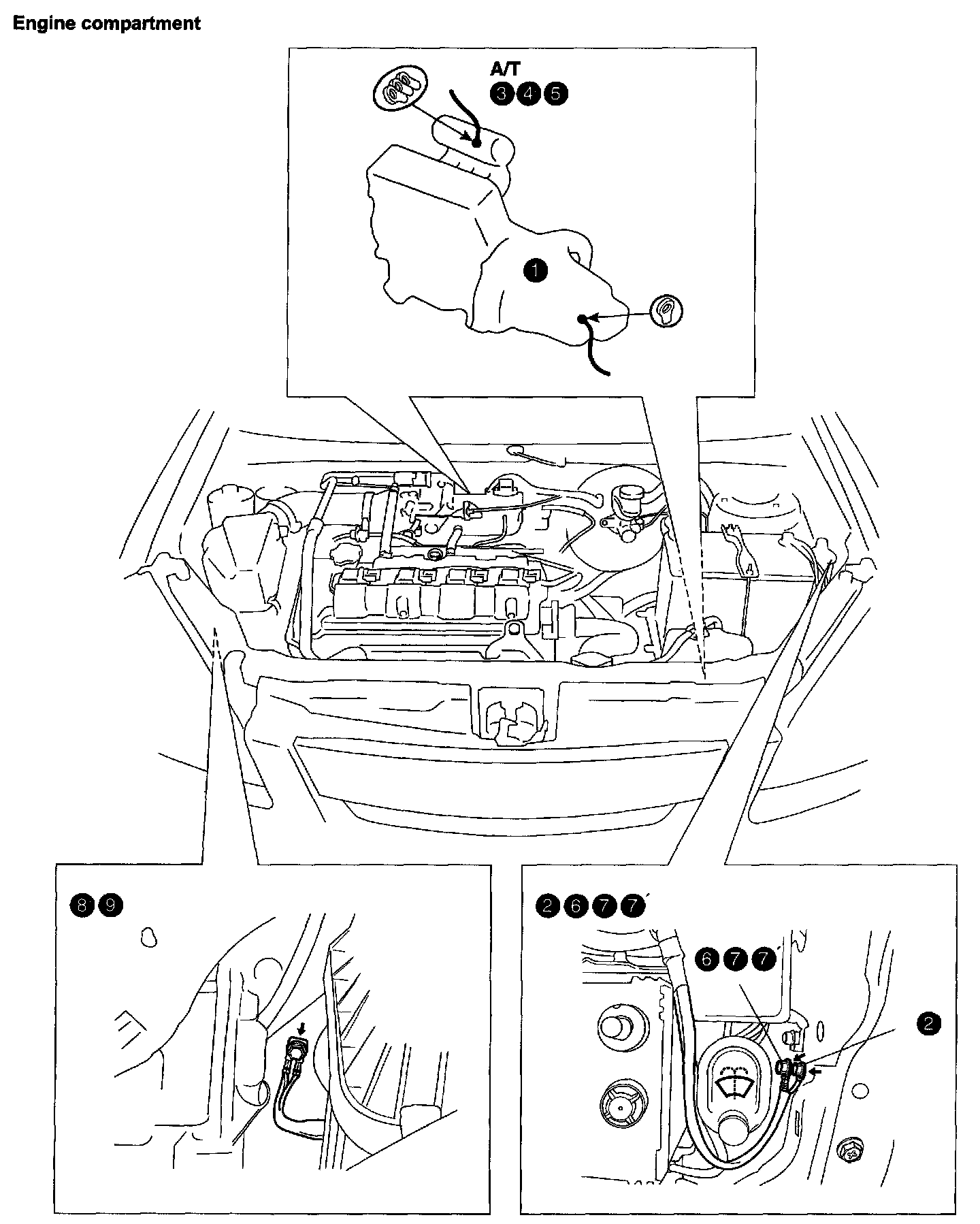

Ground (Earth) Point - Engine Compartment:

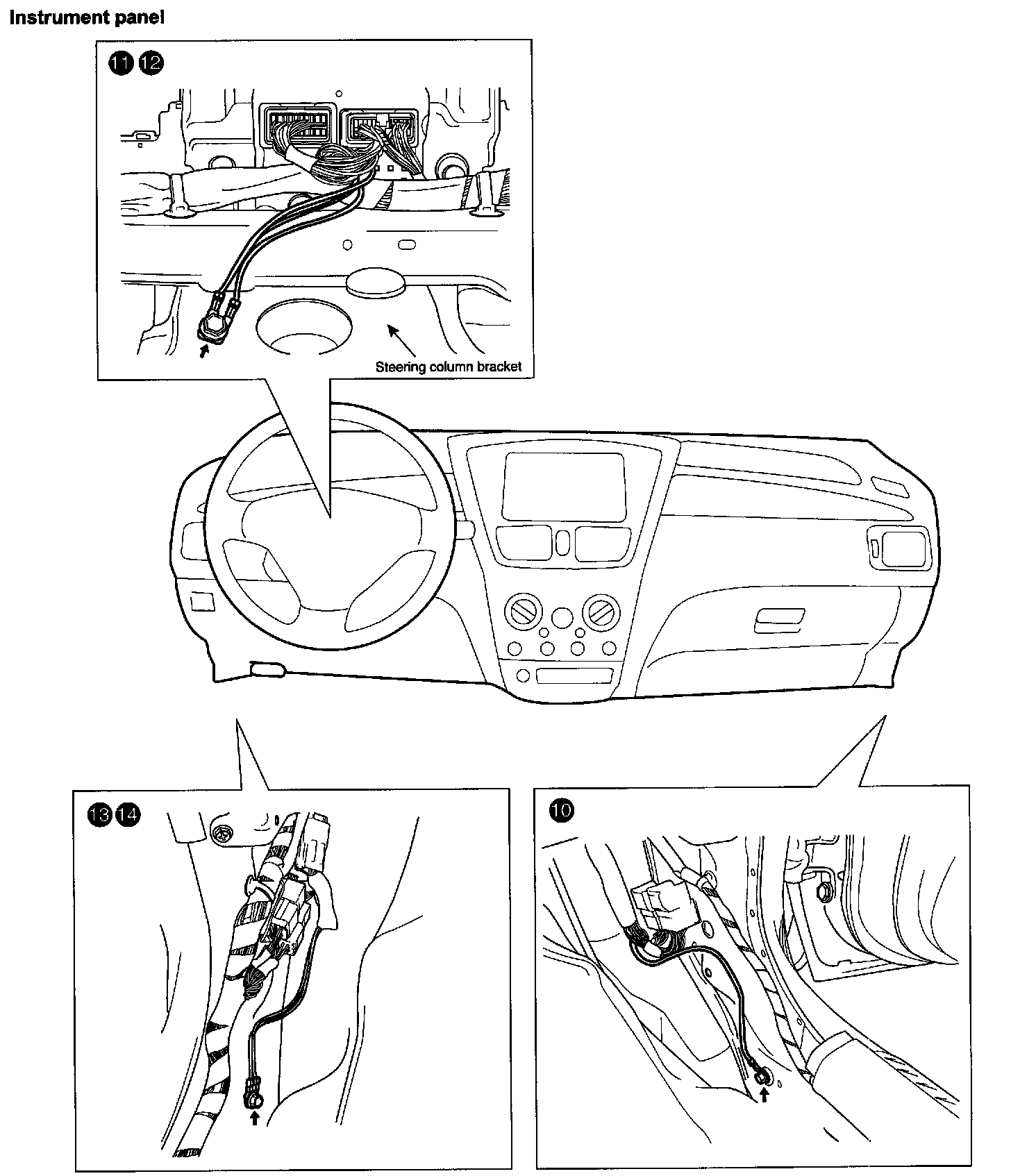

Ground (Earth) Point - Instrument Panel:

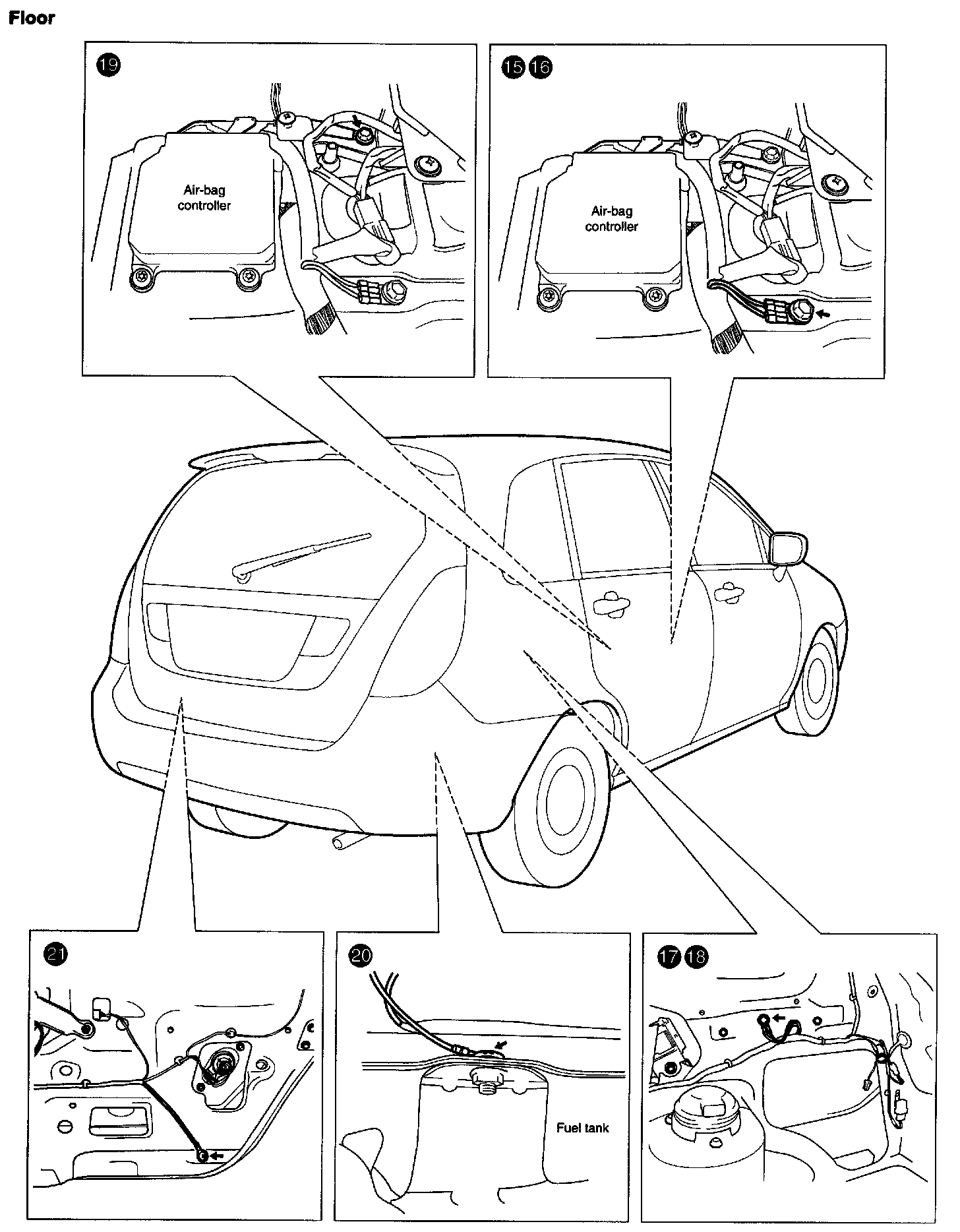

Ground (Earth) Point - Floor Part 1:

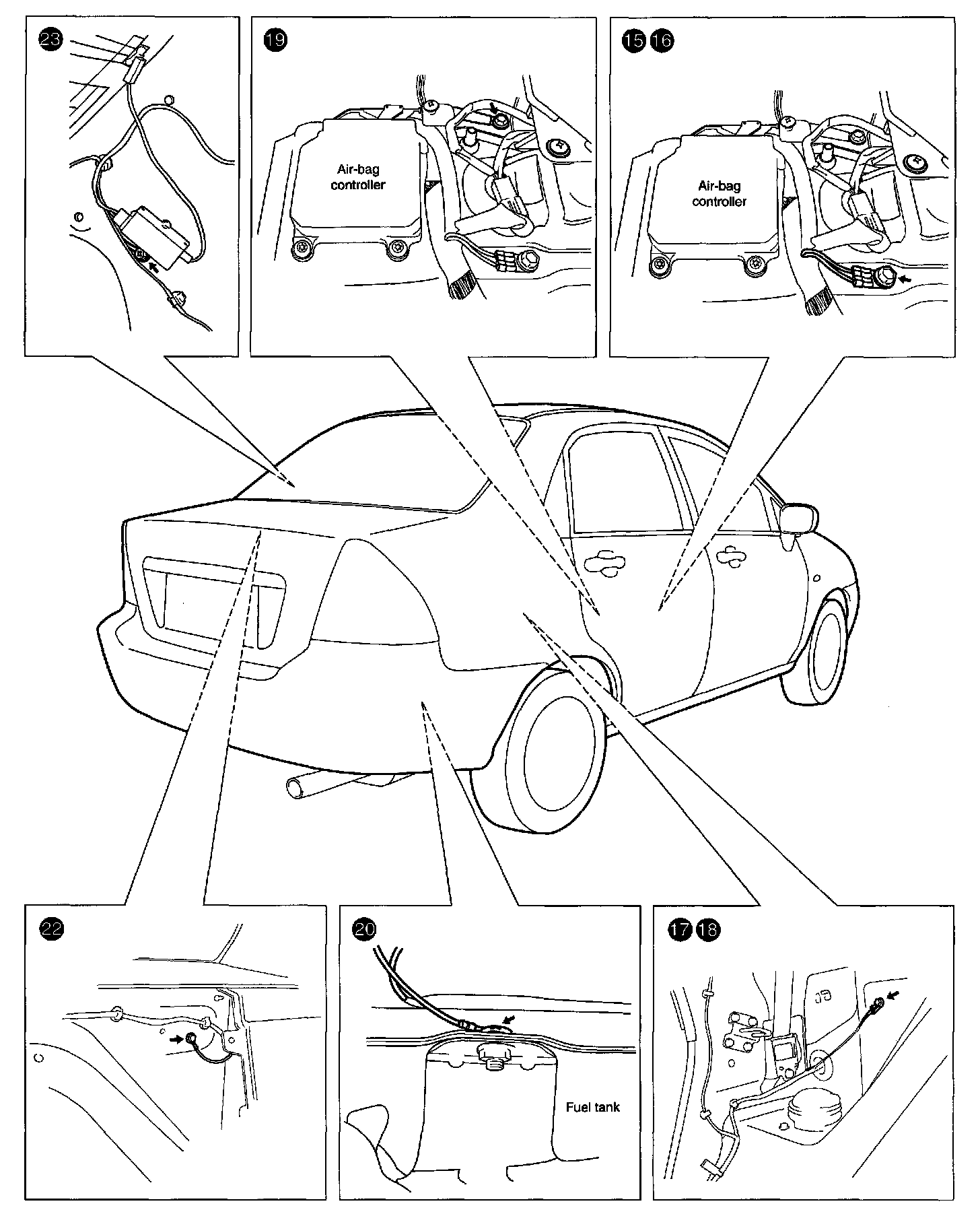

Ground (Earth) Point - Floor Part 2:
