Fail-Safe Table

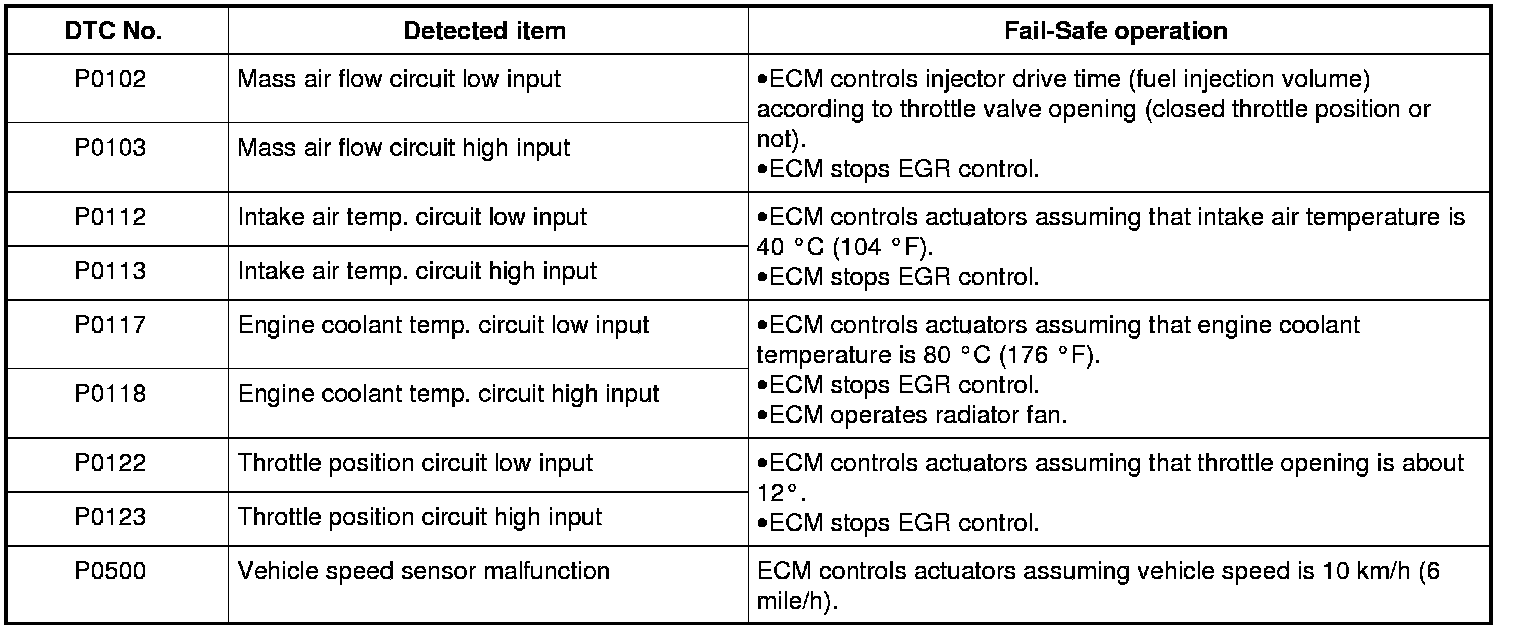

Fail-Safe Table

When any of the following DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.

P0102 P0103 P0112 P0113 P0117 P0118 P0122 P0123 P0500
