Generators & Regulators: Overhaul: Generator: Notes

Use exploded view of generator for overhaul. See Fig 1 or Fig 2 .

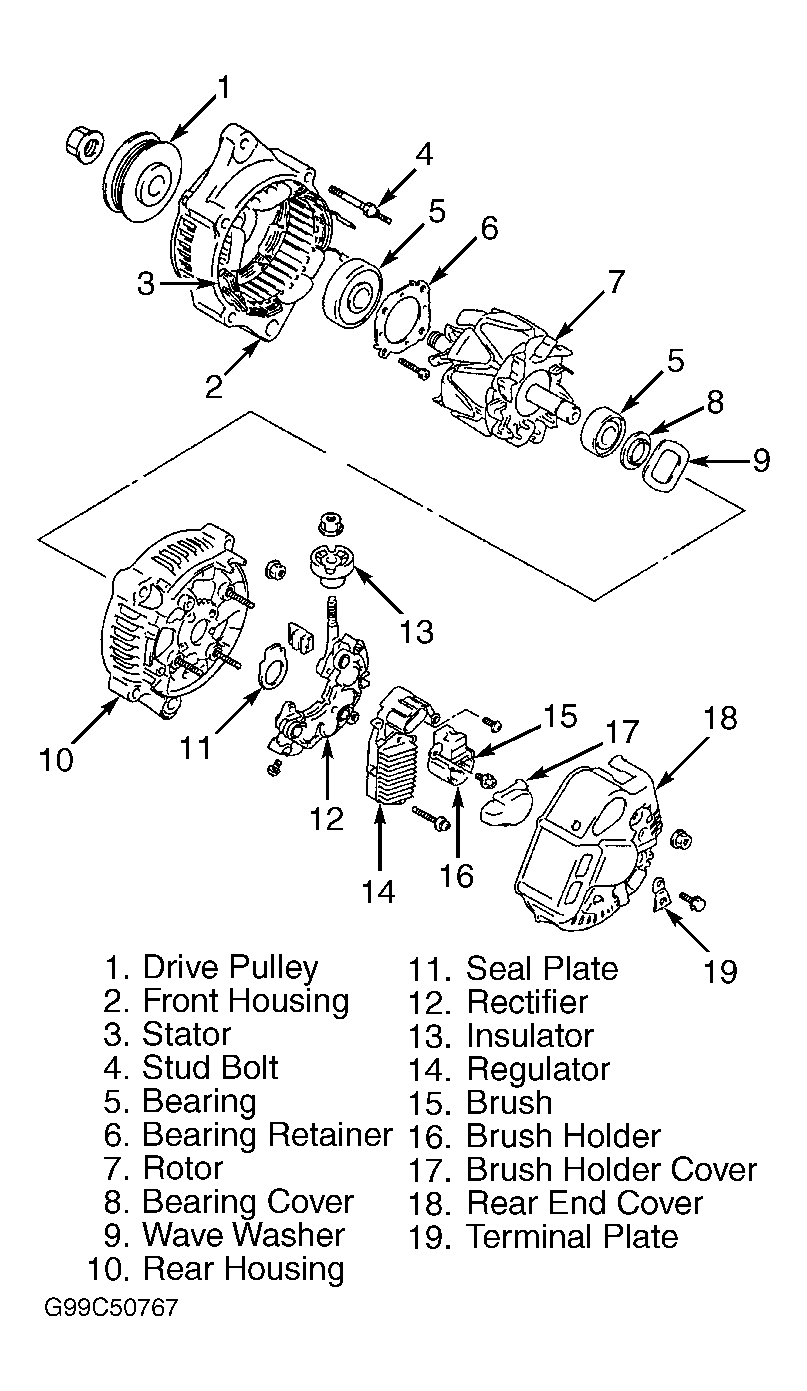

Fig 1: Exploded View Of Generator (60A/70A)

Courtesy of SUZUKI OF AMERICA CORP.

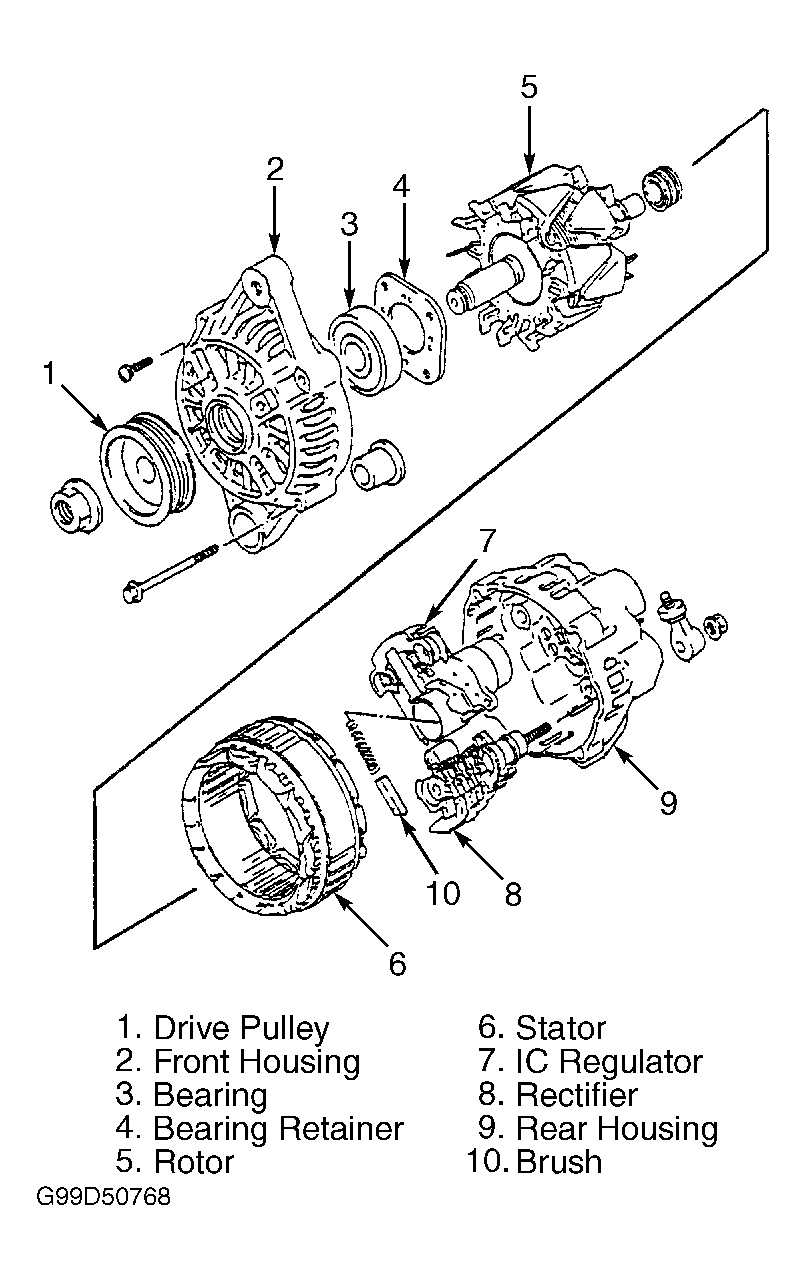

Fig 2: Exploded View Of Generator (80A/105A)

Courtesy of SUZUKI OF AMERICA CORP.
