Bench Testing: Armature

Inspect commutator for dirt or burn. See Fig 1 . Correct with sandpaper or lathe as necessary.

NOTE: The following specification presupposes that the armature is free from bend. Bent armature must be replaced.

Check commutator for uneven wear with the armature (1) supported on V-blocks (2). See Fig 2 . If deflection of dial gauge (4) pointer exceeds limit, repair or replace. See STARTER SPECIFICATIONS
Inspect the commutator for wear. See Fig 3 . If diameter is below limit, replace the armature.
Inspect the commutator (1) for insulator (2) depth. See Fig 4 . Correct or replace if it is below the service limit.

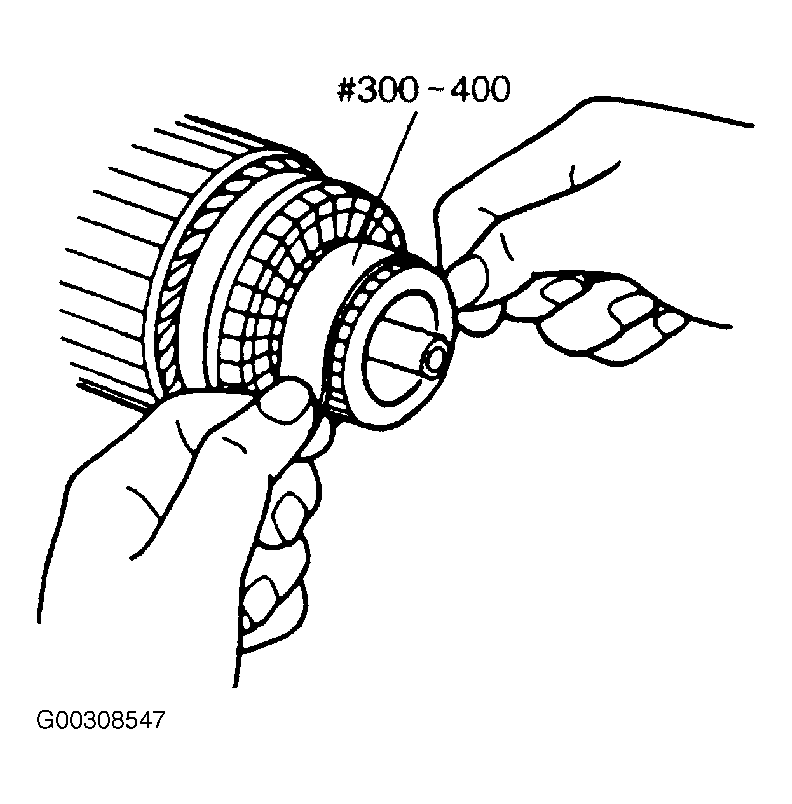

Fig 1: Inspecting Armature

Courtesy of SUZUKI OF AMERICA CORP.

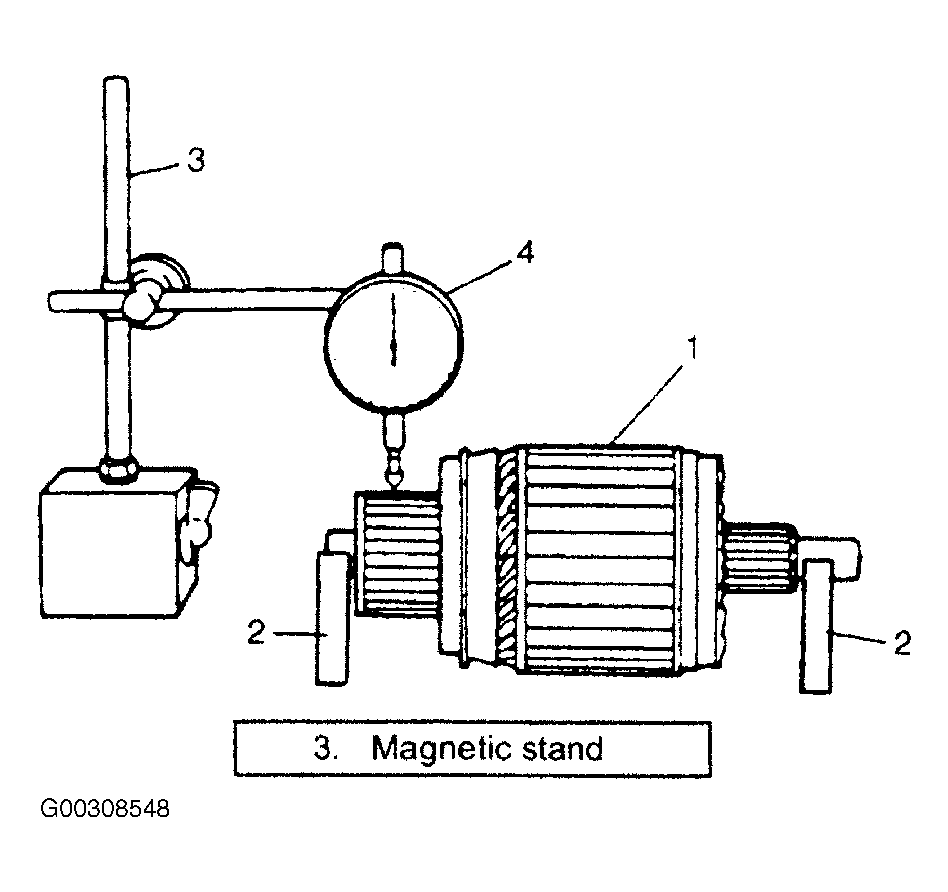

Fig 2: Checking Commutator Out Of Round

Courtesy of SUZUKI OF AMERICA CORP.

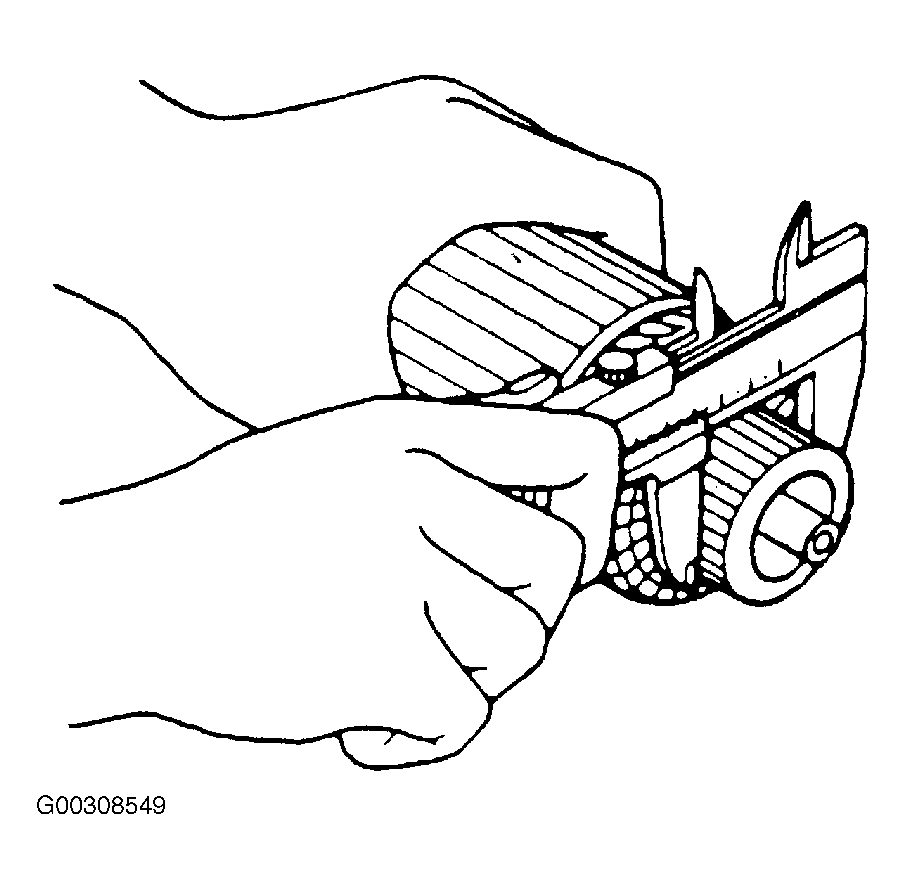

Fig 3: Inspecting Commutator Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Inspecting Insulator Depth Of Commutator

Courtesy of SUZUKI OF AMERICA CORP.
