Bench Testing: Gears

Inspect the internal gear and the planetary gears for wear, damage or other abnormal conditions. See Fig 1 . Replace if necessary.

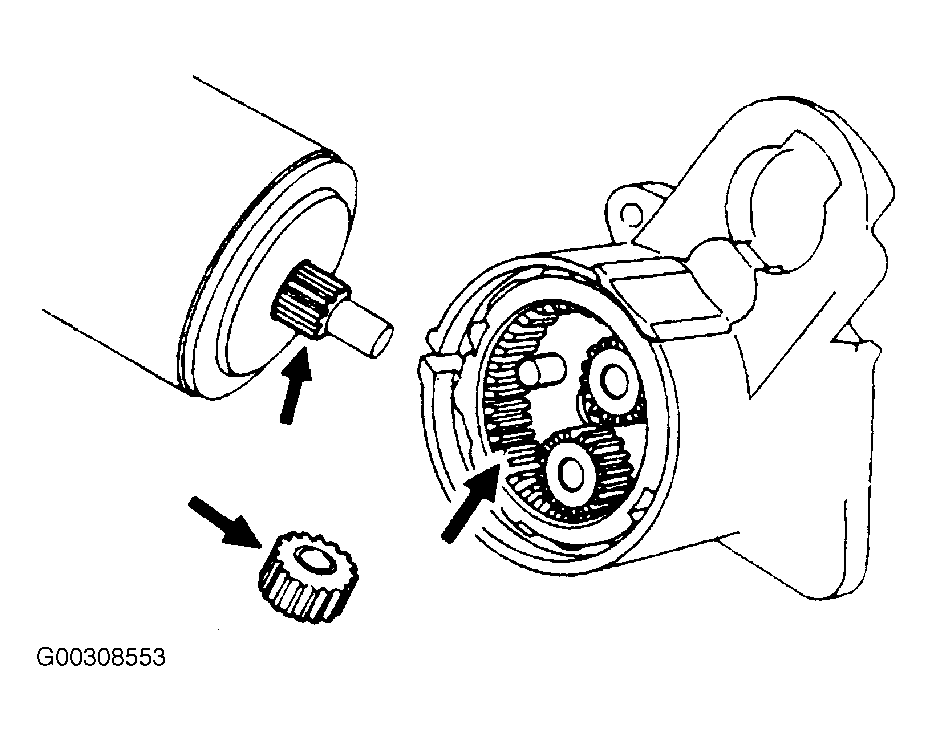

Fig 1: Inspecting Gears

Courtesy of SUZUKI OF AMERICA CORP.
