Pull-In Coil Open Circuit Test

Check for continuity across magnetic switch "S" terminal (1) and "M" terminal (2). See Fig 1 . If there is no continuity, coil is open and should be replaced.

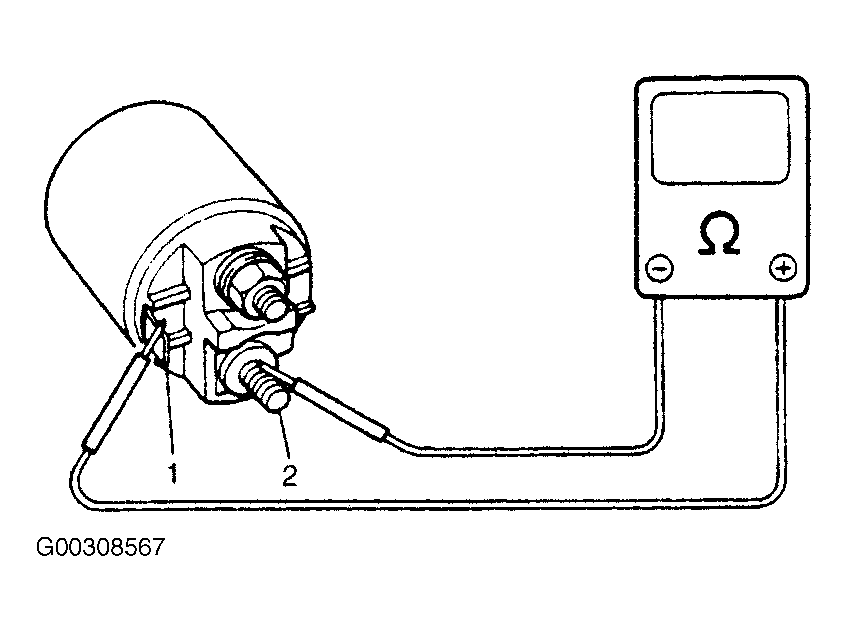

Fig 1: Identifying Pull-In Coil Open Circuit Test

Courtesy of SUZUKI OF AMERICA CORP.
