Hold-In Test

With plunger out, disconnect negative lead from terminal "M". See Fig 1 . Check that plunger and pinion remain out. If plunger and pinion return inward, replace the magnetic switch.

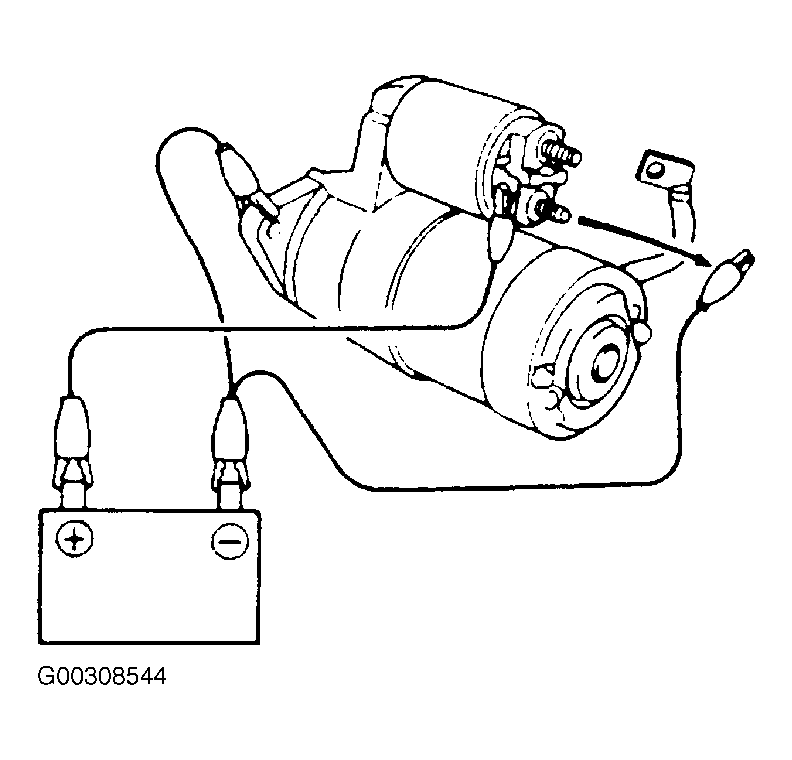

Fig 1: Performing Starter Solenoid Hold-In Test

Courtesy of SUZUKI OF AMERICA CORP.
